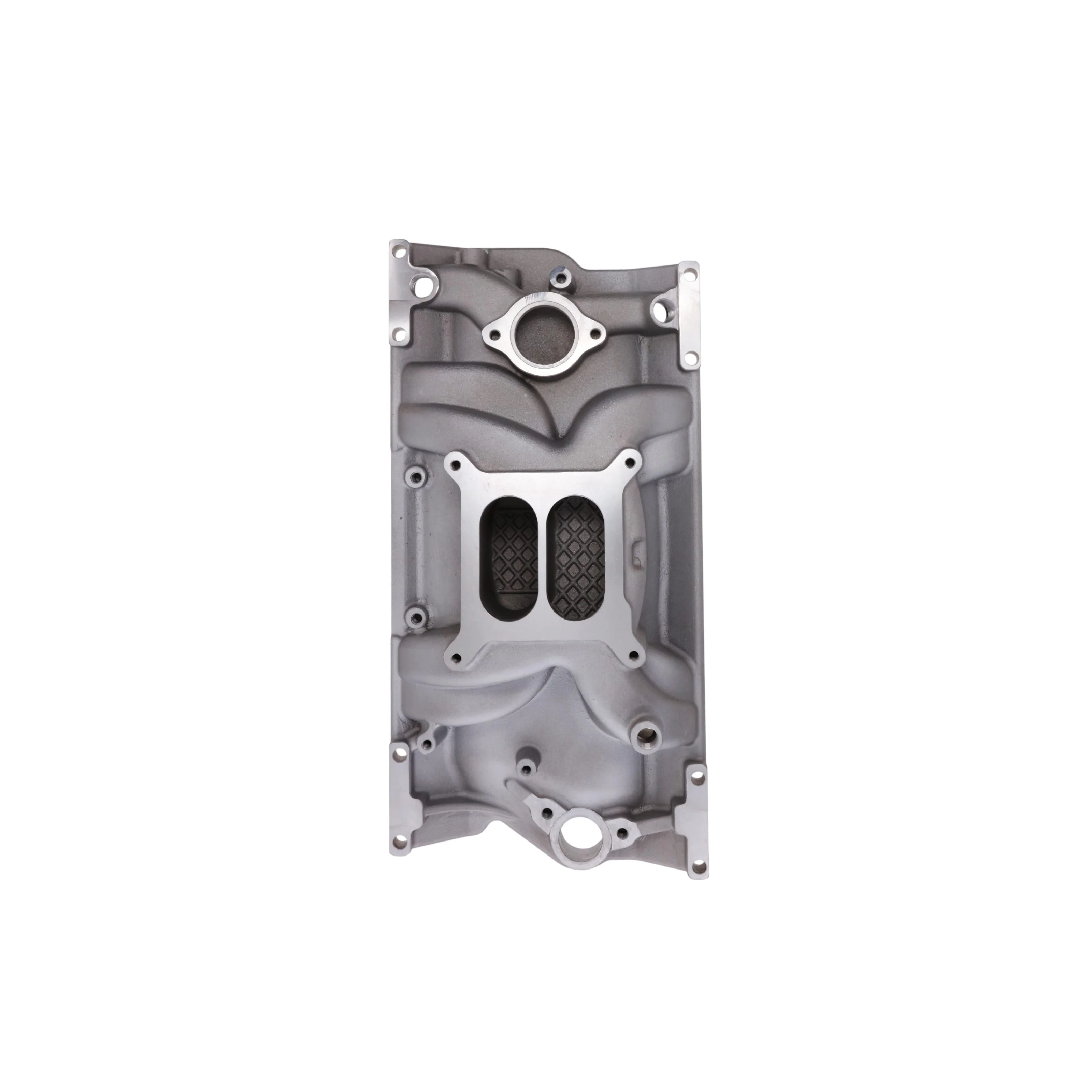

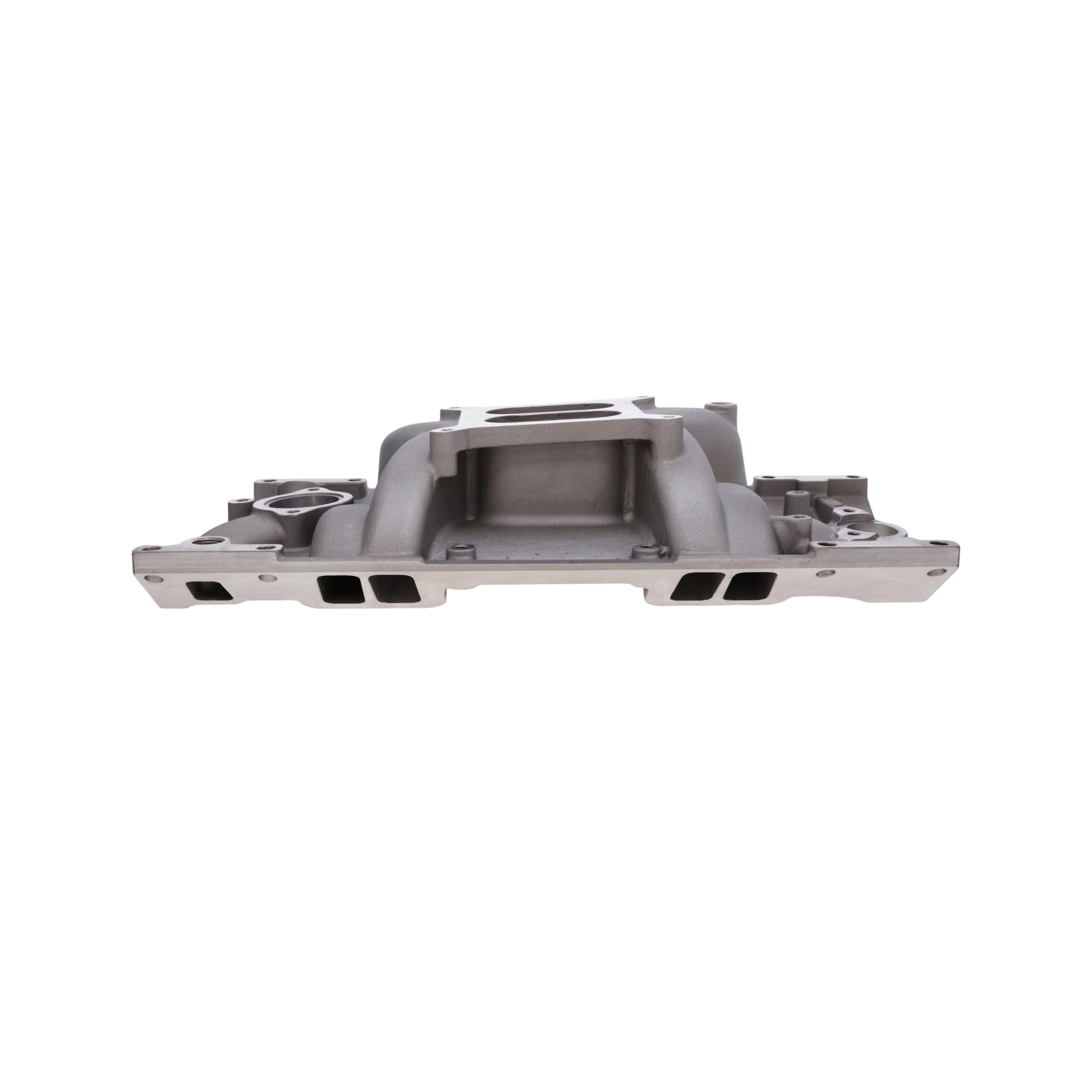

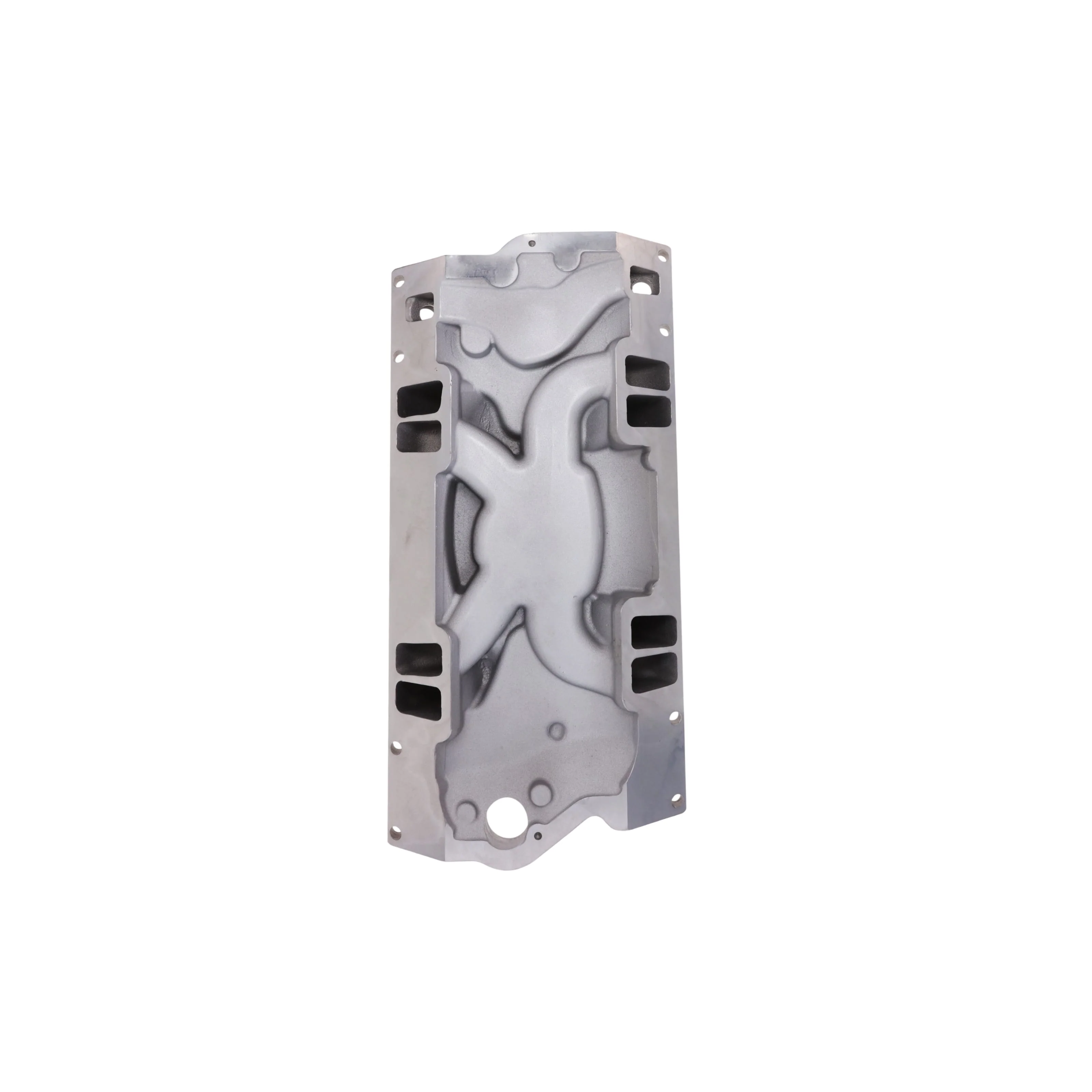

1996-2002 Chevy Small Block Vortec Aluminum Intake Manifold, Dual Plane - Satin

Efficient airflow is critical to engine performance—this 1996-2002 Chevy Small Block Vortec aluminum intake manifold, dual plane - satin is designed to improve air distribution for better horsepower and throttle response.

Engineered for performance applications, it helps maximize airflow efficiency while maintaining reliable operation under demanding conditions.

Designed for a direct-fit installation, it works with factory-style components, making it an ideal upgrade for both street and performance builds.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in3
• 5.7 L / 350 in3

NOTES:
Fits 1996-2002 Chevy small block Vortec engines.
As Vortec blocks do not have a water bypass, manifold is equipped with a provision to connect it to stock a water pump using a 5/8" heater hose.

Specifications:
Basic Operating RPM Range: 1,500-6,700 RPM
Carburetor Quantity: 1
CNC Ported: No
Color: Satin
Deck Height: Standard
EGR: No
Intake Manifold Height: 4.730 in.
Fuel System Type: Carbureted
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Shape: Oval
Material: Aluminum
Single Or Dual Plane Type: Dual Plane
