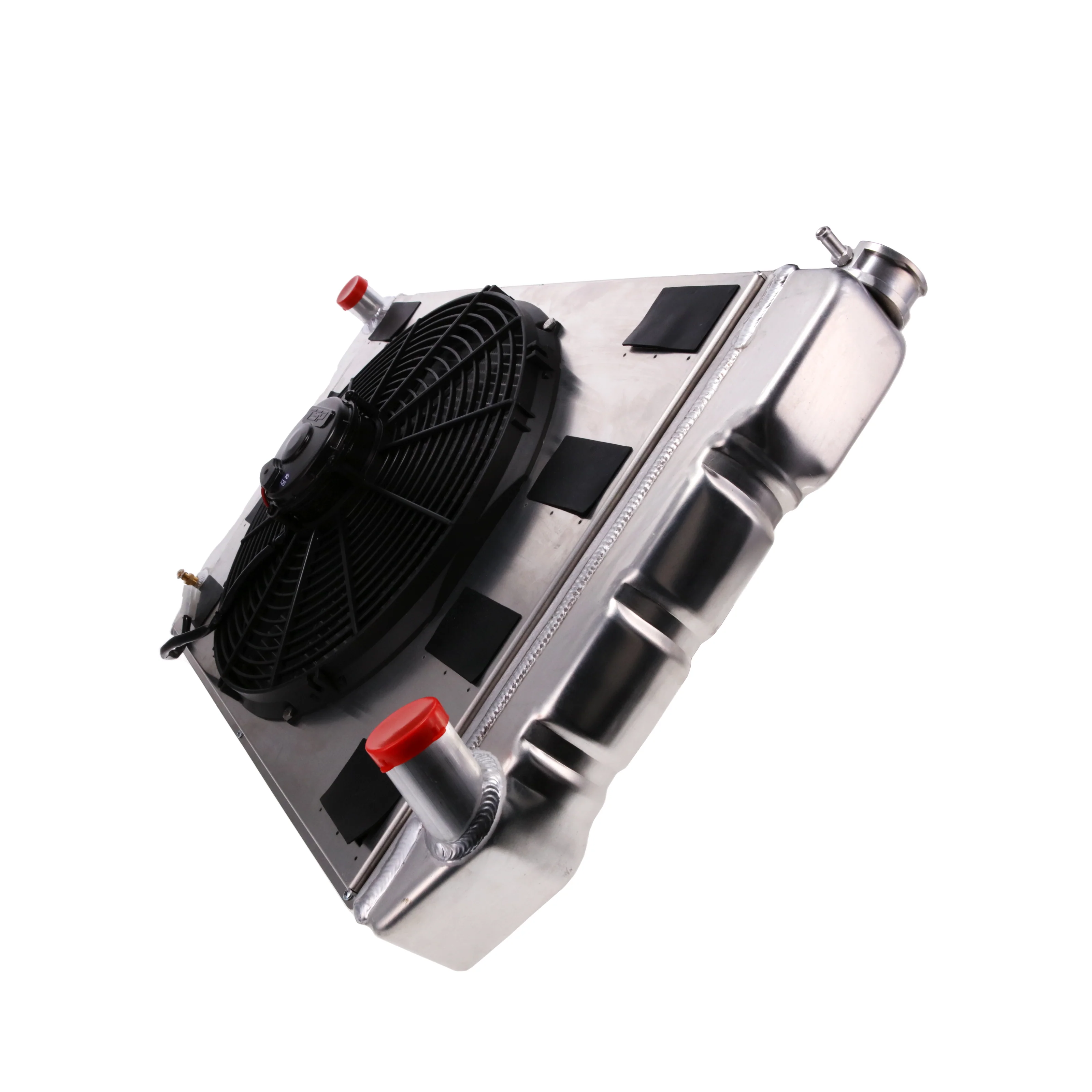

29" Universal Chevy Single Fan Pro Flow Radiator Kit

This 29" Universal Chevy Single Fan Pro Flow Radiator Kit combines a universal Chevy-style aluminum radiator with airflow components for a more complete cooling system upgrade. It is designed for builds that need improved heat transfer with single electric fan support, and clean fitment verification using the listed core dimensions and specifications.

High Efficiency Cooling Package
The aluminum radiator core and fan configuration work together to move heat away from the coolant and pull airflow through the core. The electric fan setup helps support cooling at idle and low vehicle speeds.

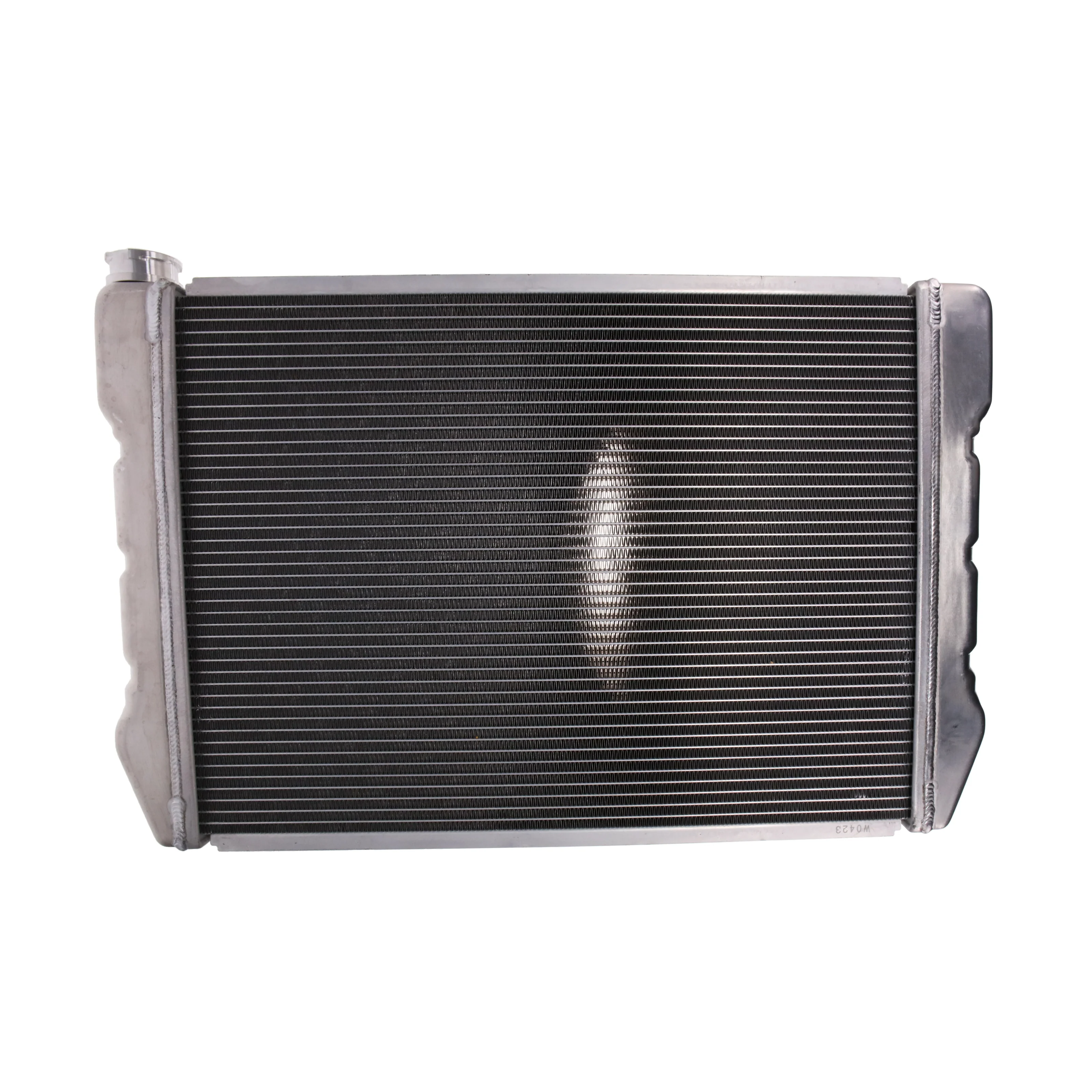

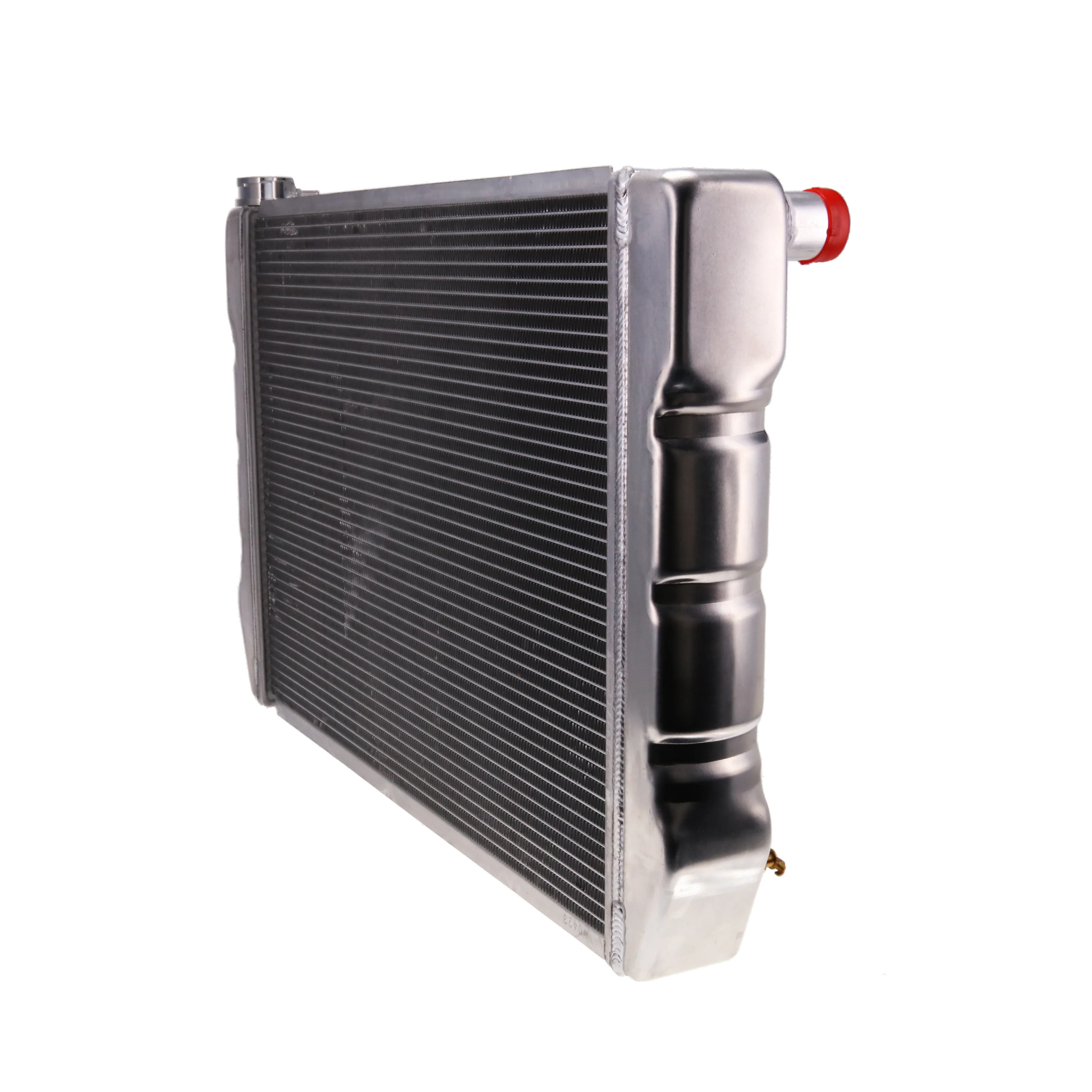

Aluminum Radiator Construction
2 core rows and Aluminum construction provide strength, corrosion resistance, and dependable cooling performance for custom street and performance applications.

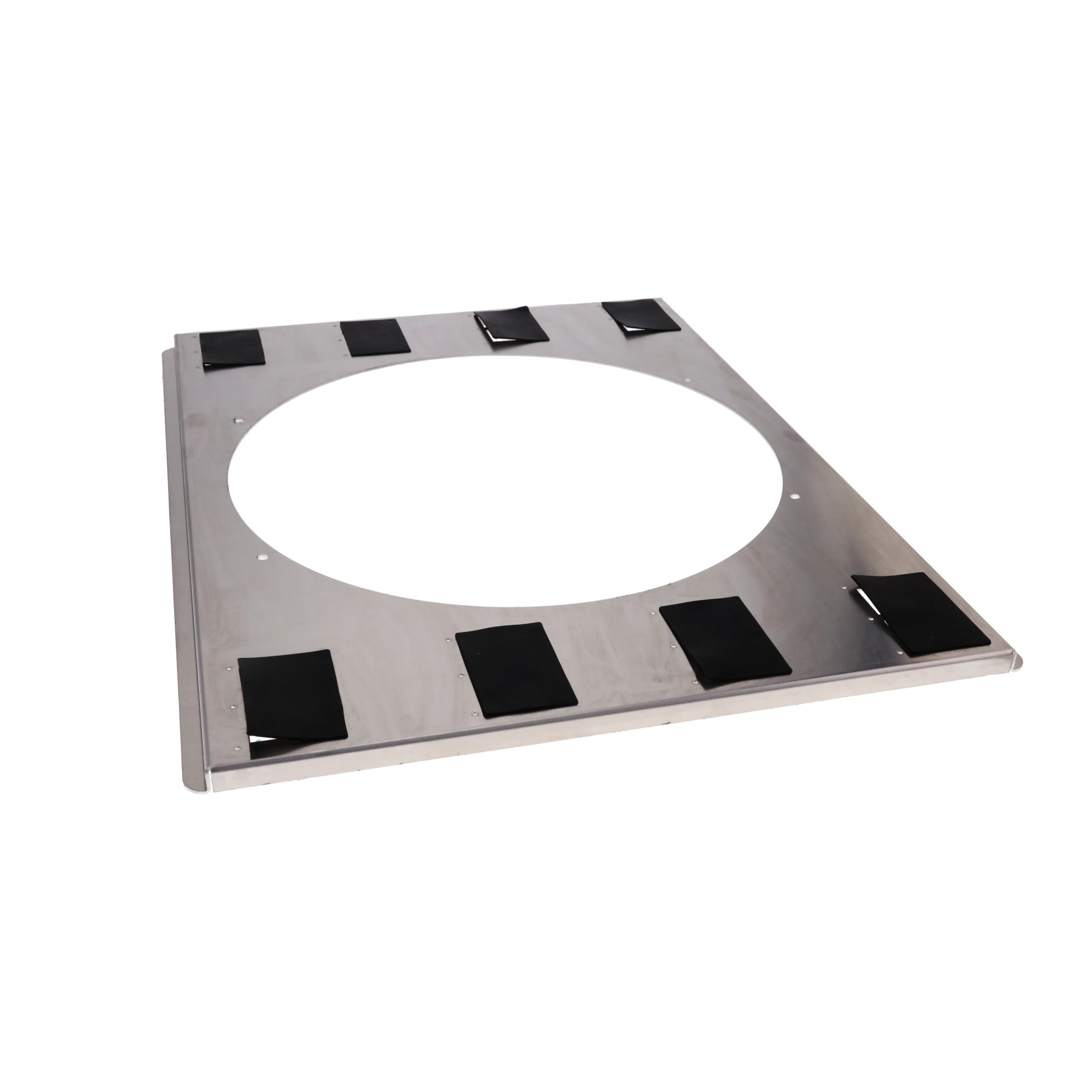

Fan & Shroud Configuration
This kit is configured for electric fan cooling with a listed amperage draw of 14.00 A. Verify available clearance between the radiator, engine accessories, and core support before installation.

Chevy-Style Hose Routing
The inlet and outlet layout is intended for Chevy-style cooling configurations, helping simplify hose routing when the core size and connection locations match the vehicle.

Universal Installation
The universal layout is best suited for custom radiator mounts, swaps, and performance cooling upgrades where the radiator width, height, thickness, and fan clearance can be confirmed before installation.

COMPATIBLE WITH

• Universal Chevy-style cooling systems
• Inlet and outlet locations intended for Chevy engine configuration

COMMON VEHICLE APPLICATIONS

• Street performance vehicles
• Classic cars and hot rods
• Trucks and SUVs with upgraded cooling systems
• Custom radiator conversions

Specifications:
Amperage Draw: 14.00 A
Blade Color: Black
Blade Color: Black
Blade Material: Plastic
Blade Type: Straight
Connector Gender: Female
Connector Quantity: 1
Core Fin Quantity: 17 per sq. in.
Core Height: 19.000 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.250 in.
Core Tube Inside Diameter: 1.000 in.
Core Width: 24.250 in.
Down Flow Or Cross Flow Type: Cross Flow
Electrical Or Mechanical Fan: Electrical
Engine Oil Cooler Included: No
Fan 1 Blade Quantity: 10
Fan 1 Diameter: 16.000 in.
Fan Clutch Mounted: No
Fan Housing Finish: Black
Fan Quantity: 1
Frame Included: No
Grade Type: Performance
Inlet Diameter: 1.500 in.
Inlet Location: Upper Driver Side
Maximum Air Flow: 2000 cfm
Mounting Hardware Included: No
Outlet Diameter: 1.750 in.
Outlet Location: Lower Passenger Side
Overall Depth: 6.250 in.
Overall Height: 19.250 in.
Overall Width: 29.000 in.
Petcock Included: Yes
Radiator Cap Included: No
Shroud Color: Silver
Shroud Included: Yes
Shroud Material: Aluminum
Tank Material: Aluminum
Thermostat Included: No
Transmission Oil Cooler Included: No
Voltage: 12 V
