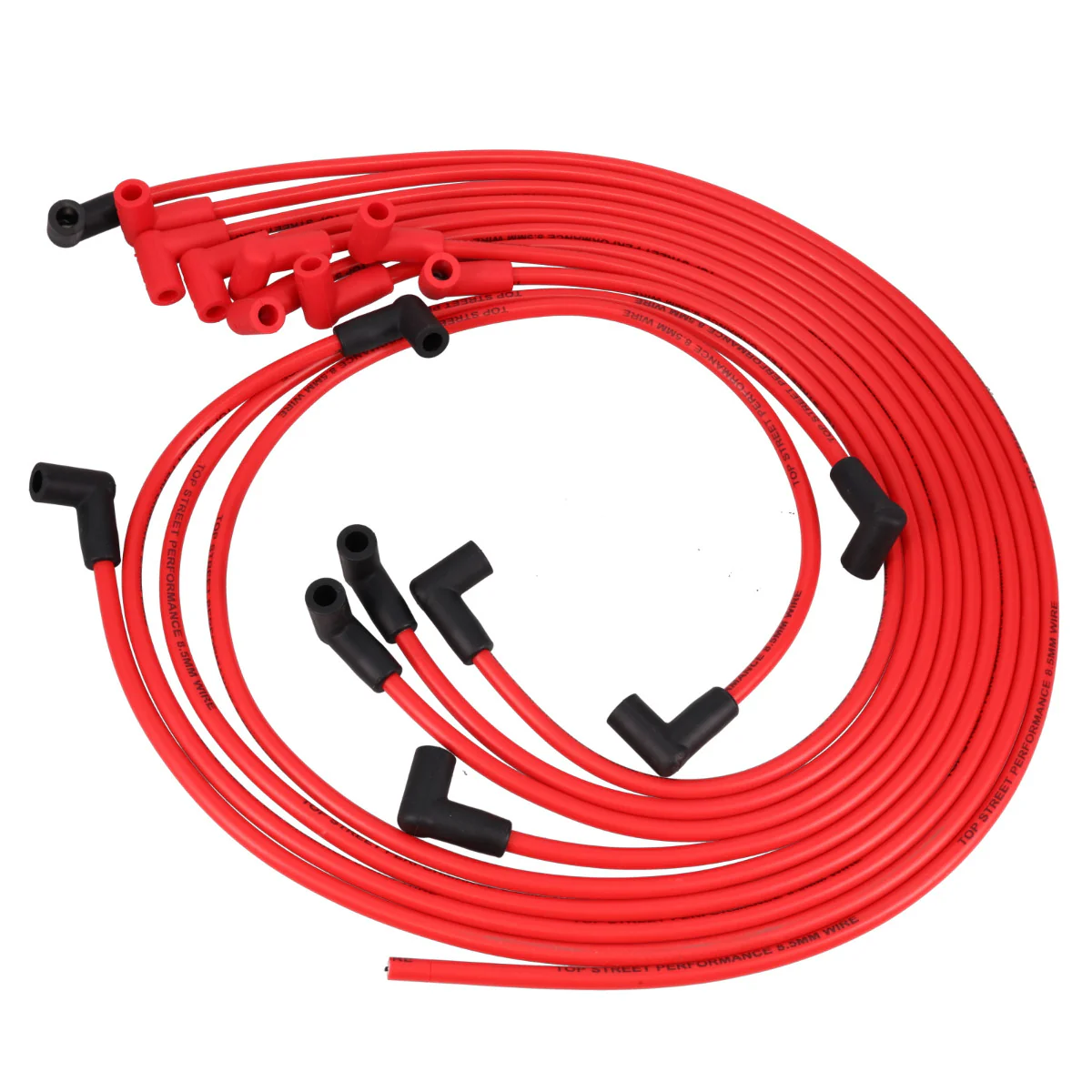

8.5mm Chevy Small Block Under Header Spark Plug Wire Set with 90° Plug Boots - Red

TSP’s premium under-header Chevy small block ignition wires are designed for superior performance and durability. A spiral-wound Kevlar® core suppresses RFI (radio-frequency interference) and features 500 ohm per foot resistance for excellent performance. Around the core is a fiberglass braid which provides superior pull strength. The outer jacket is composed of premium high-density silicone rated at 450° F and features a quality gloss finish to resist damage from water and chemicals. This set is ready for install on a small block Chevy.

Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3

NOTE: Wire lengths are ideal for routing under headers

Specifications:
Boot Type: 90°
Coil End Boot Color: Black
Core Material: Spiral Wound
Distributor End Boot Degree: 90°
Distributor End Boot Type: Female
Distributor Terminal Type: Male
Ignition Coil End Boot Degree: 90°
Ignition Coil End Boot Type: Male or Female
Ignition Coil Terminal Type: Male or Female
Insulation Color: Red
Insulation Material: High-density Silicone
Noise Suppression Type: Radio Frequency Interference
Outside Diameter: 8.5 mm
Quantity: Full Set of 9 Plug Wires
Resistance: 500 Ohms
Spark Plug Boot Material: Silicone
Spark Plug End Boot Color: Red
Spark Plug End Boot Degree: 90°
Spark Plug End Boot Quantity (Straight): 8
Universal or Specific Fit: Universal
Wire 1 Length: 57.00 in.
Wire 2 Length: 57.00 in.
Wire 3 Length: 49.00 in.
Wire 4 Length: 45.00 in.
Wire 5 Length: 29.00 in.
Wire 6 Length: 29.00 in.
Wire 7 Length: 27.00 in.
Wire 8 Length: 23.00 in.
Wire 9 Length: 36.00 in.
Wire Separators Included: Yes
