Chevy Big Block Pulley Serpentine System for AC and Power Steering
Long Water Pump (LWP)

(396 - 427 - 454 CID) | 8 Rib Serpentine | Polished Finish

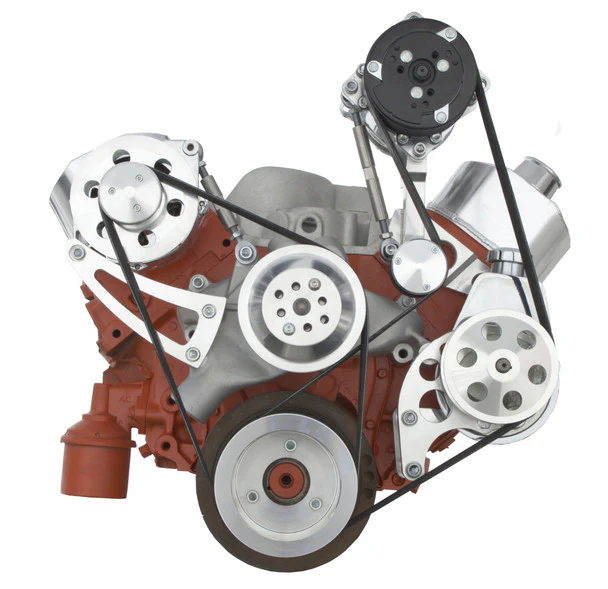

The BEAST™ 8 Track Serpentine System for Big Block Chevy engines with Power Steering and Air Conditioning. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts Sanden AC Compressor on the driver's side by the valve cover. Uses standard Chevy long water pump.

KIT INCLUDES:

• 1 Belt Water Pump Pulley
• 2 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Power Steering Pulley (Keyway Style)
• Passenger Side Alternator Bracket- High Mount
• Driver Side Power Steering Bracket
• Driver Side AC Compressor Bracket
• Idler Pulley
• ALTFAN - Universal alternator fan

NOTE: REQUIRES THERMOSTAT HOUSING THAT POINTS TOWARDS RADIATOR OR PASSENGER SIDE. BELTS, AC COMPRESSOR, POWER STEERING PUMP, ALTERNATOR AND WATER PUMP NOT INCLUDED. REQUIRES KEYWAY SHAFT ON SAGINAW P SERIES PUMP.

Compatible with:
Chevy Big Block with AC and Power Steering - Long Water Pump
• 6.5L / 396 in³
• 7.0L / 427 in³
• 7.4L / 454 in³

Product Type	Beast - Serpentine Conversion
Alternator Position	High - Passenger
Power Steering	Yes - Saginaw
Air Conditioning	High - Driver
Compressor Type	Sanden 508
Finish	Polished
Belt Type	Serpentine 8 Rib
Water Pump Type	Mechanical
Water Pump	Long
Water Pump Rotation	Standard
Make	Chevy
Engine	454 Big Block
