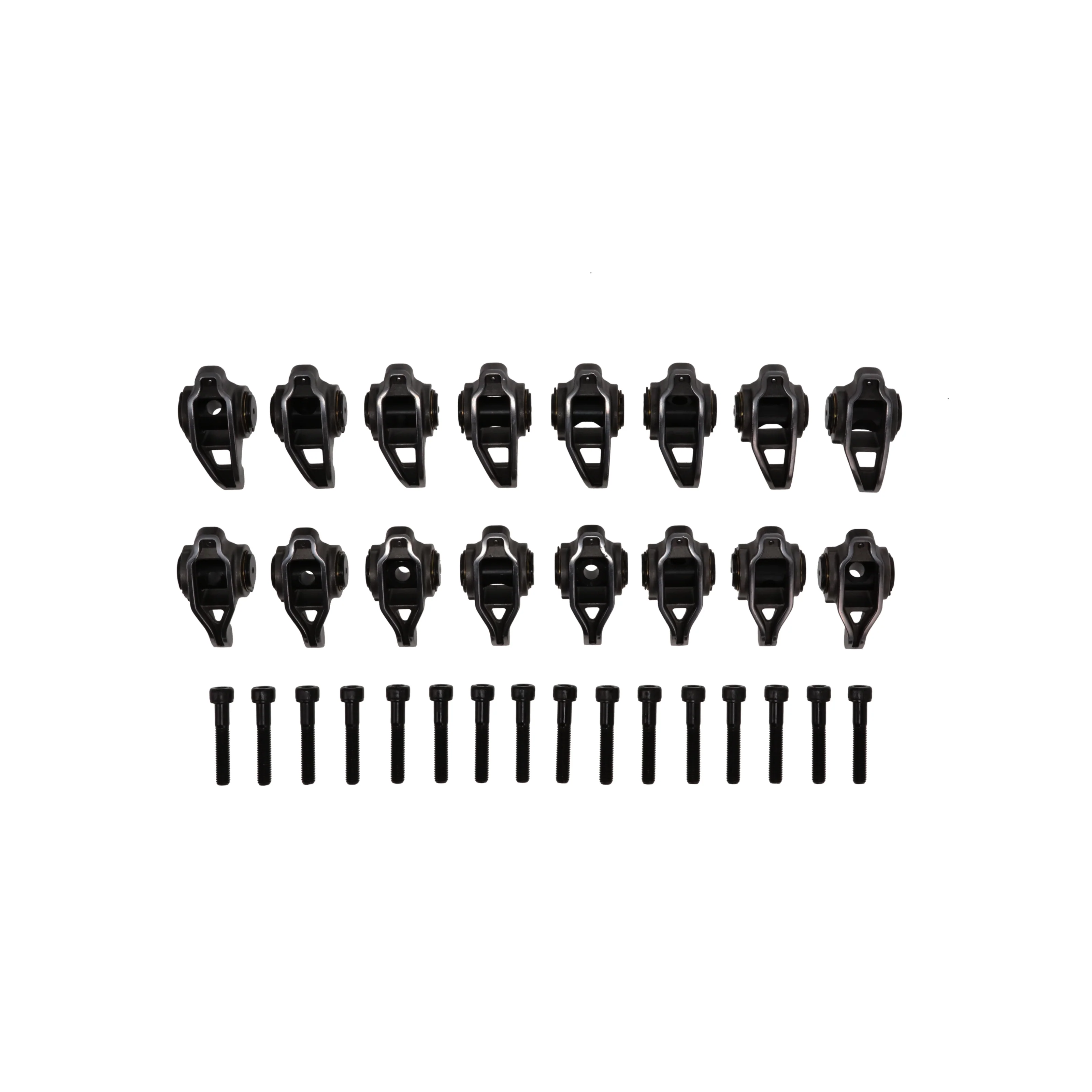

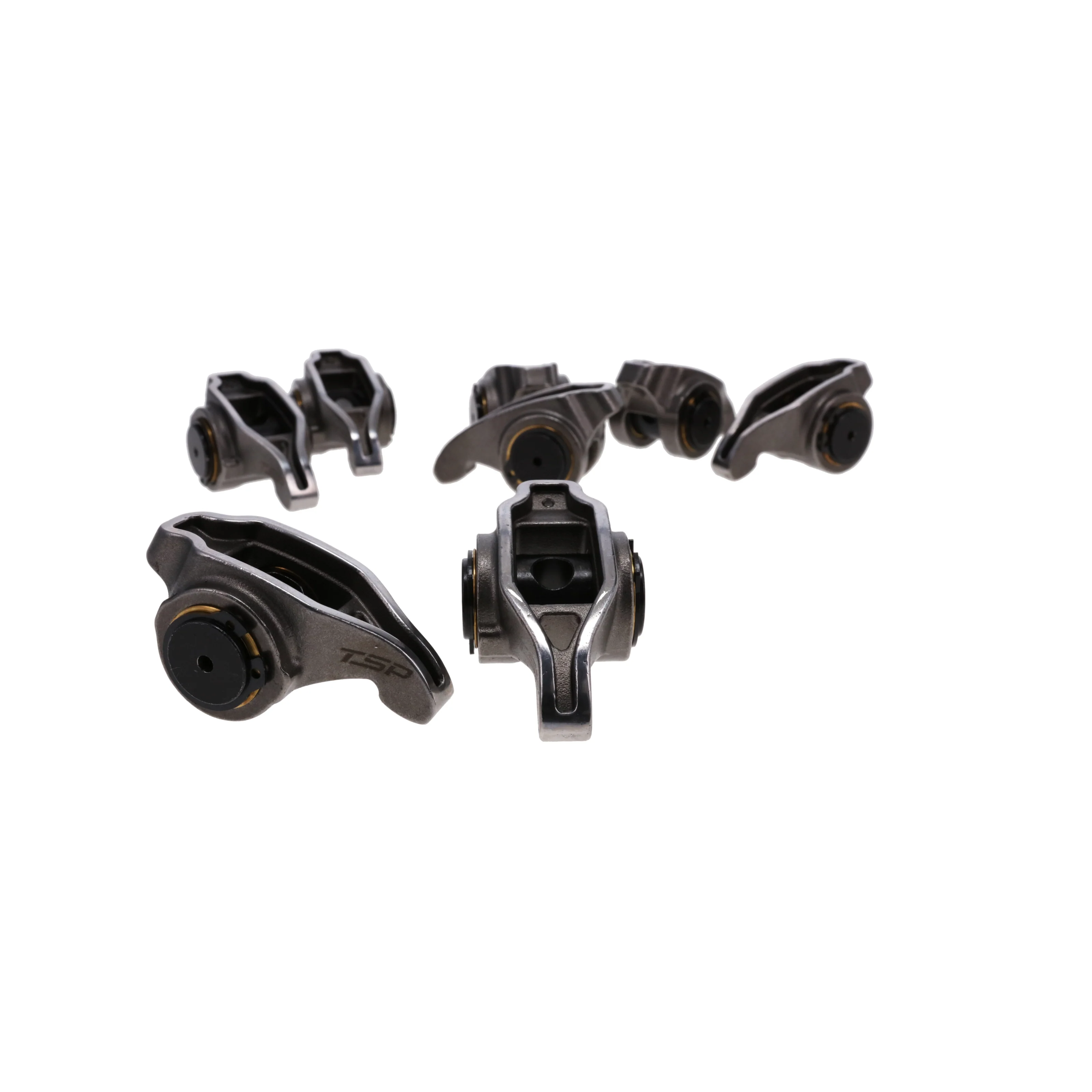

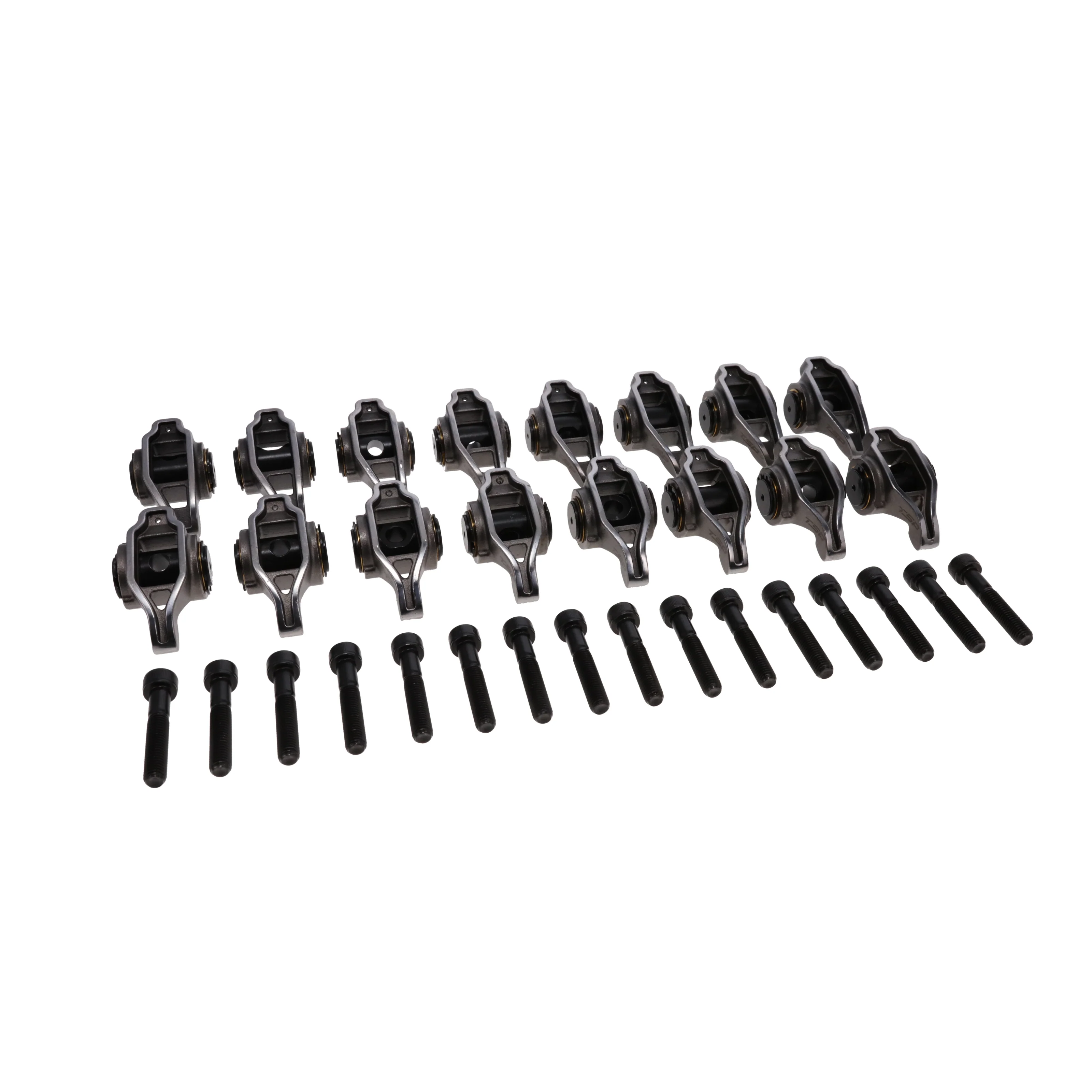

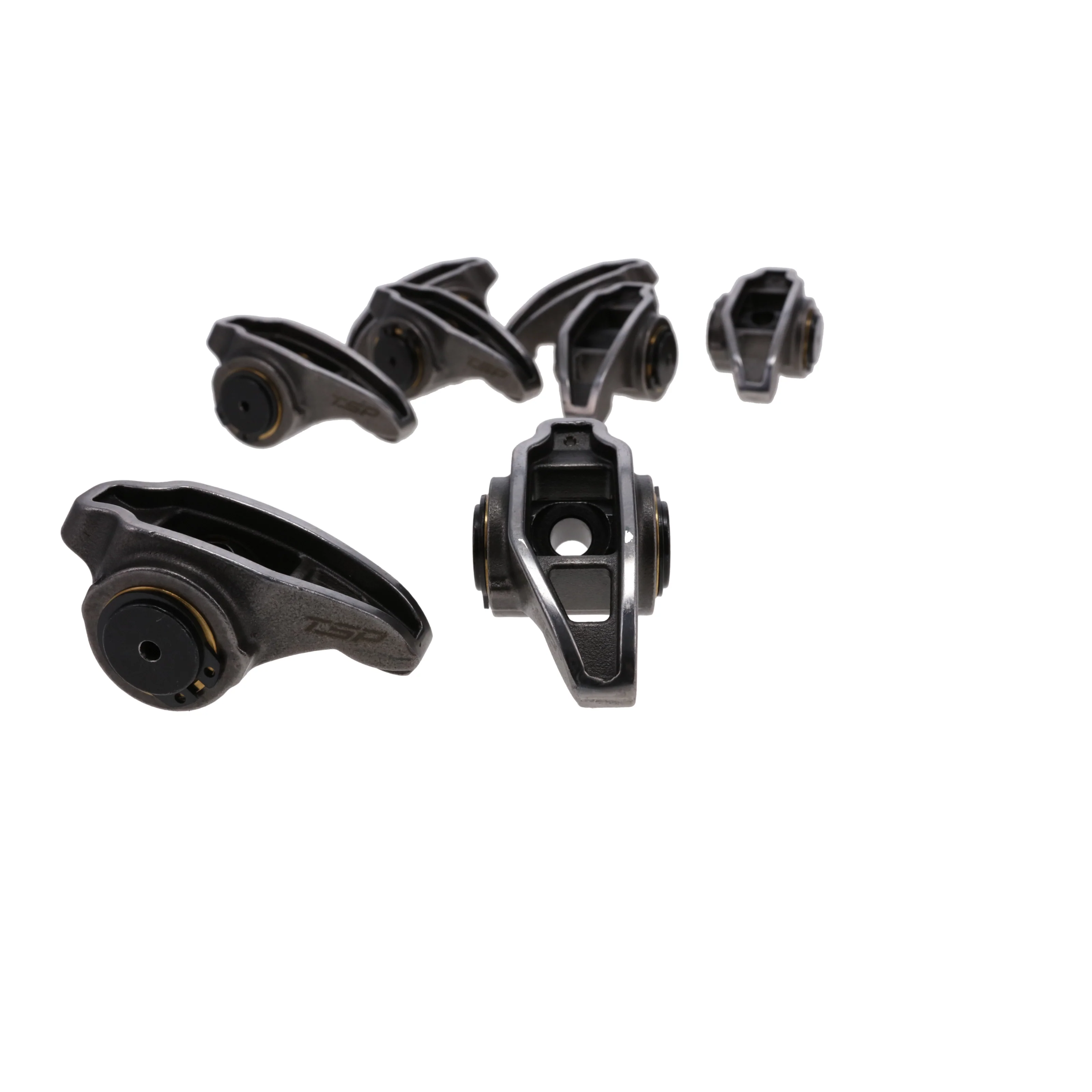

Chevy LS3/L92 Pro Series Cast Steel Rocker Arms, 1.7 Ratio, Bronze Bushing Trunnion

Chevy LS3/L92 1.7 Ratio Roller Rocker Arms for Improved Valvetrain Performance

These 1.7 ratio roller rocker arms are designed for Chevy LS3/L92 applications, helping improve valve lift, reduce friction, and support more responsive engine performance.

Built from cast steel, this rocker arm design balances strength, durability, and valvetrain stability for street performance, restoration, and upgraded engine builds.

The bronze bushing trunnion helps promote smoother rocker motion and more consistent valve control, especially when paired with compatible camshaft, pushrod, and valve spring combinations.

Configured where applicable, these rocker arms are built for proper fitment and reliable operation. Always verify rocker ratio, stud size, pushrod length, guideplate alignment, and valve spring clearance before installation.

Fitment

COMPATIBLE WITH
GM LS GEN IV RECTANGLE PORT V8 ENGINES
• 6.2L / 376 in³ (LS3, L92, L99)

COMMON VEHICLE APPLICATIONS
Chevrolet Camaro / Corvette (LS3 equipped)
Pontiac G8 / Chevrolet SS-style LS applications
Chevrolet Silverado / GMC Sierra / Tahoe / Yukon / Escalade (6.2L LS equipped)

NOTES
Designed for LS3/L92-style rectangle port LS applications.
Verify shaft stand or mounting stand compatibility, rocker ratio, pushrod length, valve spring clearance, and valve cover clearance before installation.

Specifications:
Grade Type: Performance
Material: Cast Steel
Maximum RPM: 7,000
Mounting Type: Pedestal
Open Pressure Rating: 500 lbs.
Quantity: 16
Rocker Arm Body Style: Standard
Rocker Arm Finish: Natural
Rocker Arm Material: Cast Steel
Rocker Arm Ratio: 1.7
Rocker Arm Type: Roller Fulcrum
Self Aligning: No
Shims Included: No
Stud Thread Diameter: 3/8 in.
Trunnion Style: Bronze Bushing
