Chevy 283-350-400 Small Block Electric Water Pump - 35 GPM
CVF Racing electric water pumps are CNC machined from 6061 aluminum to reduce weight and save horsepower. These pumps will free up 5 to 10 horsepower compared to a mechanical water pump. CVF Racing electric water pumps are all designed to work with our accessory brackets and will make for a trouble free installation.

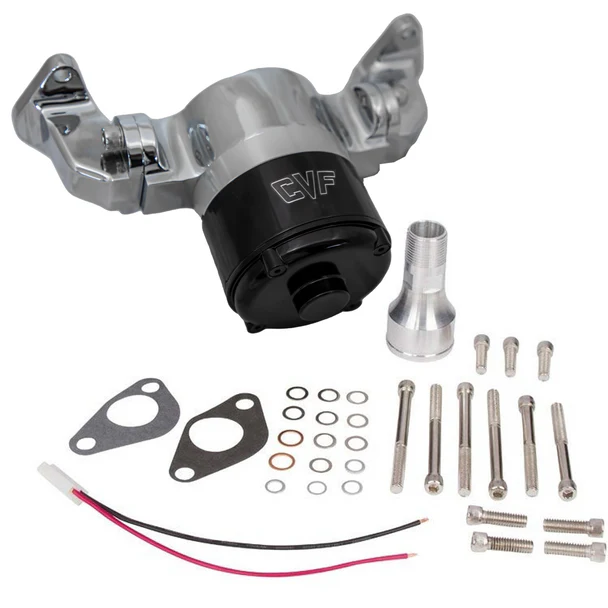

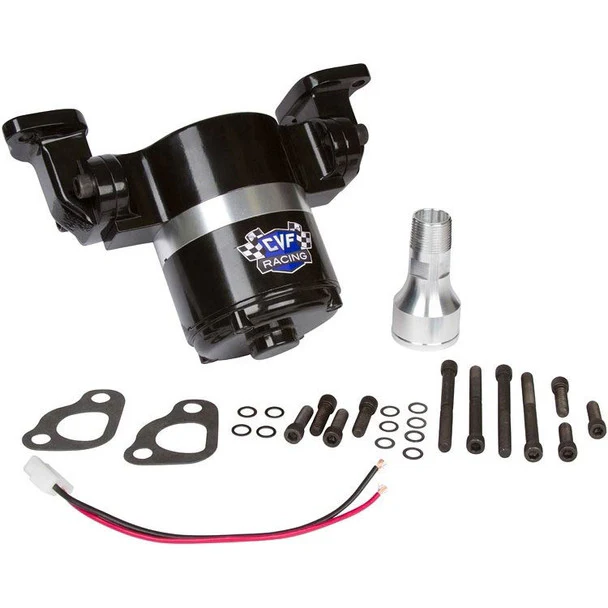

Water Pump Includes:
- 35 GPM Electric Water Pump
- Water Pump Gaskets
- Mounting Hardware
- Inlet Pipe
- 12" Connector Wire
Features:
- Material: 6061 Billet Aluminum
- Finish: Chrome Plated
- Flow Rate at 12V: 35
- GPM Current Draw: 5.5 Amps
- Overall Depth: 7.1 in
- Inlet Hose Size 1 3/4" Inlet
- Hose Location: Can be mounted left or right side
- Inlet Hose Size: 3/4"NPT x 3" 1-3/4"
- Inlet fitting may interfere with 8" balancers and require a different fitting
Compatible with:
Chevy 283-350-400 Small Block
• 4.6 L / 283 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³
| Product Type | Water Pump |
| Finish | Chrome or Black |
| Water Pump Type | Electric |
| Make | Chevy |
| Engine | 350 Small Block |
