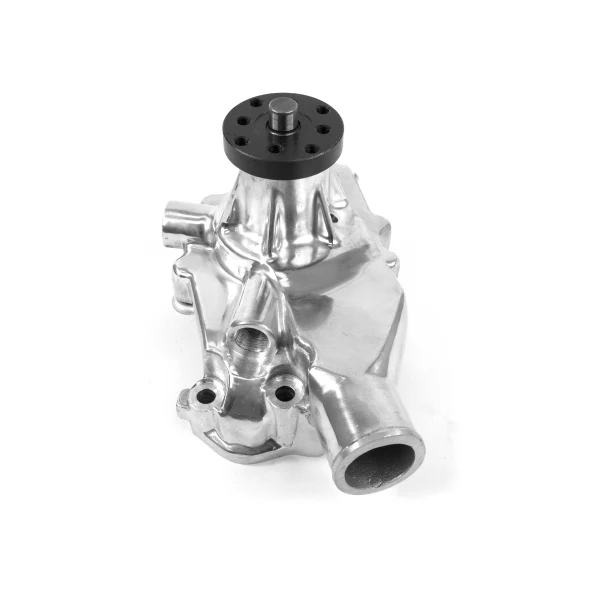

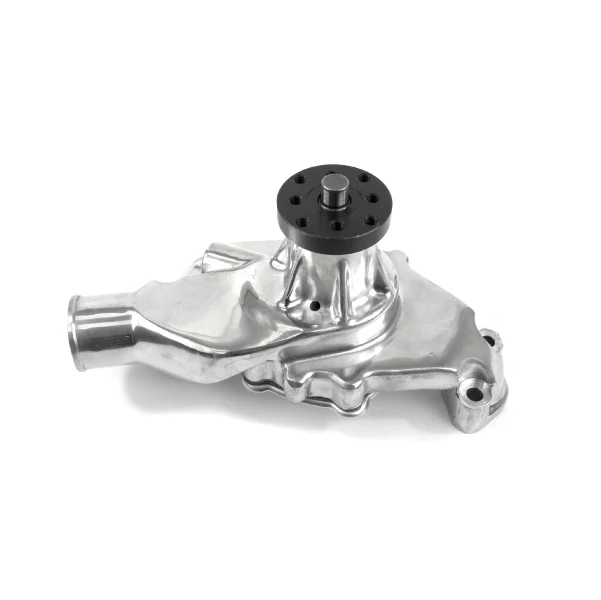

Chevy Small Block Short-Style High-Flow Mechanical Water Pump - Polished

Refresh the front of your Chevrolet Small Block V8 Gen. I cooling system with a short-style high-flow mechanical pump that blends dependable flow with sharp engine bay presentation. Key specs include high-volume, clockwise rotation, 5.625 in. hub height, 0.625 in. pilot diameter, polished aluminum, giving the installation the measurements and materials buyers look for in a quality replacement.

Pulley Alignment
5.625 in. hub height and 0.625 in. pilot diameter help position the pulley and fan drive during installation.

Impeller & Flow Design
The 8-vane clockwise high-volume impeller setup helps move coolant steadily through the block, heads, and radiator circuit.

Installation Notes
Confirm gasket included: yes, mounting hardware included: no, back housing included: yes before final assembly.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3

NOTES
Short style used in most passenger cars from '55-'68 and light trucks and from '55 - '72.
Most Corvettes used a different short style pump, measuring 5.800" in height.
It is important to measure to determine pump style.

Specifications:
Color: Silver
Fan Clutch Included: No
Finish: Polished
Gasket Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Hub Height: 5.625 in.
Hub Hole Quantity: 8
Hub Thickness: 0.500 in.
Impeller Material: Aluminum
Impeller Rotation: Clockwise
Impeller Vane Quantity: 8
Includes Back Housing: Yes
Mounting Hardware Included: No
Mounting Hole Quantity: 4
Outlet Quantity: 1
Pilot Diameter: 0.625 in.
Pulley Included: No
Pump Flow: High-volume
Thermostat And Housing Included: No
Water Pump Drive Type: Mechanical
