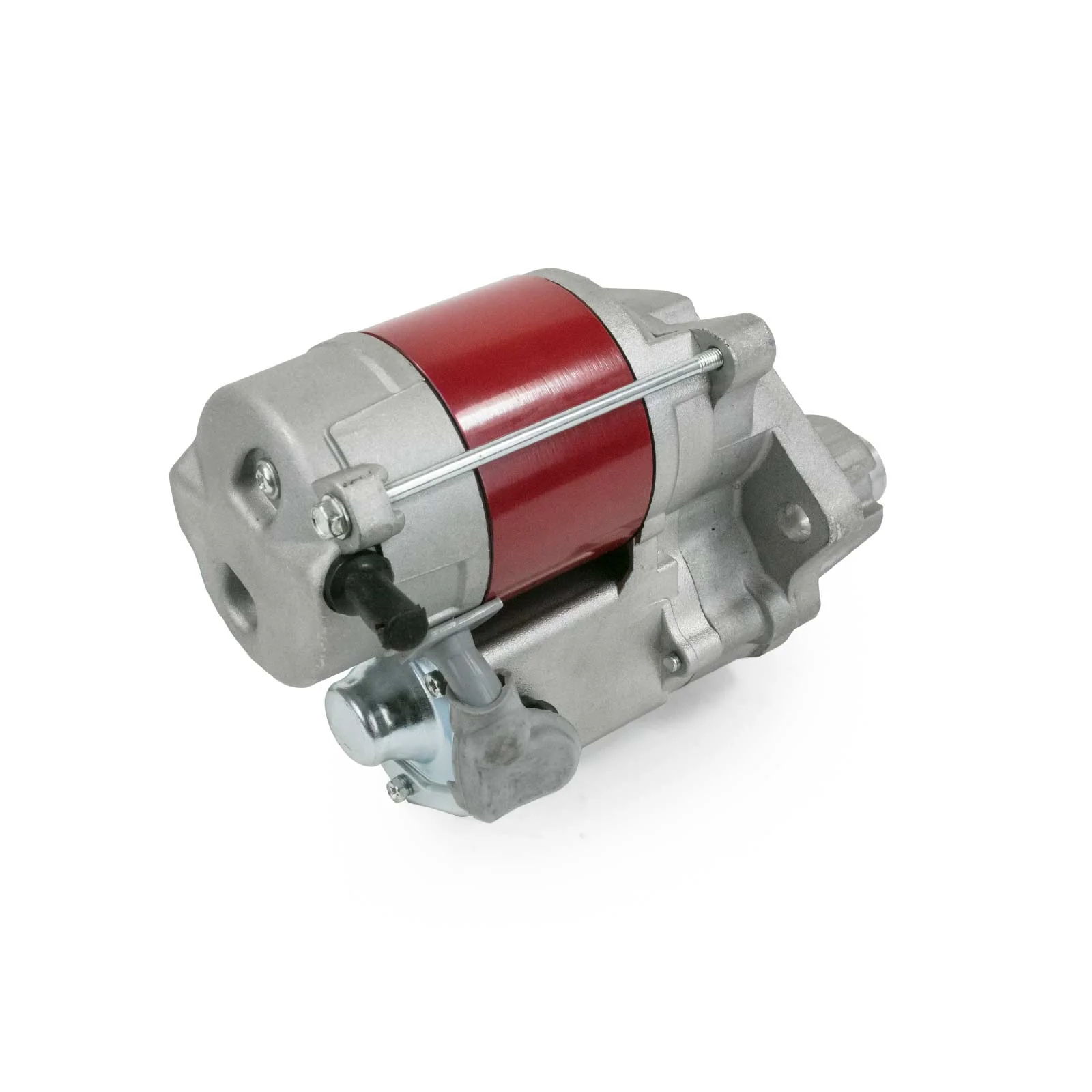

Chrysler 1.9 HP Mini Starter - Red

Bring dependable cranking power and improved starter clearance to the engine bay with a compact high-torque starter built around modern gear-reduction performance. The 1.9 horsepower motor and 4.0:1 gear reduction ratio help turn over higher-compression engines more efficiently.

Compact Starter Design
Mini starter layout creates additional clearance around headers, oil pans, and tight engine bay configurations.

Gear Reduction Performance
4.0:1 gear reduction and standard rotation help deliver stronger starter engagement during hot and cold starts.

Installation Notes


COMPATIBLE WITH
CHRYSLER BIG BLOCK "B" V8
• 6.3 L / 383 in3
• 6.6 L / 400 in3

CHRYSLER BIG BLOCK "RB" V8
• 6.8 L / 413 in3
• 7.2 L / 440 in3

CHRYSLER INLINE 6
• 3.7 L / 225 in3

CHRYSLER SMALL BLOCK "LA" V8
• 5.2 L / 318 in3
• 5.9 L / 360 in3

NOTE: Will not fit "Magnum" engines

COMMON VEHICLE APPLICATIONS
Dodge Charger / Challenger / Road Runner
Plymouth GTX / Barracuda / Satellite
Classic Mopar street and muscle builds

Specifications:
Starter Style: Mini
Starter Type: Compact
Color: Available in Black or Red
Adjustable Mounting Block: No
Starter Rotation: Standard
Maximum Compression Ratio: 12.0:1
Gear Reduction Ratio: 4.0:1
Horsepower: 1.9
Starter Housing Material: Cast Aluminum
Mounting Block Material: Billet Aluminum
