Ford Coyote Swap Oil Pan for 53-79 Ford Trucks - Satin

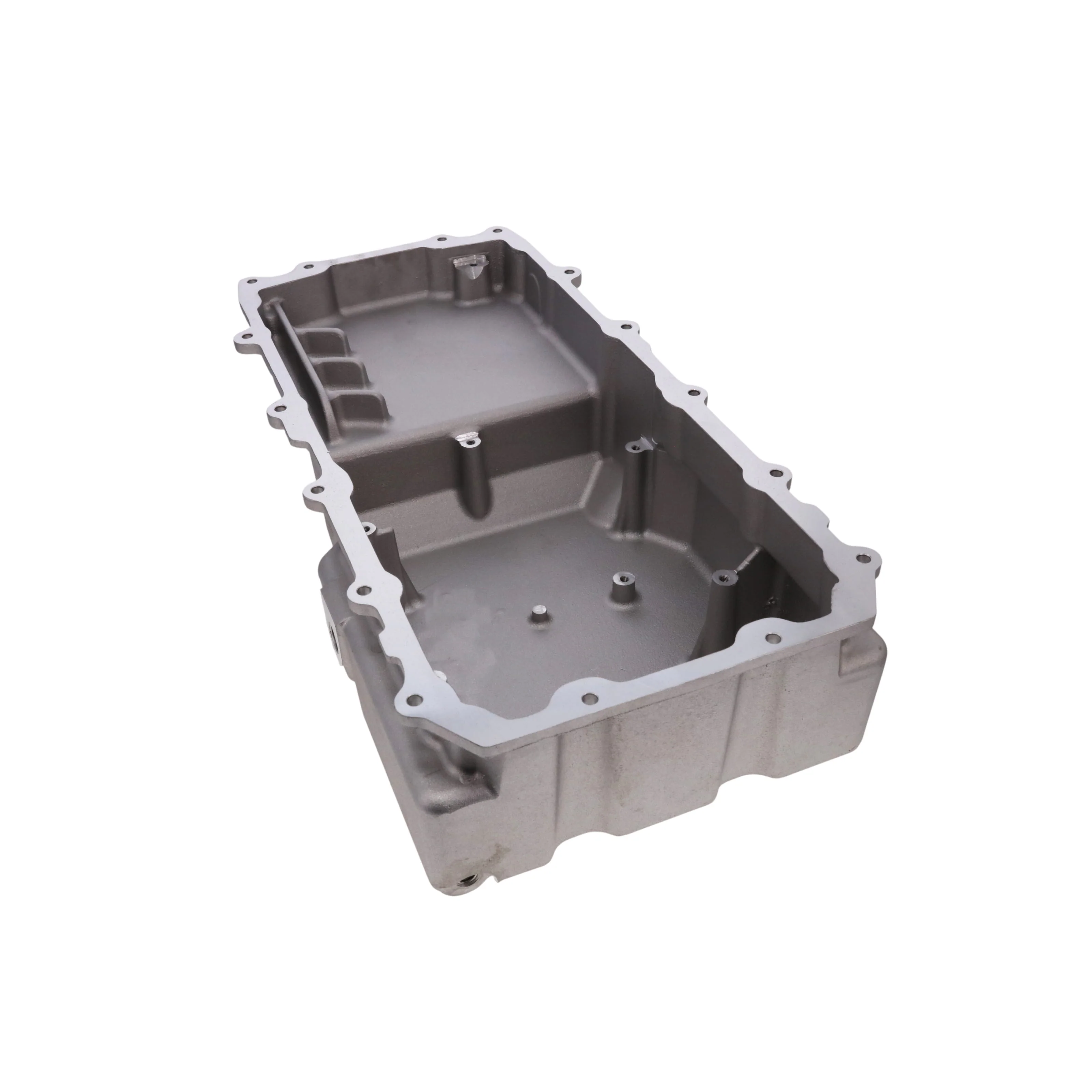

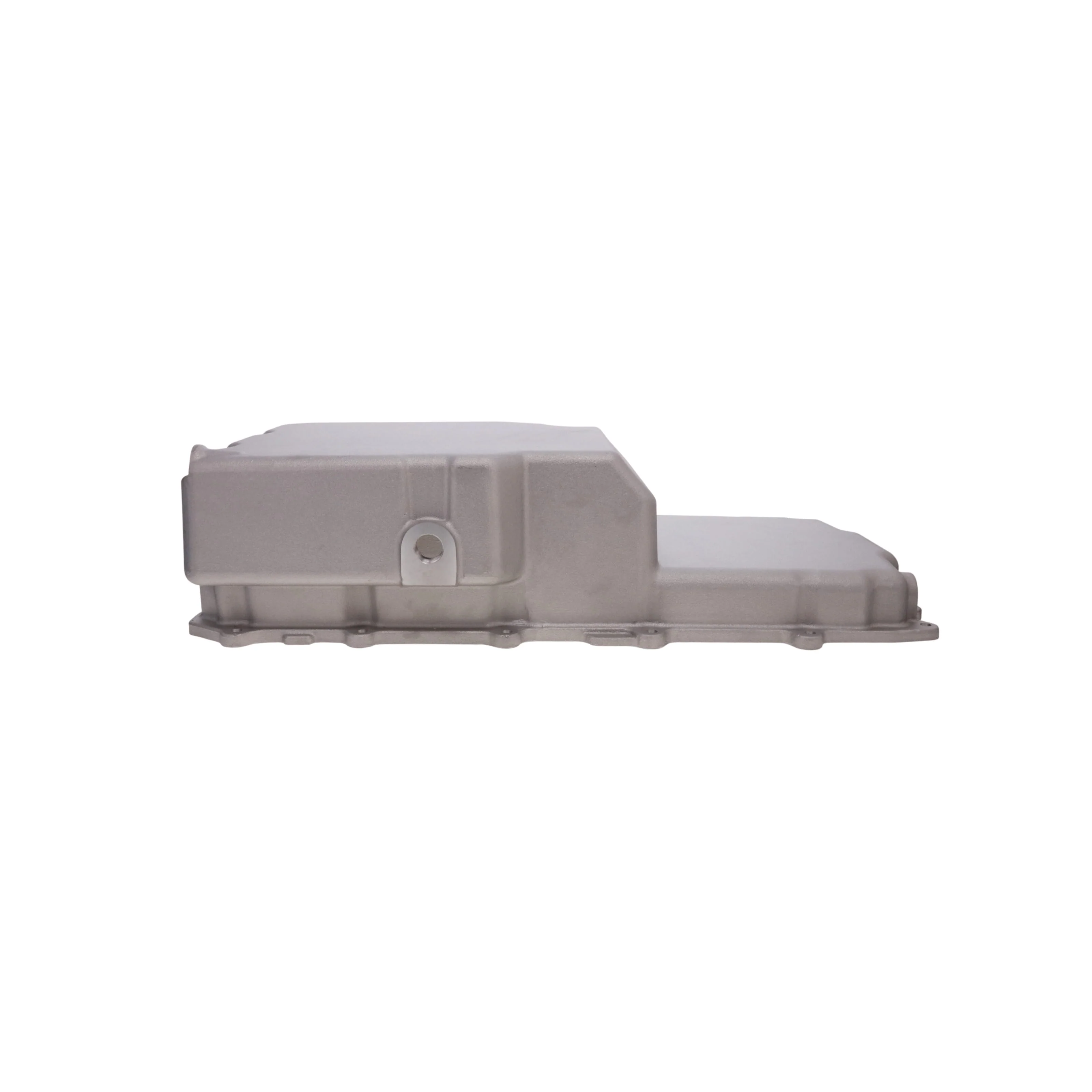

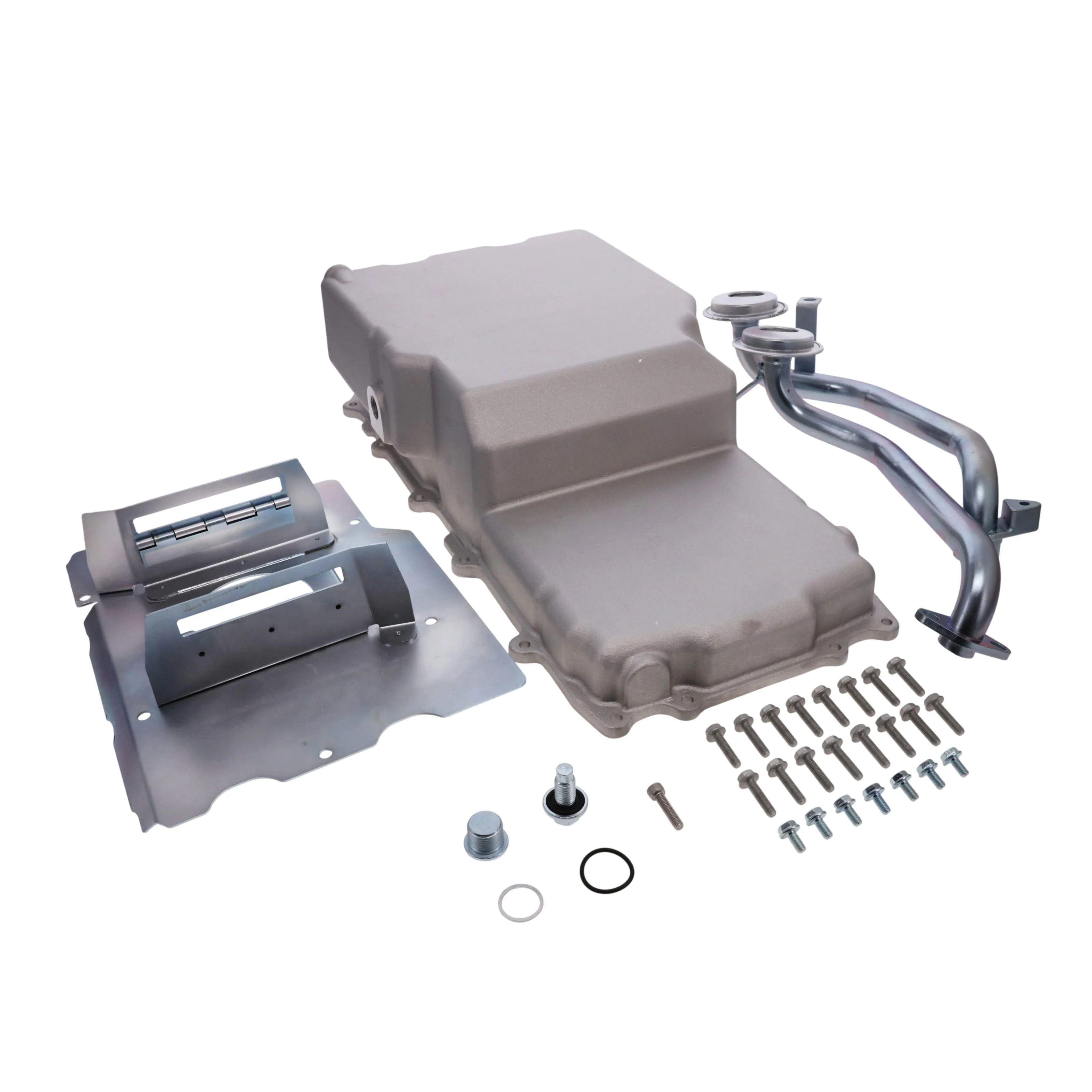

TSP's new swap pan for the Coyote is the perfect solution for your old truck. It is composed of cast aluminum for heat management and uses the stock gasket, baffle assembly, and low-oil level sensor for easy installation. Designed for swaps in a 1953-1979 half and three-quarter ton truck, this pan is also ideal for a variety of other applications.

COMPATIBLE WITH
FORD MODULAR V8
• 5.0 L / 302 in3

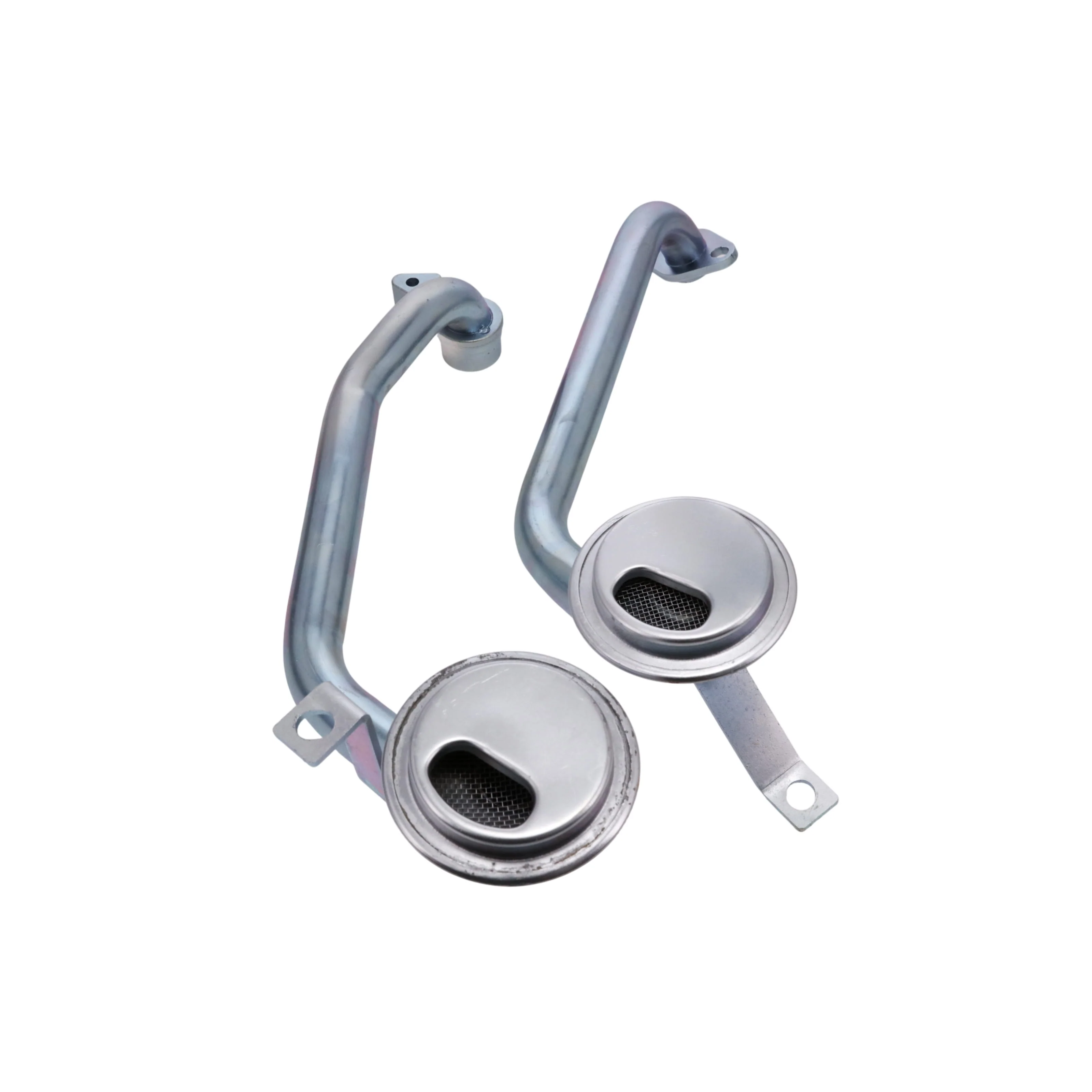

NOTE: Includes oil pump pickup style for gen 1 and 2, as well as the pickup for gen 3

Specifications:
Material: Aluminum
Color: Silver
Finish: Satin
Gasket or Seal Included: Yes
Mounting Hole Quantity: 16
Capacity: 7.6 qt.
Baffled: No
Crank Shaft Wiper Included: No
Maximum Depth: 5.140 in.
Dipstick Port: No
Drain Plug Included: Yes
Engine Oil Cooler Return Fitting: No
Kick Out Type Pan: No
Pickup Included: Yes
Sump Location: Rear
Sump Type: Wet
Windage Tray Included: No
Drain Thread Size: 12mm x 1.75

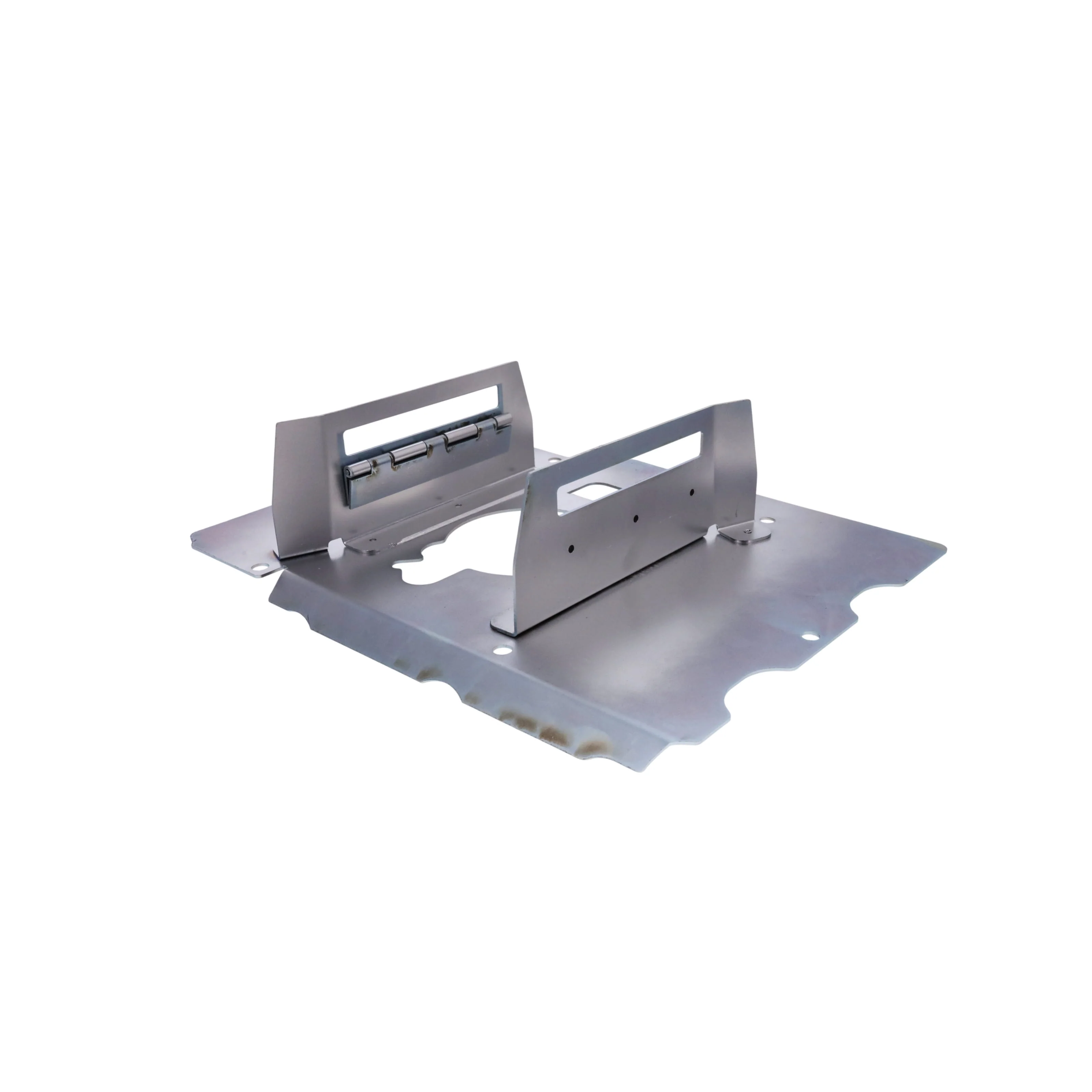

Baffle Included: Yes

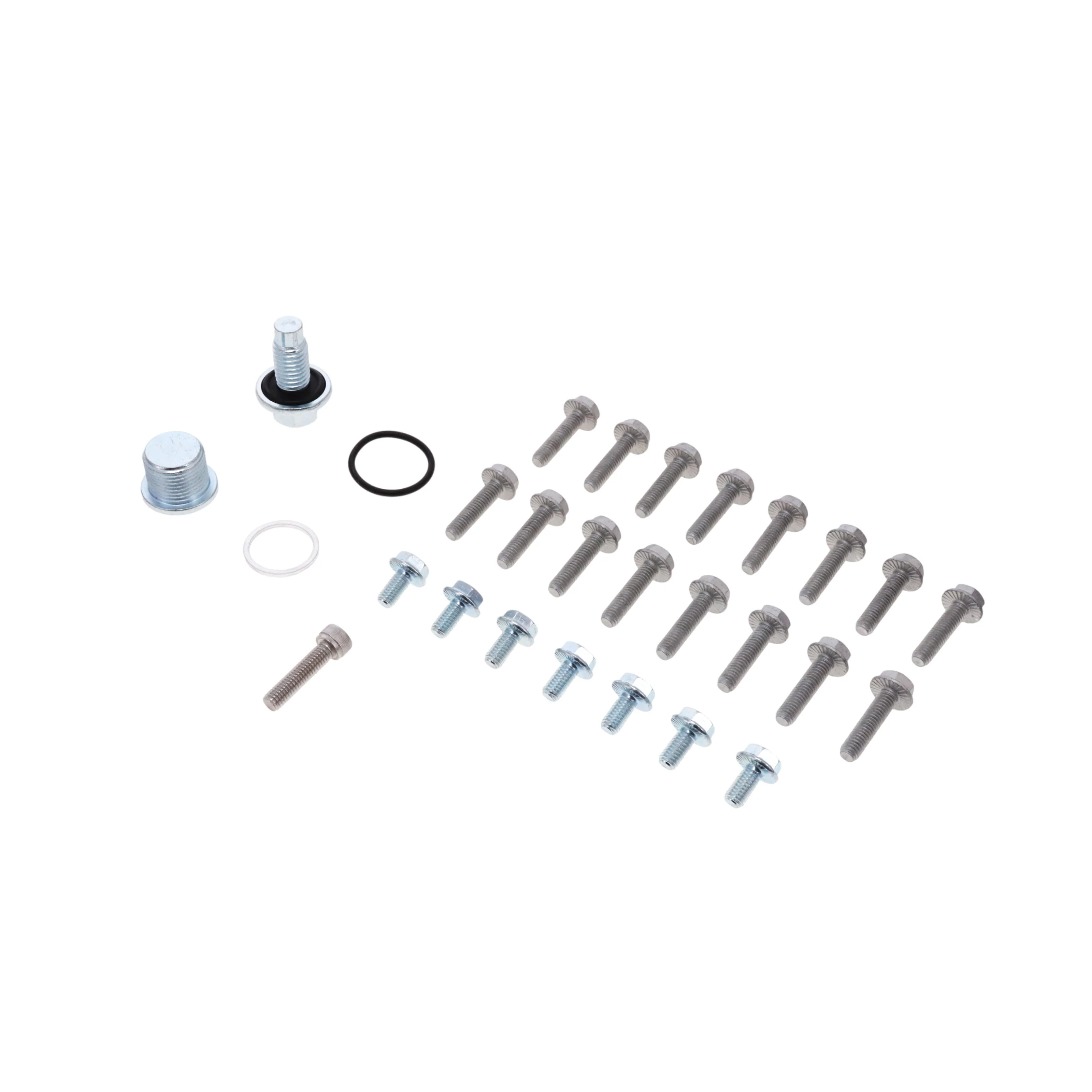

Mounting Hardware Included: Yes
Oil Filter Location: Stock
Oil Filter Stud Included: No
Oil Passage Cover Included: No
