$54.32

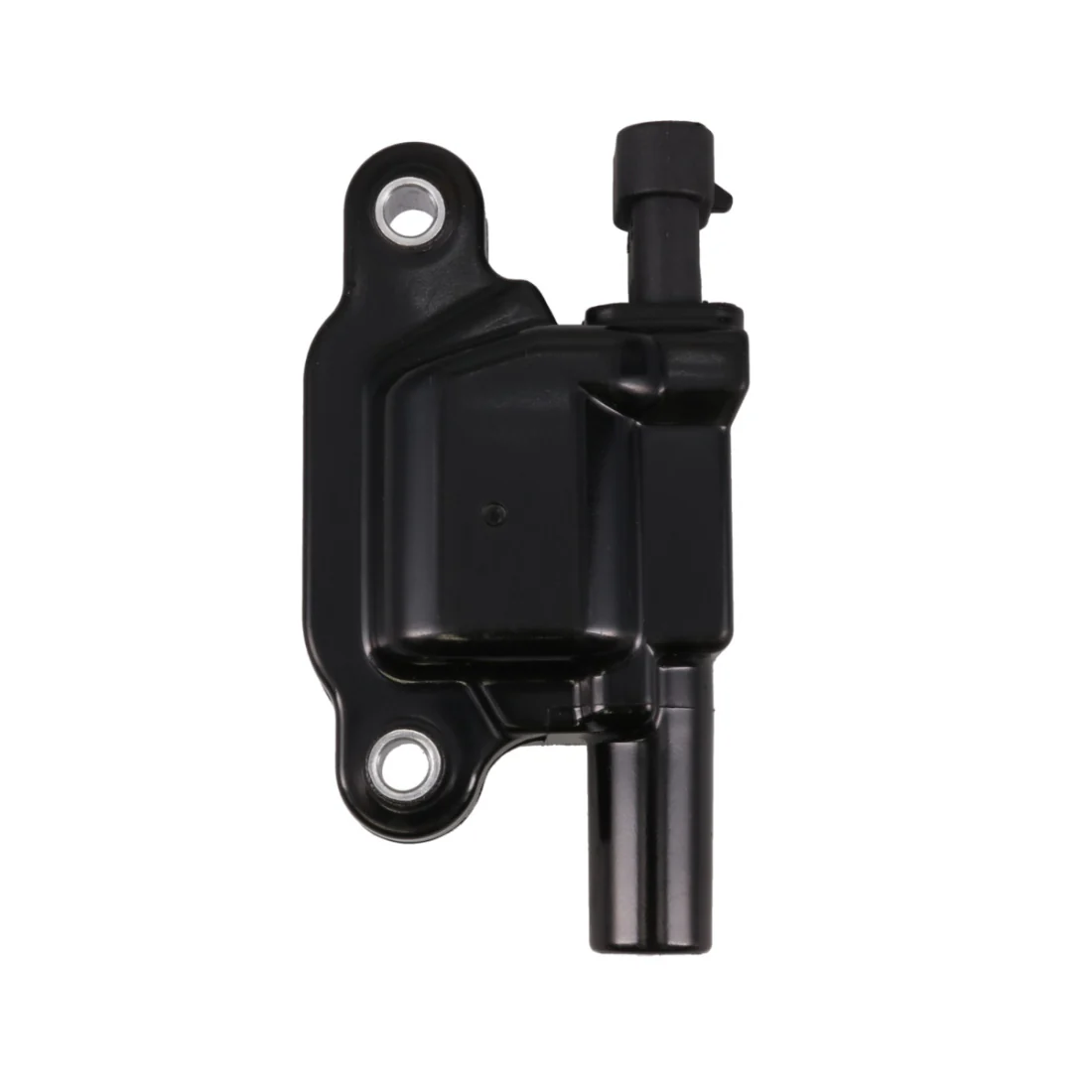

GM '05-'18 LS High Performance Ignition Coil - Single - Black—
$54.32
The Story
Wake up the ignition system with an ignition coil built to deliver stronger spark energy and cleaner engine response.
Spark Energy
High-output spark energy helps improve ignition consistency during startup, idle, and acceleration.
Ignition Coil Construction
Performance-style construction helps manage heat while maintaining dependable ignition performance.
Installation Notes
0.5 Ohms primary resistance helps match ignition system requirements. Verify mounting style and ignition compatibility before installation.
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 293 in3 (LR4, LY2, L20)
• 5.3 L / 325 in3 (LM7, L59, LM4, L33, LC9, LH6, LH8, LH9, LMF, LMG, LY5, LS4)
• 5.7 L / 346 in3 (LS1, LS6)
• 6.0 L / 364 in3 (LQ4, LQ9, LS2, L76, LY6, L96, LFA, LZ1)
• 6.2 L / 376 in3 (LS3, L92, L94, L9H, L99, LSA, LS9)
• 7.0 L / 427 in3 (LS7)
COMMON VEHICLE APPLICATIONS
Chevrolet Corvette LS2 / LS3 / LS7 / LS9 applications
Chevrolet Camaro LS3 / L99 applications
Pontiac G8 / GTO and Cadillac CTS-V LS-based applications
LS swap builds using matching coil connector and bracket style
NOTES
Verify coil connector style, coil bracket style, and wiring harness compatibility before installation.
8 coils are required for V8 applications when replacing a full set.
For LS swap use, match the coil connector and bracket style to the harness and valve cover setup.
Specifications:
Coil Style: Coil Pack
Internal Construction: Epoxy
Primary Resistance: 0.5 Ohms
Secondary Resistance: 2,000 Ohms
Maximum Voltage: 40,000 V
Spark Duration: 300 Ms
Peak Current: 220 Ma
Turns Ratio: 75:1
Inductance: 2.7 Mh
Coil Wire Attachment: Female
