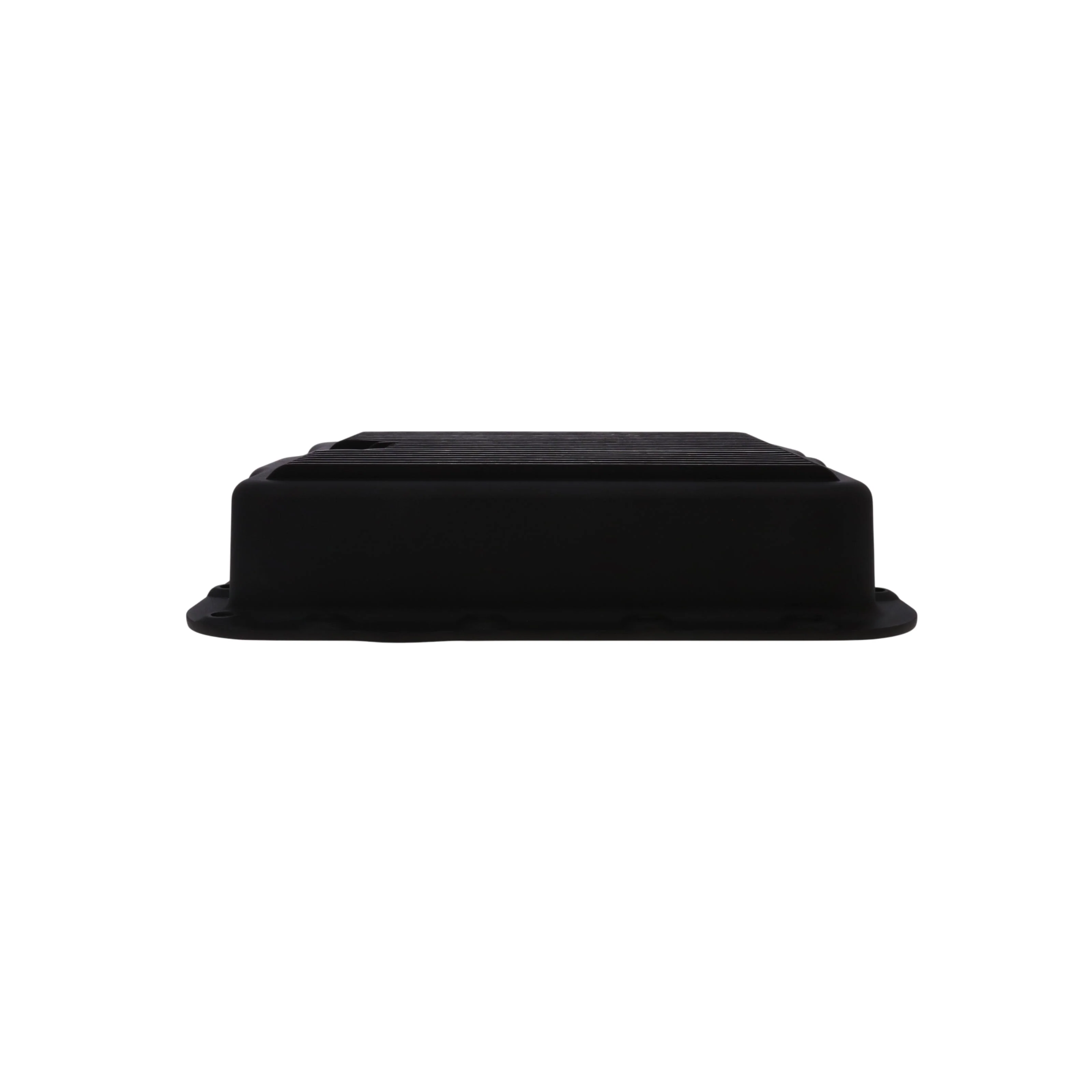

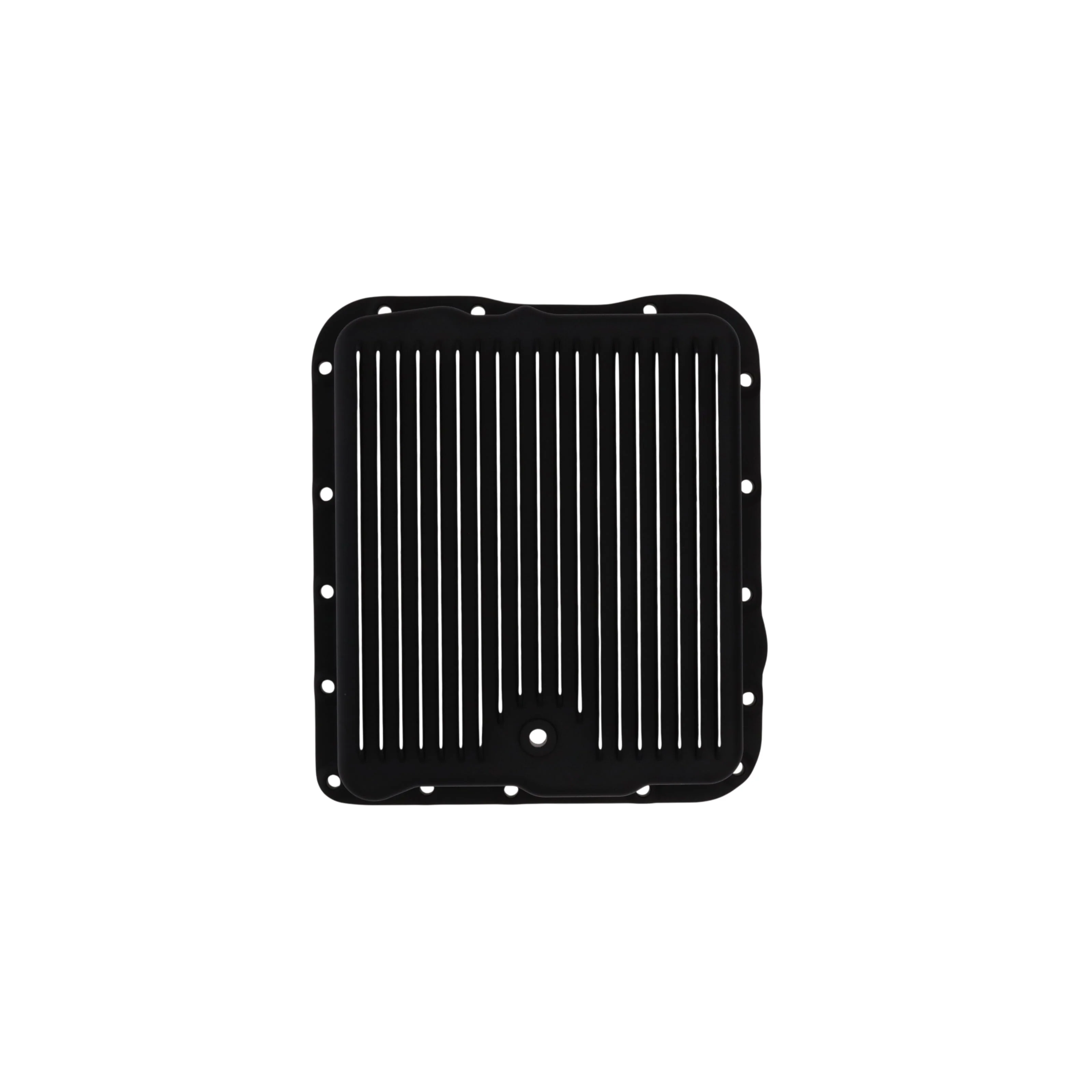

GM 700R4, 4L60, 4L60E, Finned Aluminum Transmission Pan, Stock Depth - Black

Heat is one of the leading causes of automatic transmission failure. This TSP finned aluminum transmission pan is designed to improve cooling efficiency and help extend the life of GM 700R4, 4L60, and 4L60E transmissions under street, towing, and performance driving conditions.

Constructed from durable cast aluminum, this transmission pan provides greater strength and rigidity compared to factory stamped steel pans while also improving heat dissipation. The external cooling fins increase surface area, allowing heat to transfer away more efficiently and helping maintain consistent fluid temperatures.

The stock-depth design allows for a direct bolt-on installation with no clearance issues or modifications required. It works with factory components, making it an ideal upgrade for drivers looking to improve reliability without changing fluid capacity or complicating installation.

A built-in drain plug makes routine maintenance faster and cleaner by eliminating the need to remove the entire pan during fluid changes. Finished in black for corrosion resistance and a clean appearance, this aluminum transmission pan is a practical upgrade for both daily drivers and performance applications.

COMPATIBLE WITH
GM Turbo-Hydramatic 700R4 ("TH700R4" or "THM700R4")
GM 4L60
GM 4L60E / 4L65E / 4L70E

Specifications:
Bolts: Included
Capacity Increase: None
Drain Plug: Included
Drain Plug Thread Size: 1/2 in.-20
Filter: Not Included
Filter Extension: Not Included
Gasket: Included
Pan Depth: 2 3/8 in.
Pan Design: Finned
Pan Finish: Black
Pan Material: Aluminum
Pan Style: Stock
Temperature Sender Bung: Not Included
