GM CS-130 Type 220 Amp Alternator with Serpentine Pulley - Chrome

This 220 A CS130 alternator is built for Chevy Small Block and Chevy Big Block applications that need reliable charging capacity with a clean chrome finish. It provides the electrical output needed to support upgraded ignition systems, electric cooling fans, fuel pumps, lighting, and additional accessories.

High Output Charging Performance
With a 220 A output rating, this alternator delivers the charging capacity needed for vehicles running added electrical demand. Strong output helps maintain consistent system voltage in street, cruise, and stop-and-go driving conditions.

Consistent Voltage & Electrical Stability
The internal charging design helps reduce voltage drop that can affect ignition performance, fuel delivery, lighting, and sensitive electronic components under load.

Durable Internal Construction
Built with quality internal components, this alternator is designed to handle heat, vibration, and sustained electrical demand commonly found in street and performance applications.

Serpentine Pulley Configuration
Equipped with a serpentine pulley setup, this unit should be matched to the belt system and mounting layout listed in the specifications.

Direct-Fit Installation
The CS130 case and split mount support a straightforward installation when paired with the correct brackets, wiring, and pulley alignment.

Fitment

COMPATIBLE WITH
GENERAL MOTORS VEHICLES EQUIPPED WITH CS130 ALTERNATOR (SERPENTINE SYSTEMS)

CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³

CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 7.4 L / 454 in³

CHEVROLET BIG BLOCK V8 GEN. V
• 7.4 L / 454 in³

GM V6 ENGINES

GM INLINE 4 ENGINES
• 2.5 L / 151 in³

GM INLINE 6 ENGINES
• 4.8 L / 292 in³

GM DIESEL V8 ENGINES
• 6.2 L / 379 in³
• 6.5 L / 395 in³

OLDSMOBILE V8 ENGINES

NOTES:

Fitment is based on alternator type, not engine size.

Designed for vehicles originally equipped with a CS130-style alternator (typically mid-1980s to early-1990s GM applications).
Compatible with serpentine belt systems only.
Fitment is dependent on mounting bracket configuration, wiring connection, and pulley alignment.
May require wiring modification or conversion depending on application.
Not all listed engines are a direct bolt-on — verify alternator type and mounting style before purchase.

Specifications:
AC Service Tap: No
Amperage Rating: 220 A
Brushless: No

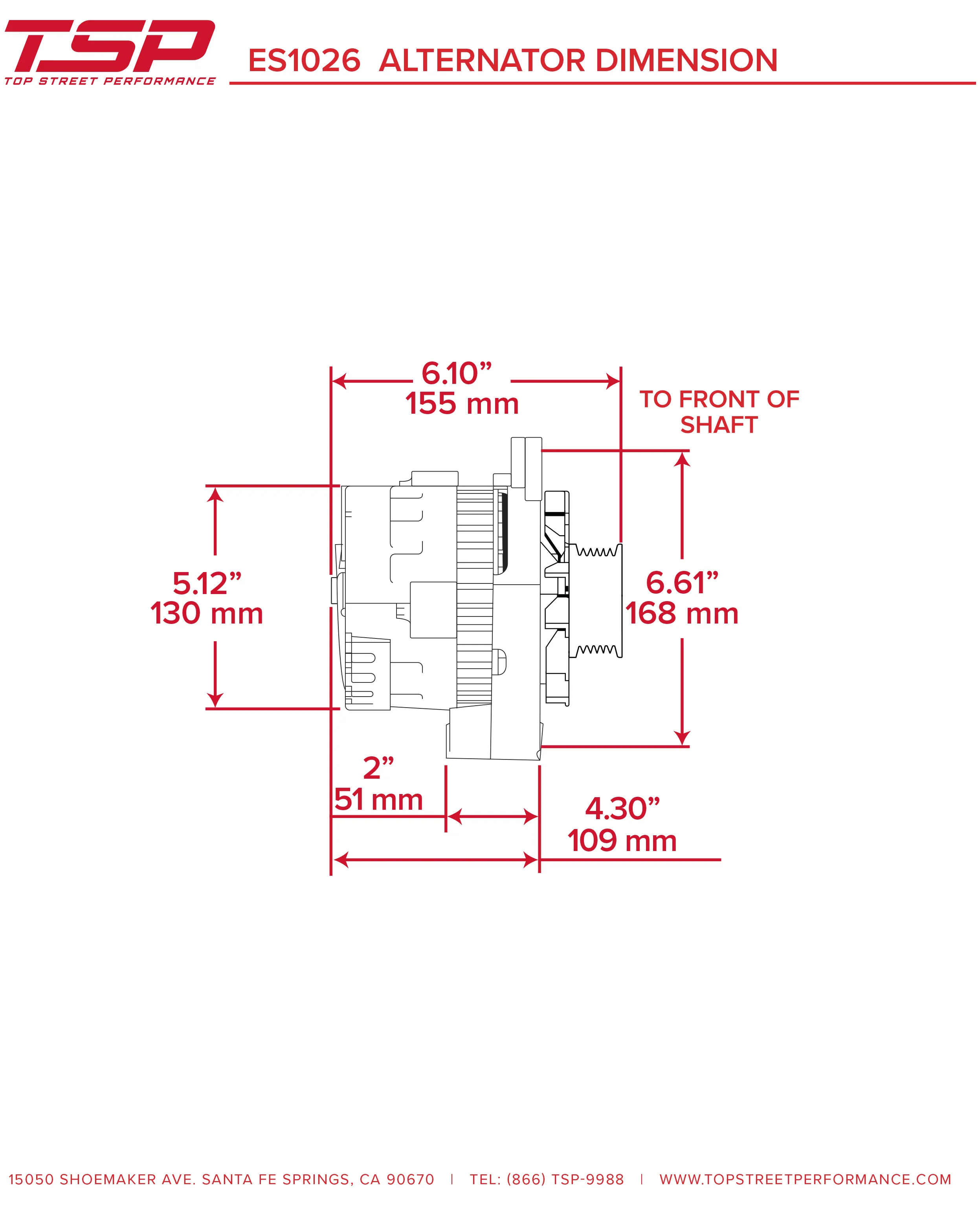

Case Circumference: 15.710 in.
Case Color: Silver
Case Material: Aluminum
Distance Between Mounting Feet: 6.610 in.
External Fan Included: Yes
External Regulator Included: No
Family: CS130
Fan Type: External
Finish: Chrome
Ground Type: Case ground
Mounting Configuration Code: 15
Mounting Type: Split Mount
One Wire Capable: Yes
Outside Pulley Diameter: 2.610 in.
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 12 o'clock

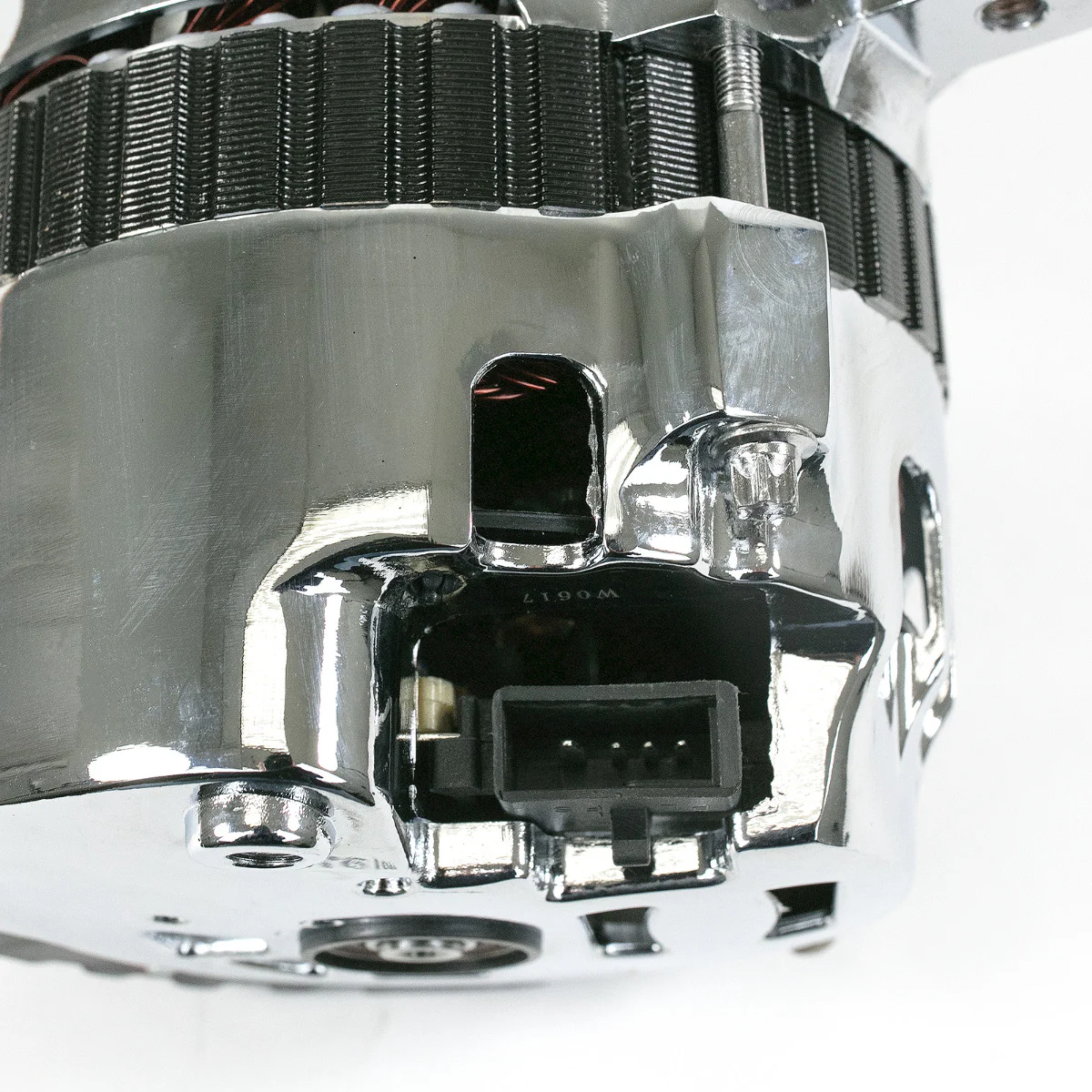

Plug Type: 4-pin
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise
Split Mounting Foot Overall Inner Spacing: 6.610 in.
Split Mounting Foot Overall Outside Spacing: 7.610 in.
Terminal Quantity: 5
Voltage: 12 VDC
