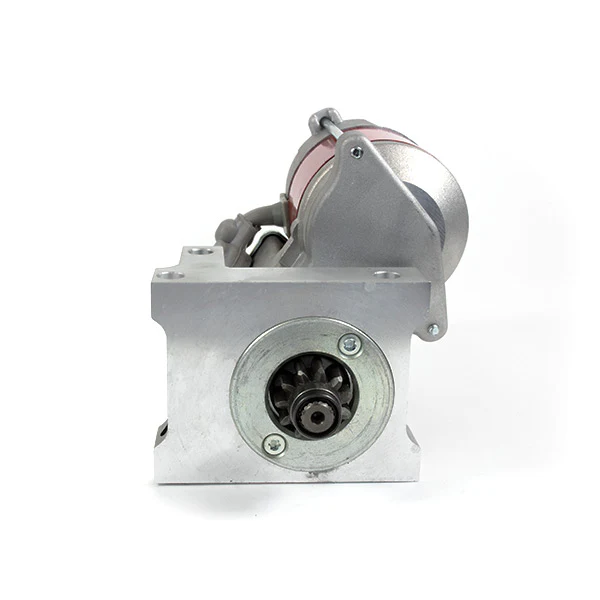

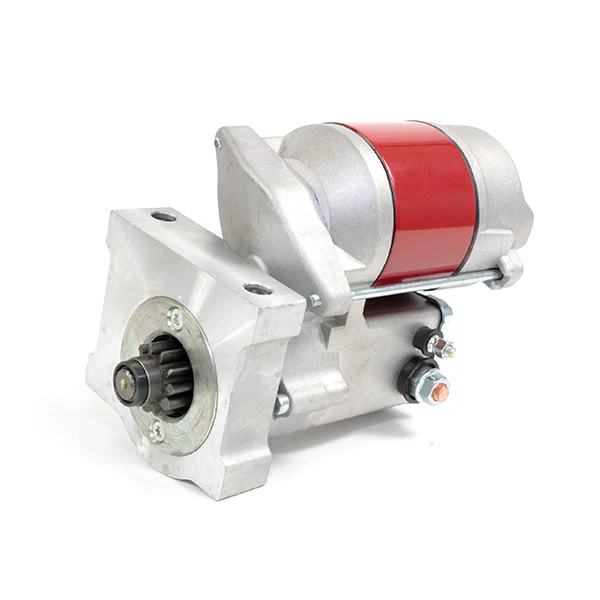

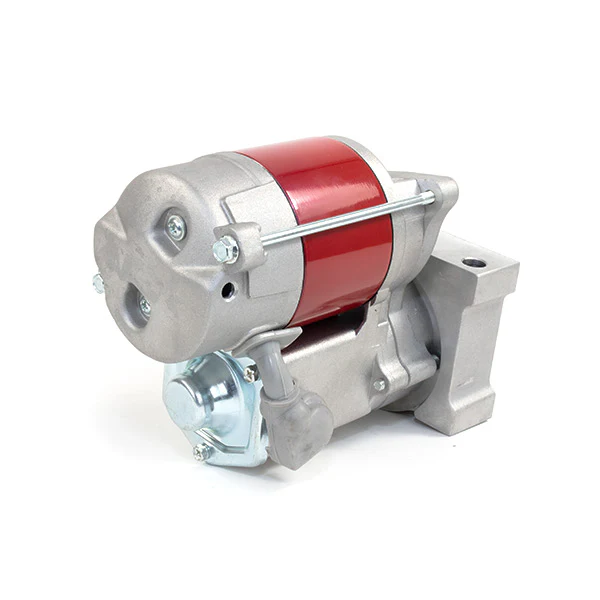

GM LS V8 1.9 HP Mini Starter - Red

Clean up LS engine starting performance with a compact red high-torque starter that delivers strong cranking power while creating extra room around headers and exhaust components. The 1.9 horsepower motor and 4.0:1 gear reduction ratio help turn over higher-compression engines more efficiently.

Compact Starter Design
Mini starter layout creates additional clearance around headers, oil pans, and tight engine bay configurations.

Gear Reduction Performance
4.0:1 gear reduction and standard rotation help deliver stronger starter engagement during hot and cold starts.

Installation Notes
Adjustable mounting block included for easier starter positioning. Fits 168-tooth flywheels.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 294 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3 commonly referred to as 350 in3
• 6.0 L / 364 in3

NOTE: Fits 168-tooth flywheels

COMMON VEHICLE APPLICATIONS
Chevrolet Chevelle / Nova / Camaro
Chevrolet C10 / K10 Trucks
Chevrolet Impala / El Camino
Street rod, muscle car, and custom Chevy builds

NOTES
Verify flywheel tooth count before starter installation.
Designed for GM Gen III/IV LS-based engine platforms.
Verify oil pan, header, and flexplate clearance before installation.
Mini starter housing helps improve clearance around headers and oil pans.
Verify staggered or straight mounting pattern requirements before installation.

Specifications:
Starter Style: Mini
Starter Type: Compact
Color: Red
Adjustable Mounting Block: Yes
Starter Rotation: Standard
Maximum Compression Ratio: 12.0:1
Gear Reduction Ratio: 4.0:1
Horsepower: 1.9
Starter Housing Material: Cast Aluminum
Mounting Block Material: Billet Aluminum
