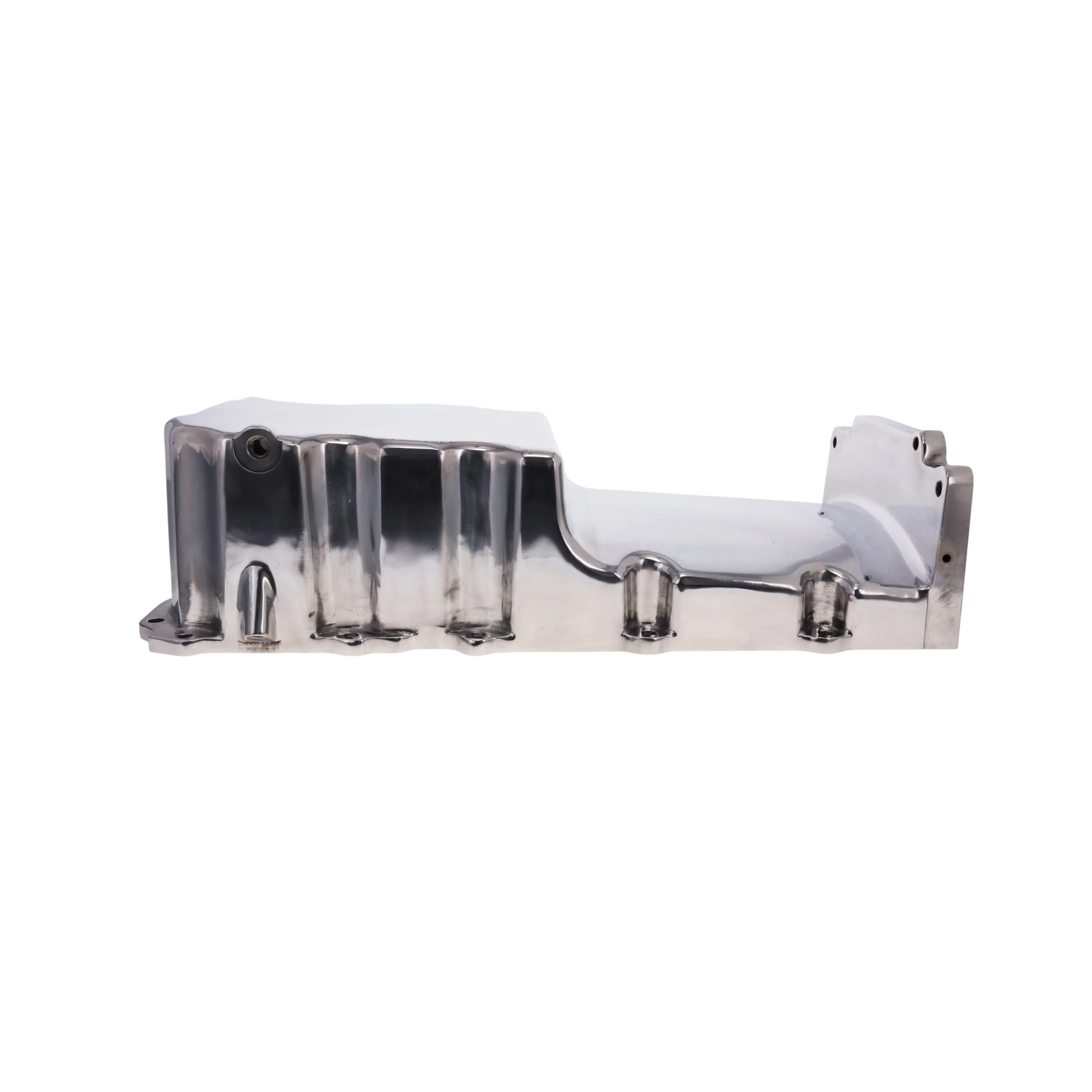

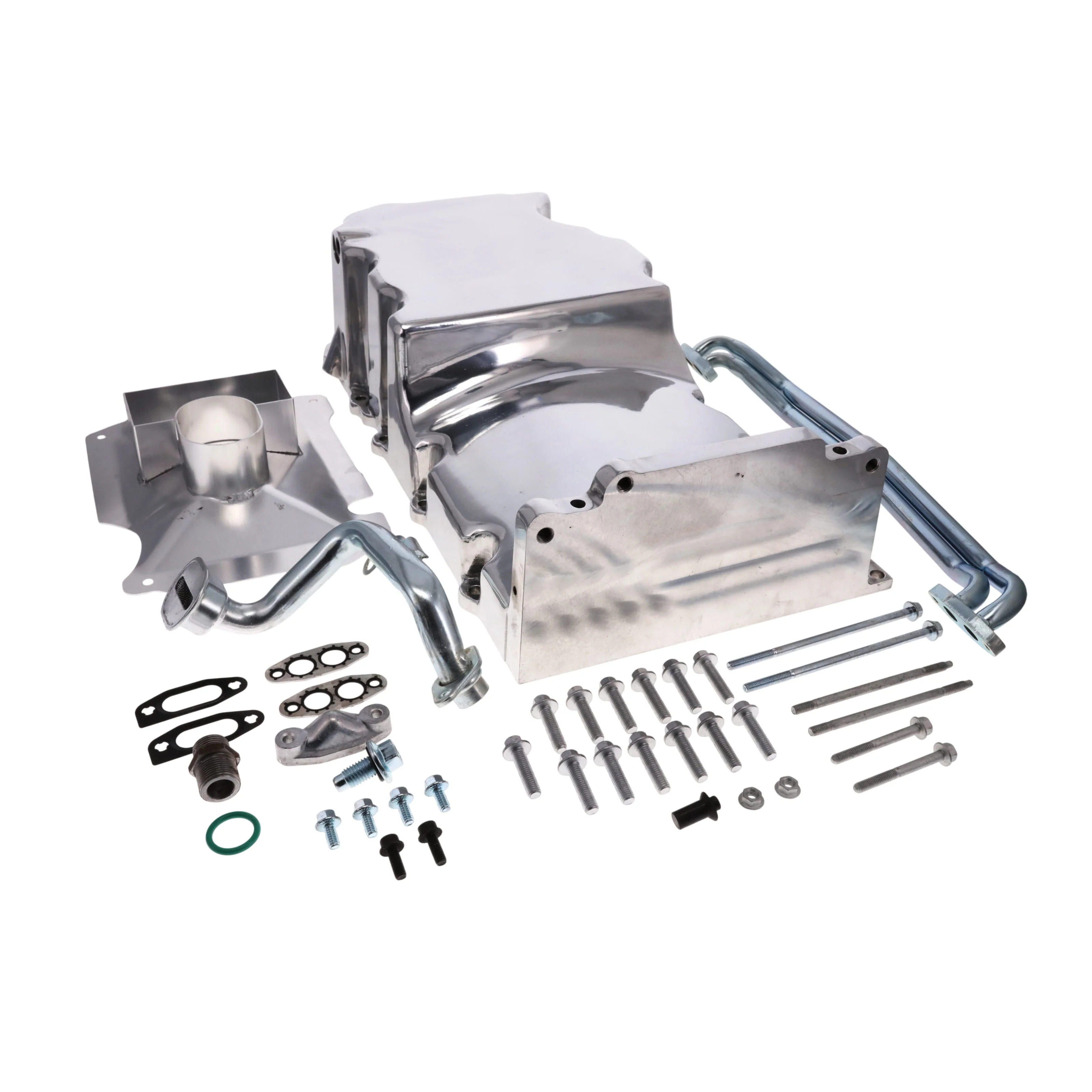

Low Profile Retro Fit Front Sump Pan - Polished

LS engines are among the most popular for swaps for their low expense and great power potential. Unfortunately, stock LS oil pans can't always fit where you want them to. That's where TSP's retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. This pan takes it to another level with a unique front-sump configuration - perfect for when a standard pan just won't work. Meticulously designed, it will mount perfectly to any wet-sump LS engine.

Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3 commonly referred to as 350
• 6.0 L / 364 in3
• 6.2 L / 376 in3

NOTES
Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.
Fits most LS engines, except LS7 or LS9 dry sump applications.
Stock style dipstick will not work with front sump pan.
Takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter.

Specifications:

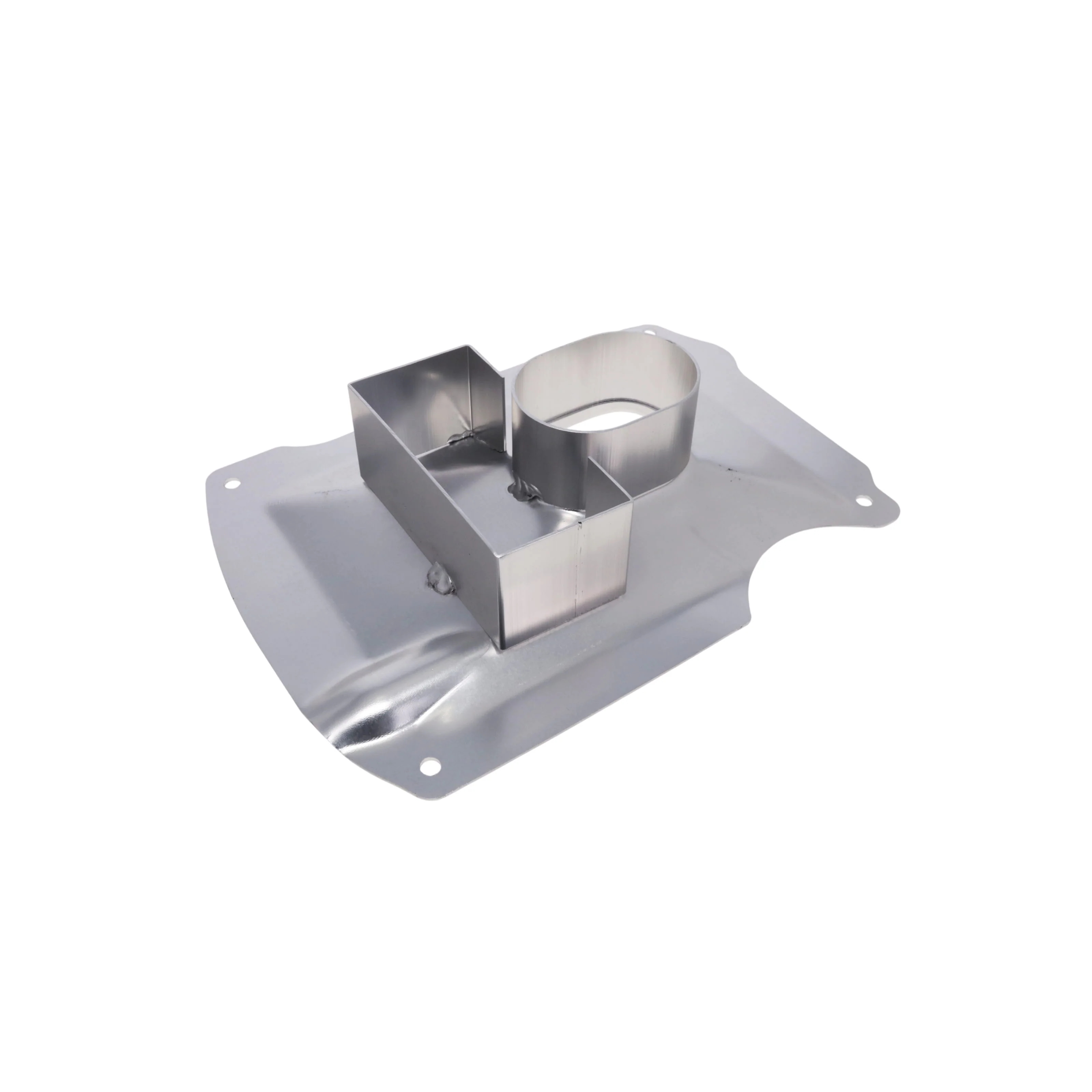

Baffle Included: Yes
Baffled: Yes
Capacity: 6.0 qt.
Color: Silver
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Thread Size: M12 x 1.75
Engine Oil Cooler Return Fitting: No
Finish: Polished
Gasket Or Seal Included: Yes
Kick Out Type Pan: No
Material: Aluminum
Maximum Depth: 5.690 in.
Maximum Stroke: 4.250 in.
Mounting Hardware Included: Yes
Mounting Hole Quantity: 17
Oil Filter Location: Stock
Oil Filter Stud Included: Yes
Oil Passage Cover Included: Yes

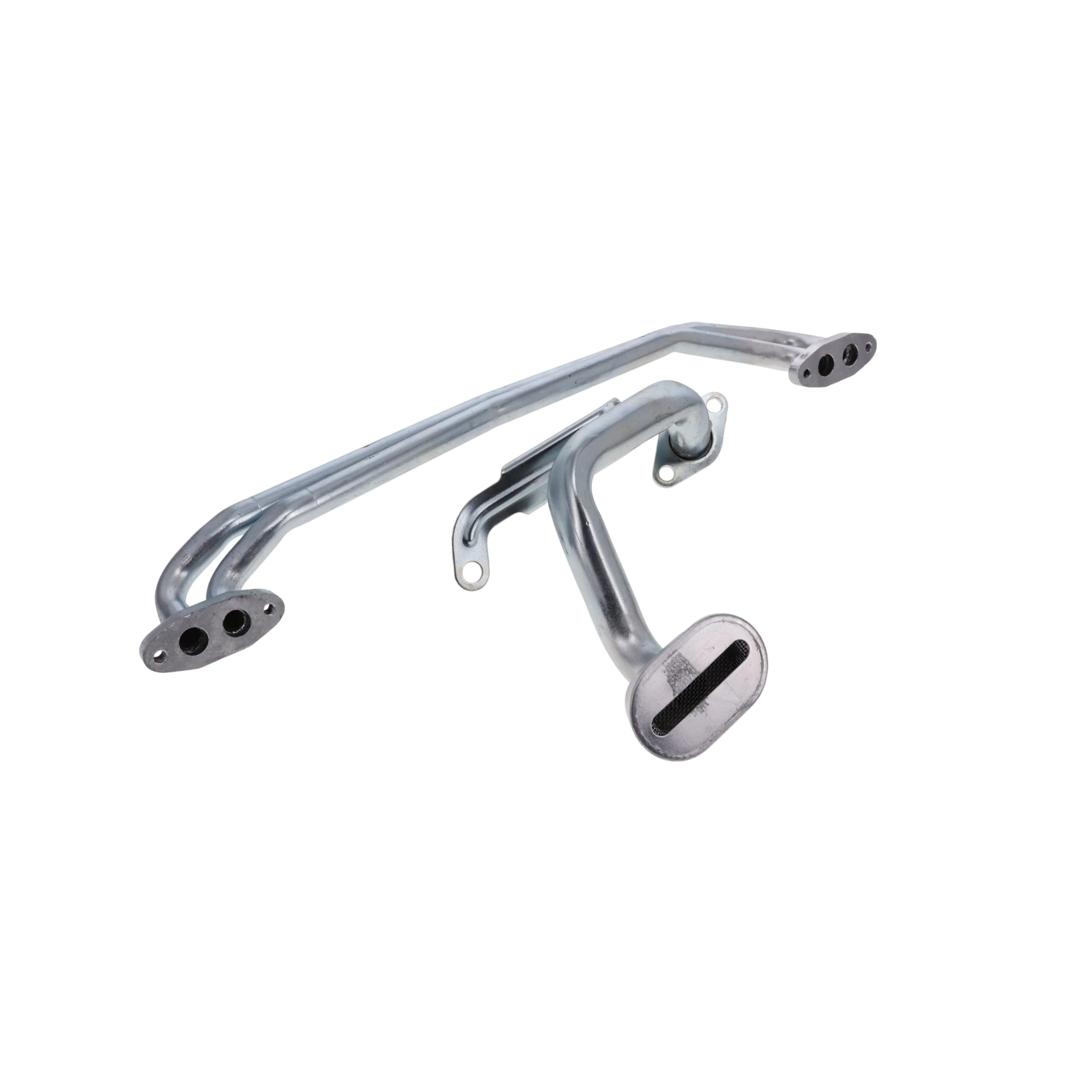

Pickup Included: Yes
Sump Location: Front
Sump Type: Wet
Windage Tray Included: No
