The Story

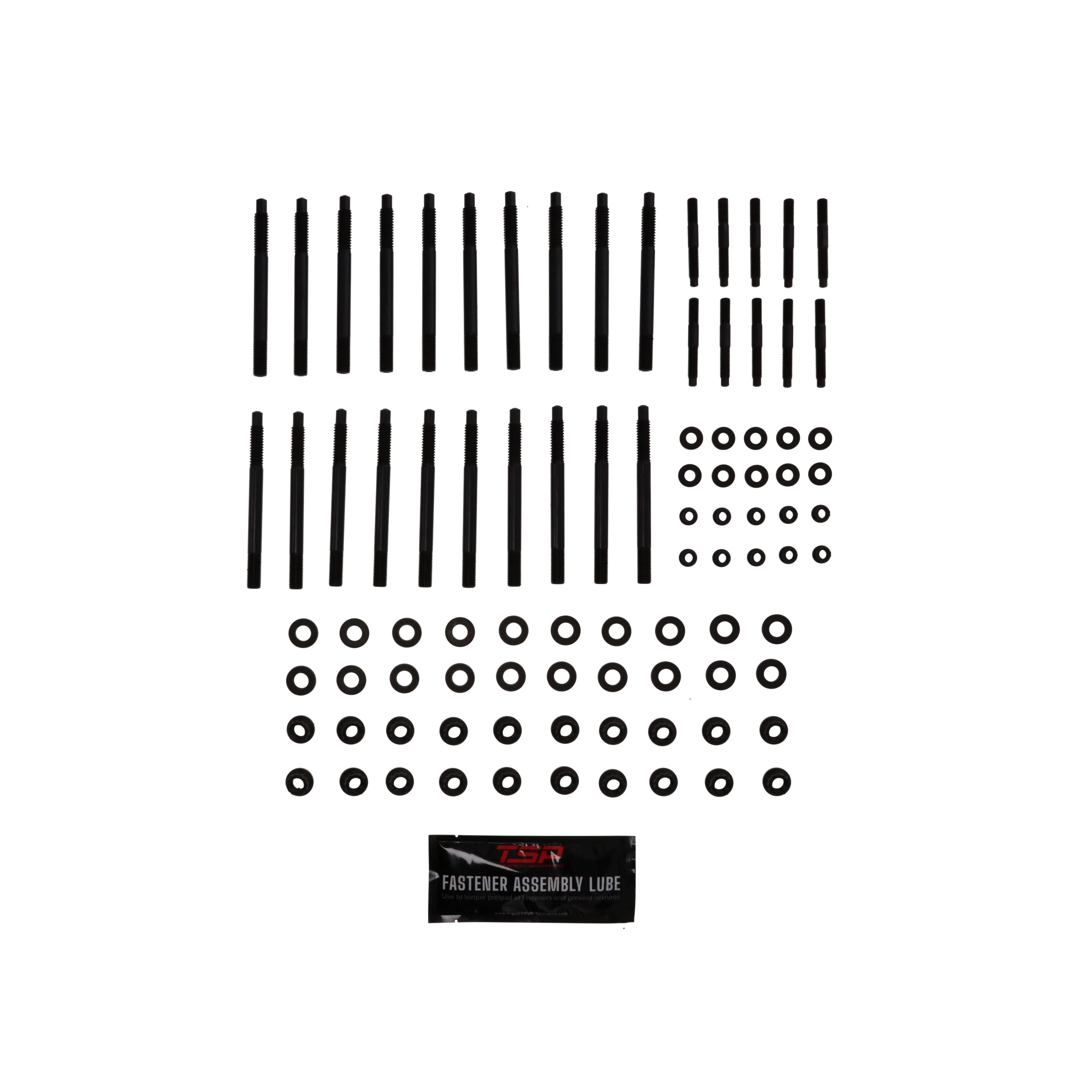

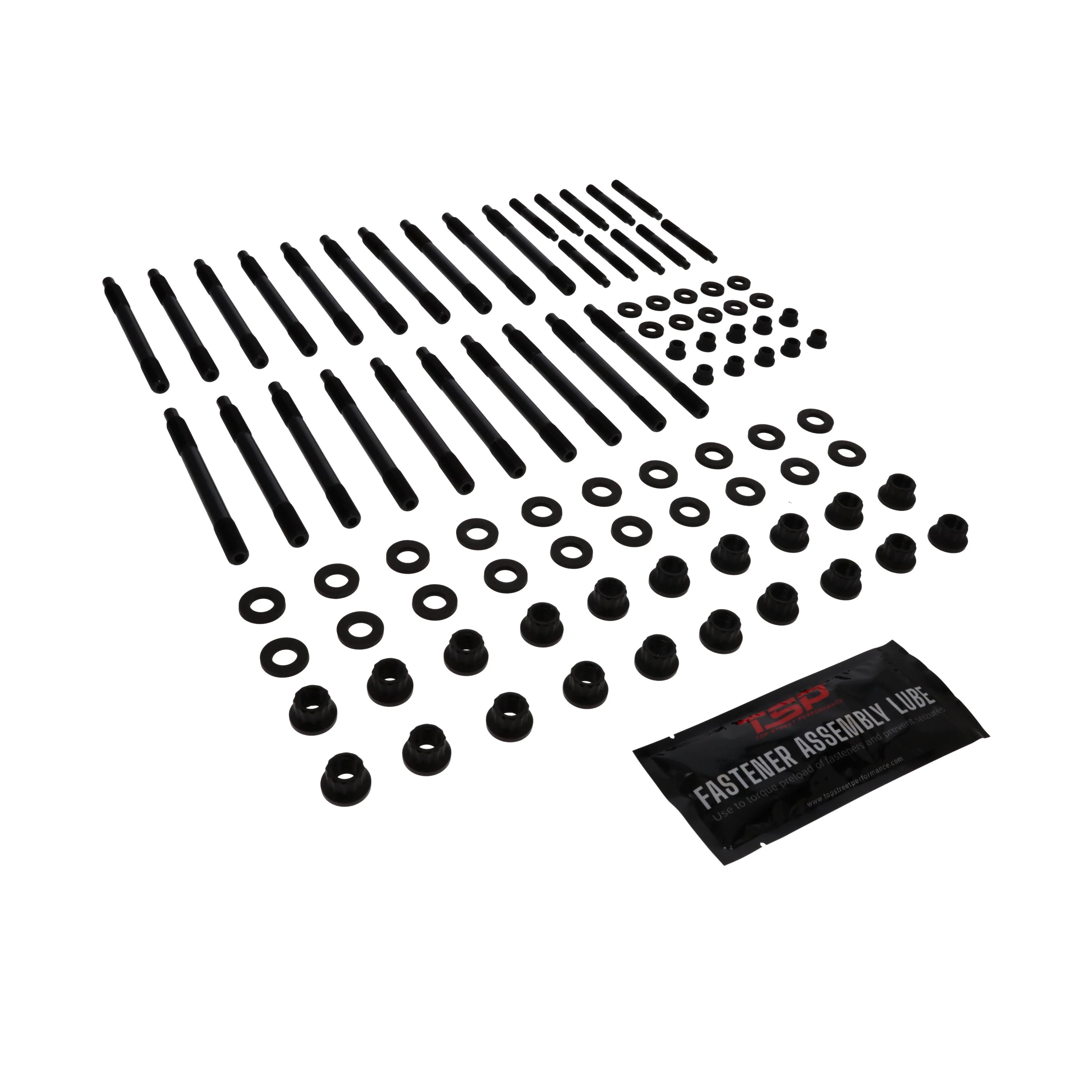

The TSP Pro Series 04-20 LS Cylinder Head 12-Point Stud Kit is engineered for superior strength and reliability. Each fastener is crafted from 35 chromoly steel, delivering a minimum tensile strength of 190,000 PSI to withstand extreme conditions. To enhance durability, the threads are precision-rolled after heat treatment and rigorously tested for both tensile and yield strength. For long-lasting protection, all hardware is finished with a black oxide coating and an oil treatment, effectively preventing rust and corrosion. This high-performance stud kit is designed to provide exceptional clamping force, ensuring a secure and stable cylinder head installation.
COMPATIBLE WITH
GM LS SERIES V8 ENGINES - 2004–2020 STYLE
• 4.8L / 293 in³ (LY2)
• 5.3L / 325 in³ (LM7, L59, LC9, LH6, LY5)
• 6.0L / 364 in³ (LQ4, LQ9, LY6, L76, L96)
• 6.2L / 376 in³ (LS3, L92, L99, L9H)
• 7.0L / 427 in³ (LS7, application-specific verification required)
COMMON VEHICLE APPLICATIONS
Chevrolet Corvette / Camaro (LS equipped)
Chevrolet Silverado / GMC Sierra LS-based trucks
Chevrolet Tahoe / Suburban / GMC Yukon LS-based SUVs
Pontiac G8 / GTO and LS swap applications
NOTES
Designed for 2004–2020 LS cylinder head fastener applications.
Verify correct head bolt/stud style for your block, cylinder head casting, and model year.
Not compatible with 1997–2003 LS applications unless specifically confirmed.
Not compatible with Gen V LT direct-injection engines, Gen I SBC, or Big Block Chevy engines.
Specifications:
| Torque | 75 ft-lbs big, 25 ft-lbs small |
| Color | Black |
| Fastener Style | Stud |
| Grade | Performance |
| Head Style | 12-point |
| Material | 35 Chromoly Steel |
| Quantity | Sold as a kit |
