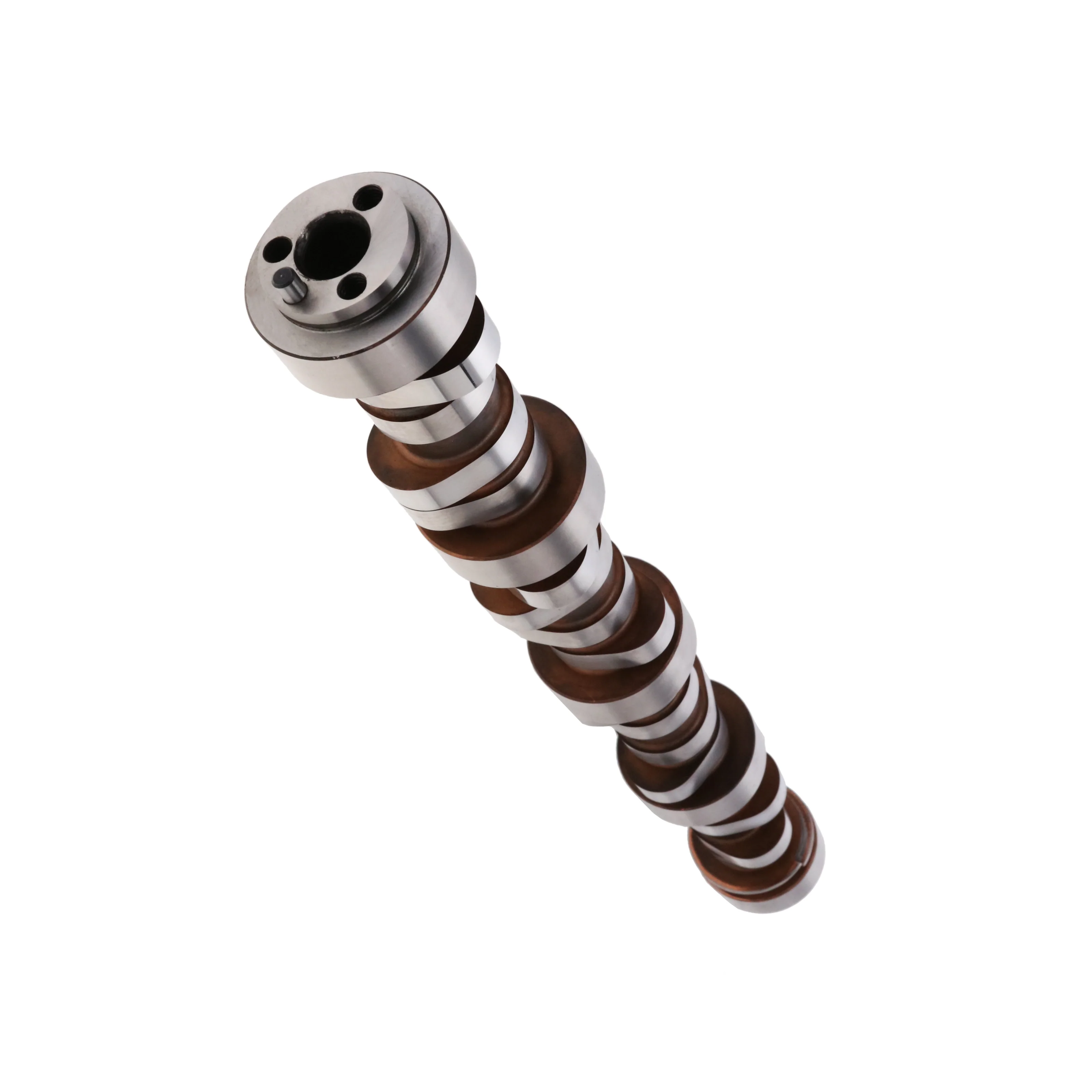

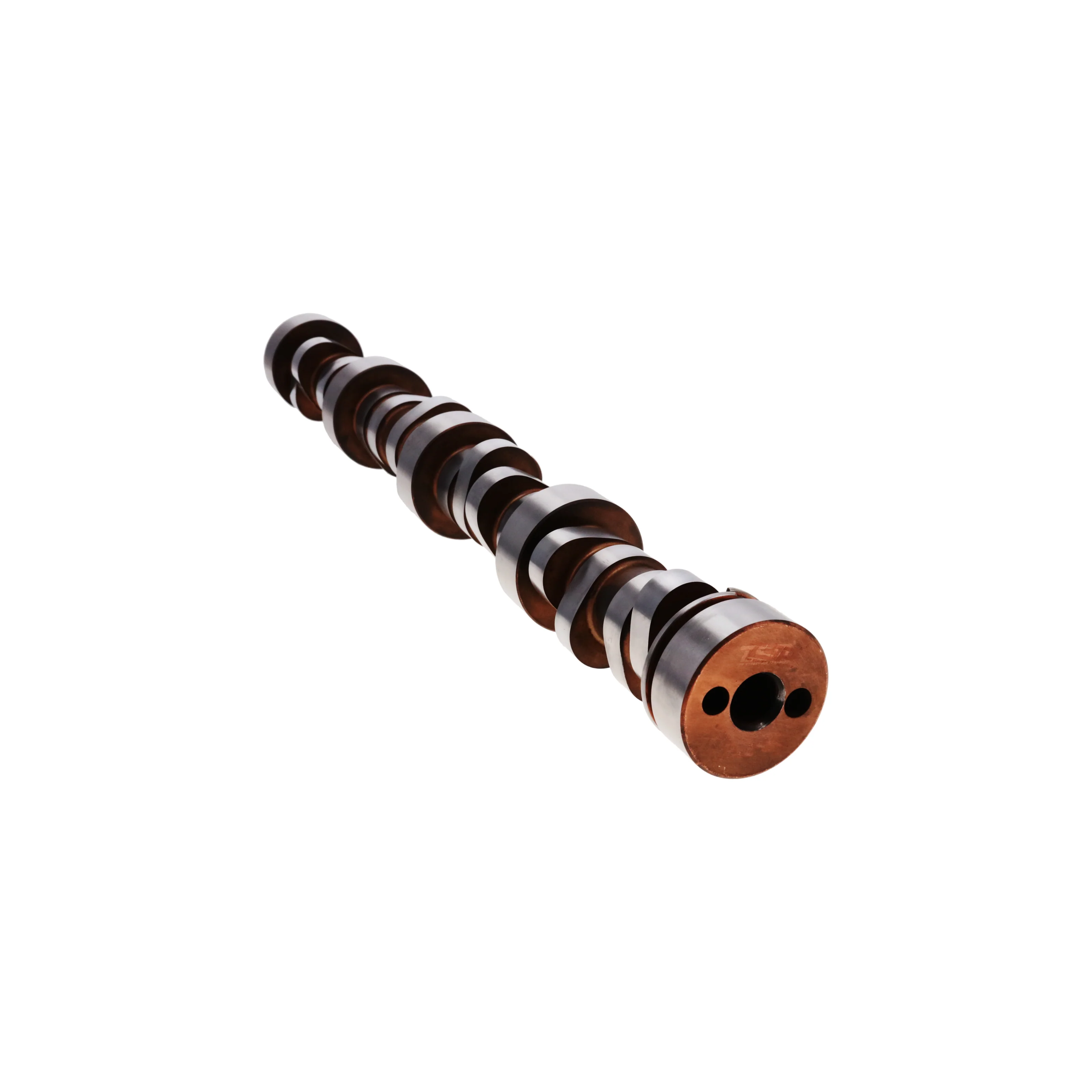

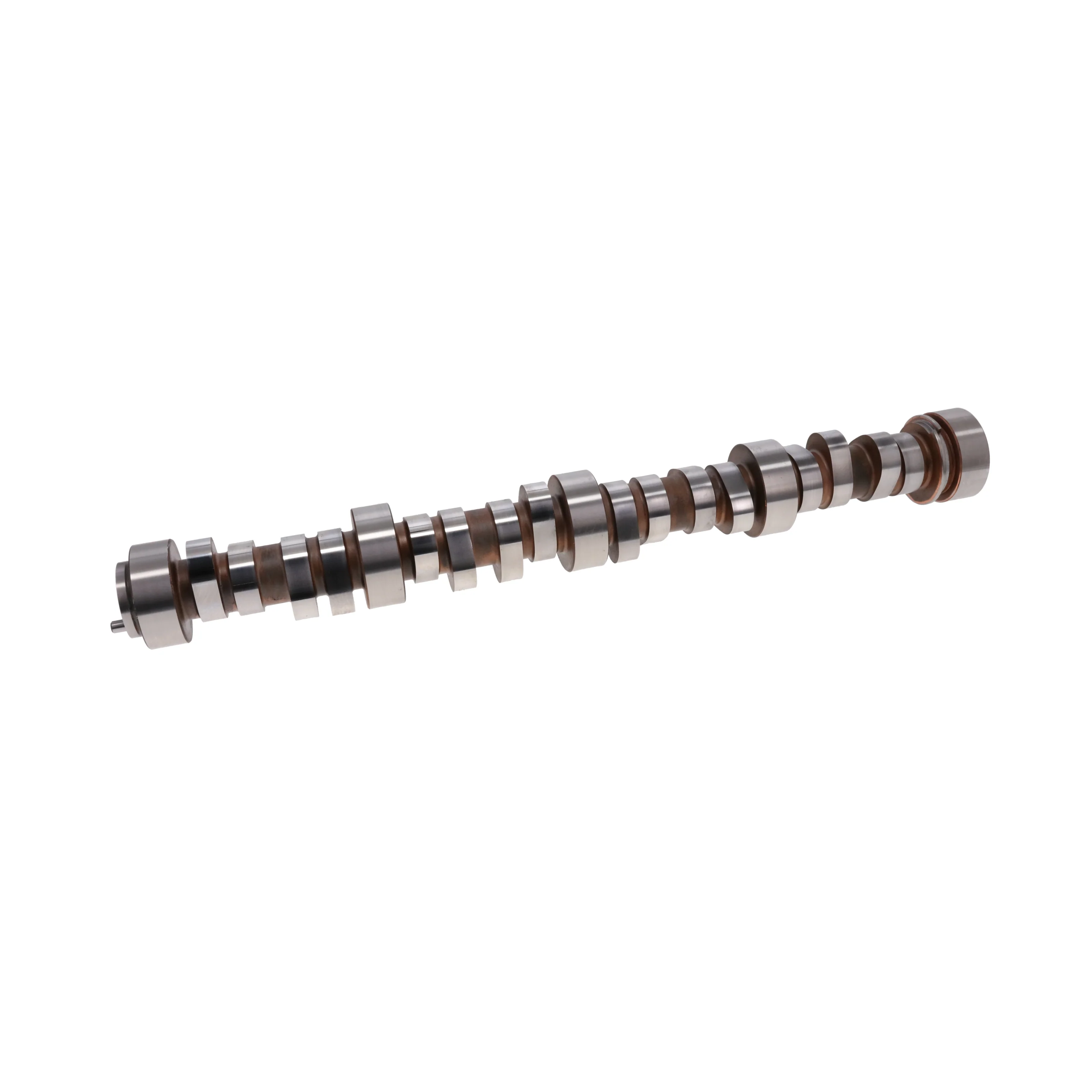

Pro Series 8620 LS Hydraulic Roller Stage 2 Camshaft

Upgrade your GM LS engine with this stage 2 hydraulic roller camshaft engineered for street and performance builds. Designed to improve airflow, throttle response, and power across the RPM range, this camshaft delivers a stronger, more aggressive performance profile.

Performance Gains & Powerband Optimization
With 216° intake / 224° exhaust duration, 0.553" intake / 0.553" exhaust lift, 108° lobe separation, this camshaft profile is designed to increase horsepower and torque while matching the intended powerband of 1,500-6,000 RPM.

Hydraulic Roller Valvetrain Design
Hydraulic Roller construction supports stable valvetrain operation and efficient performance in modern GM LS engine combinations.

Durable Performance Construction
8620 Carburized Nickel Chromium Molybdenum construction provides strength and reliability for demanding street, strip, and performance engine builds.

Installation & Supporting Components
Proper tuning, piston-to-valve clearance verification, and matching valvetrain components are recommended. Recommended valve springs: LS6 Factory style Style.

COMPATIBLE WITH
GM LS SERIES V8 ENGINES
• 4.8L / 293 in³ (LR4, LY2)
• 5.3L / 325 in³ (LM7, L59, L33, LC9, LH6, LY5, LMG)
• 5.7L / 346 in³ (LS1, LS6)
• 6.0L / 364 in³ (LQ4, LQ9, LY6, L76, L96)
• 6.2L / 376 in³ (LS3, L92, L99)

COMMON VEHICLE APPLICATIONS
Chevrolet Silverado / GMC Sierra (LS equipped)
Chevrolet Camaro / Corvette (LS equipped)
Chevrolet Tahoe / Suburban / Yukon (LS equipped)
Pontiac GTO / G8 (LS equipped)

NOTESs:
Designed for GM Gen III/IV LS-based engines.
Verify cam gear, timing set, sensor, and VVT/non-VVT compatibility before installation.
Camshaft applications require proper valve springs, ECU tuning, and piston-to-valve clearance verification.
Not compatible with Gen I Small Block Chevy, Gen V LT direct-injection, or Big Block Chevy engines.

Specifications:
Basic Operating RPM Range: 1,500-6,000 RPM
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 3-bolt
Computer Controlled Compatible: Yes
Exhaust Duration at .050 inch Lift: 224 deg.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.553 in.
Grade Type: Performance
Intake Duration at .050 Inch Lift: 216 deg.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.553 in.
Lifter Type: Hydraulic Roller
Lobe Separation: 108 deg.
Material: 8620 Carburized Nickel Chromium Molybdenum
Performance Level: Stage 2
Valve Springs Required: LS6 Factory style Style
