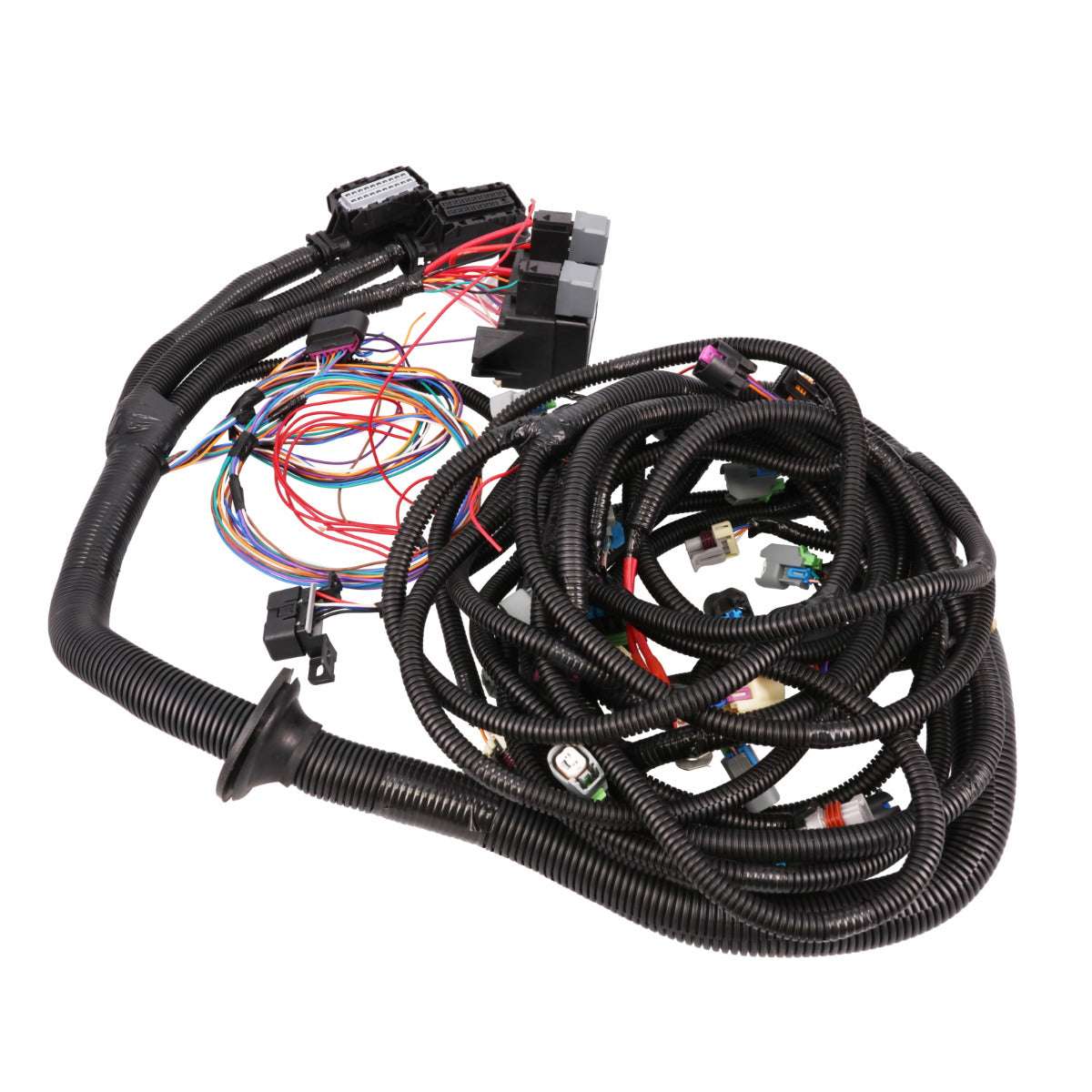

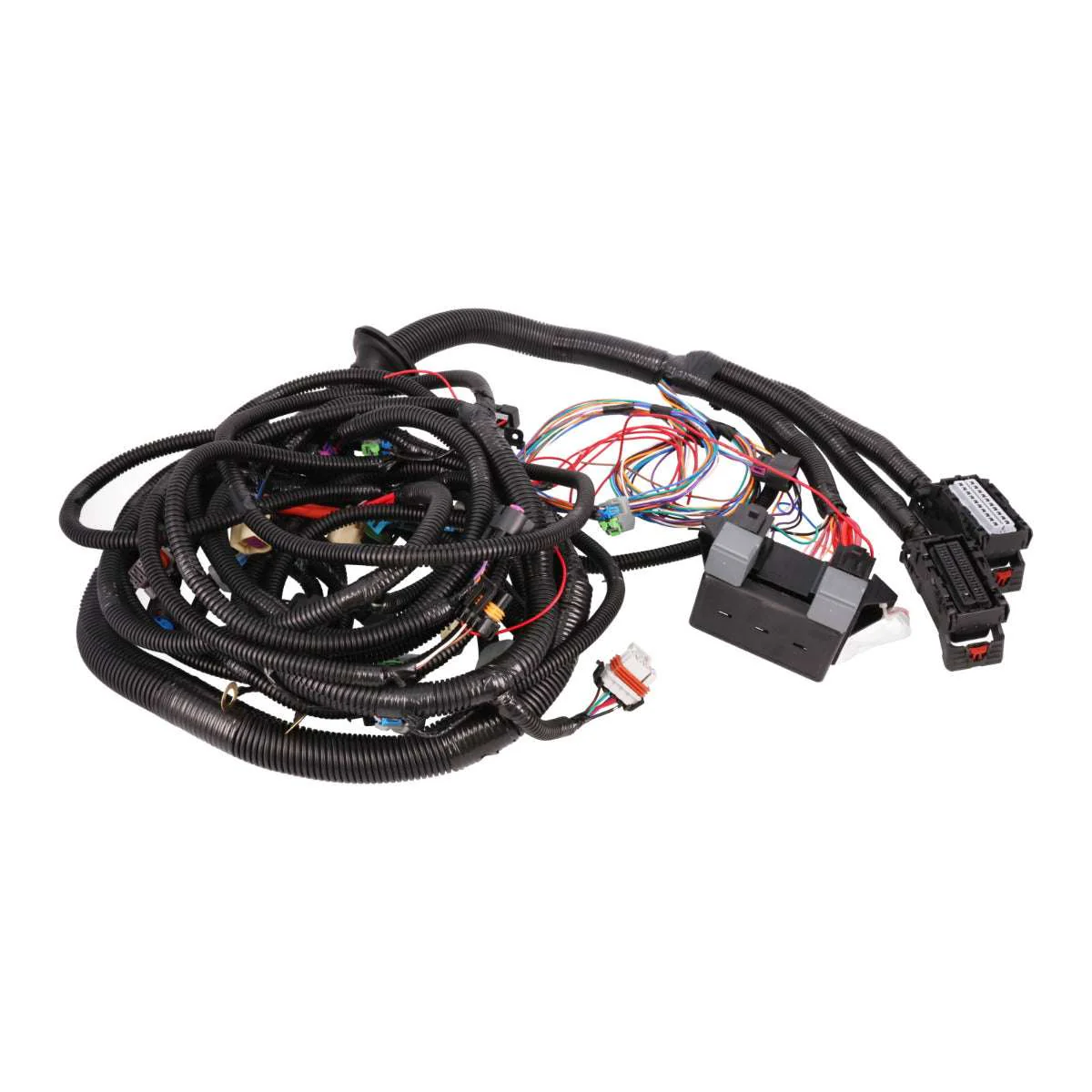

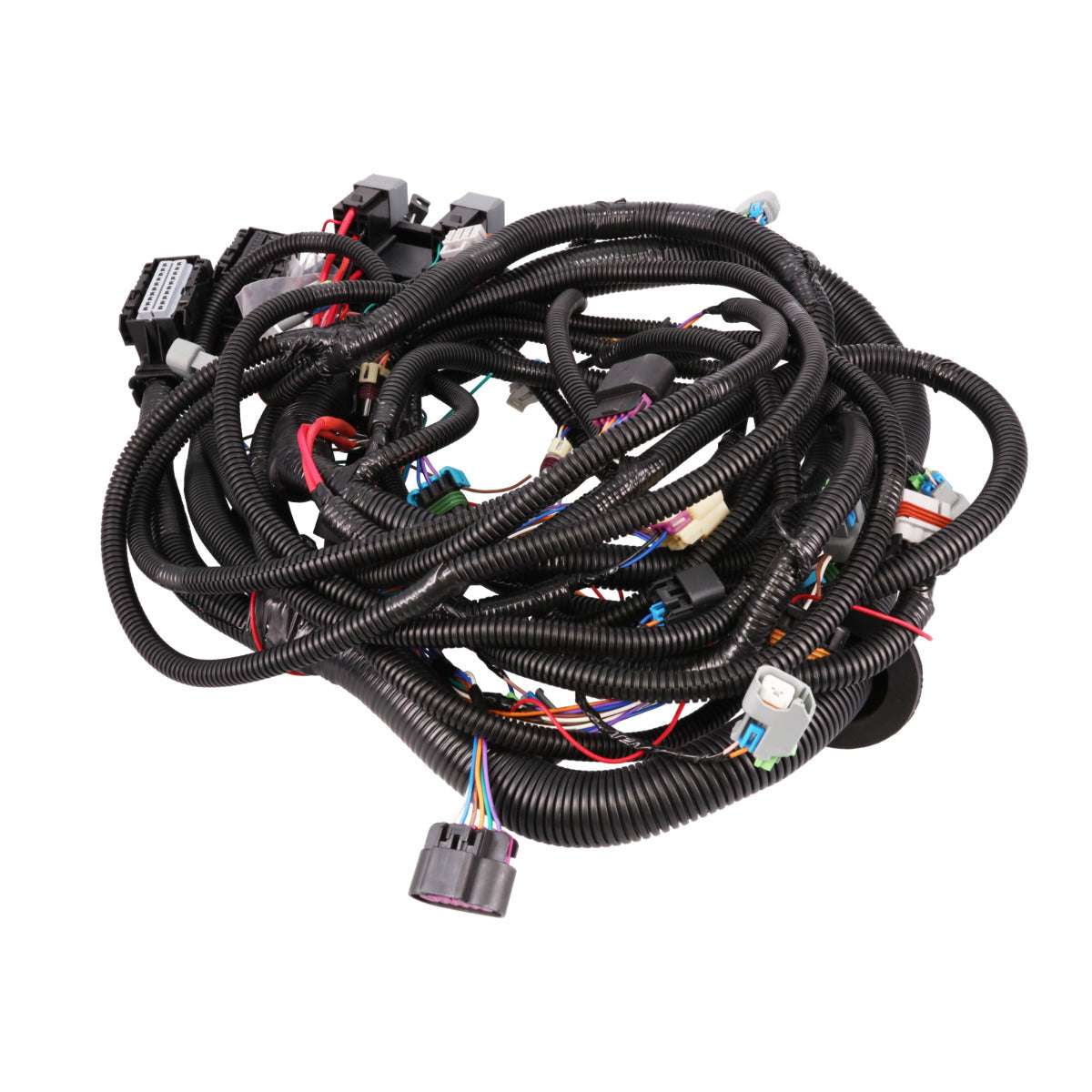

GM Standalone LY6, L92 Drive by Wire Engine and Standard Trans Wiring Harness

An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That's where TSP's engine and transmission wiring harness comes in. It is designed for LY6 (6.0 L) and L92 (6.2 L) engines from '09 - '14 drive-by-wire GM trucks with T56/TR6060 manual transmissions.

Compatible with:
'09-14 Trucks*

*Fits drive-by-wire applications with LY6 and L92 engines and T56/TR6060 manual or non-electronic automatic (700R4, 200-4R, Powerglide, TH350, TH400) transmissions

Specifications:
Throttle: Drive-by-Wire
Injector Plug Style: EV6
Harness Length: Standard
Fuse Block Included: Yes
Quantity: Sold as a Kit
Included Connectors: Fuse/Relay Box Fuel Pump Control Fan Controls Check Engine Light, Speedometer, Tachometer, OBD2 Accelerator Pedal and Throttle Body Control MAF Sensor MAP Sensor Engine Coolant Temp Sensor Alternator Control (2) Upstream Oxygen Sensors Crankshaft Position Camshaft Position Fuel Injectors Coil Packs Transmission Control Knock Sensors
