V Series GM LS Serpentine Front Drive System Brackets, Pulleys, and Belt Tensioner - Polished

TSP's V Series billet aluminum LS front drive brackets and pulleys are an excellent way to upgrade your engine. It includes the belt tensioner, and comes configured for a CS130 style alternator, Sanden SD-7 style compressor, GM Type II power steering pump, and customer hub water pump. It is available in black and polished finishes.

Compatible with

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-Based)
• 5.7 L / 346 in3 LS1
• 5.7 L / 346 in3 LS6
• 6.0 L / 364 in3 LS2
• 6.2 L / 376 in3 LS3*
NOTES
•Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws.
•Will not fit VVT engines, as they are fitted with a larger timing cover. Will not work with hydroboost systems.
•Due to the relocation of certain accessories, may not fit in stock applications.

Specifications:
A/C Compressor Clutch Cover Included: Yes
A/C Compressor Type: SD-7 Style
Alternator Pulley Included: Yes
Alternator Type: CS130 Style
Belt Included: Yes

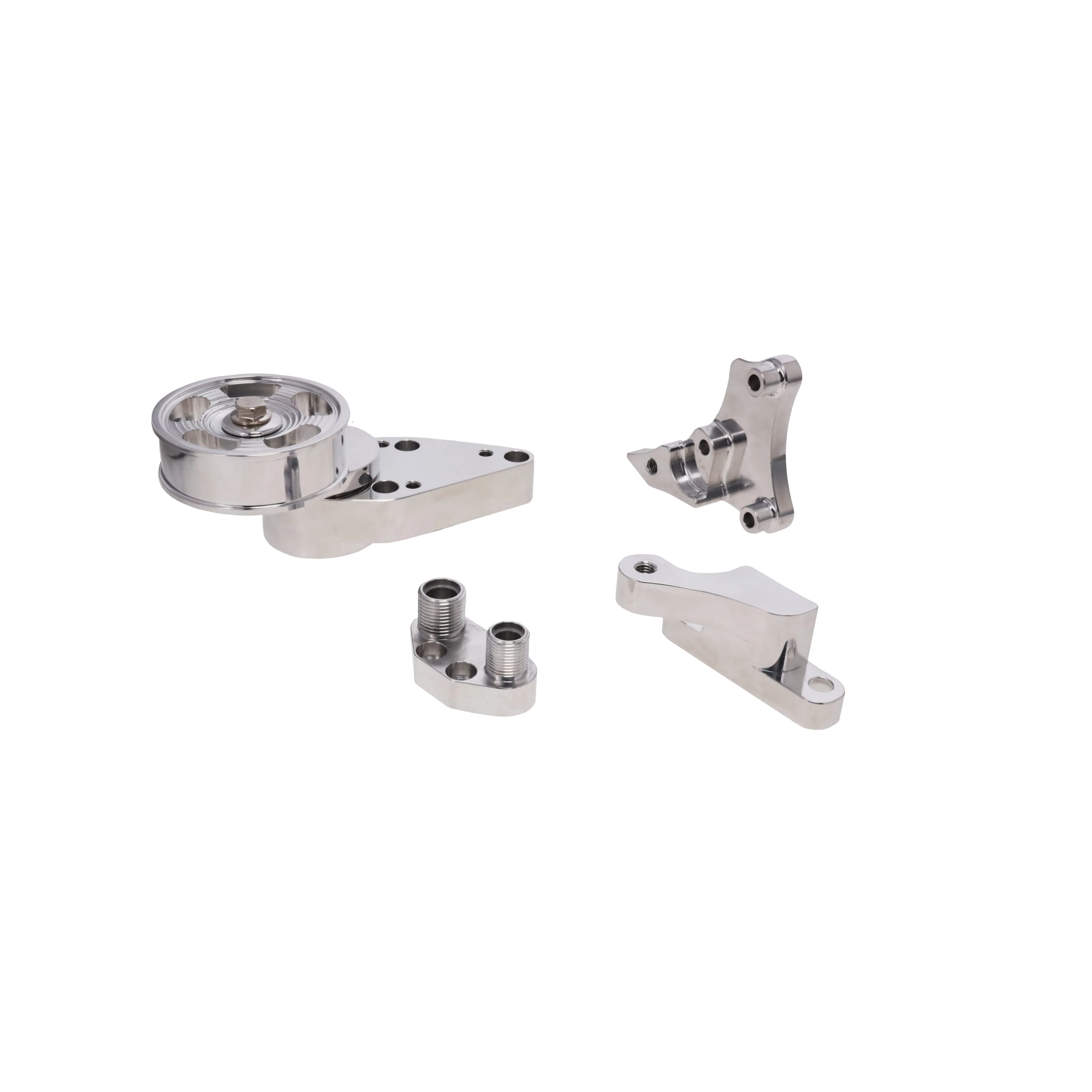

Belt Tensioner Included: Yes
Belt Tensioner Type: Custom Design
Bracket Color: Polished

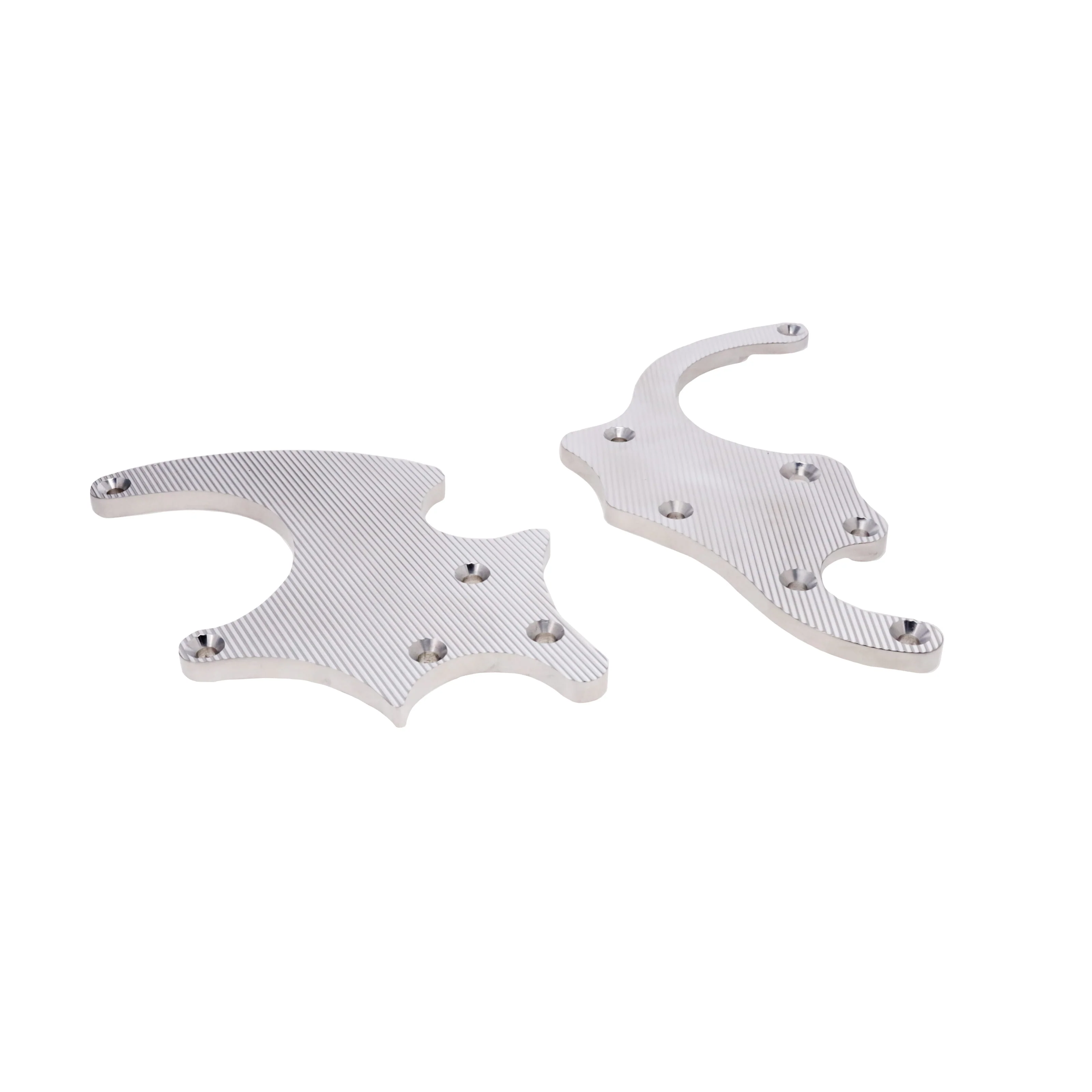

Bracket Material: Aluminum
Crankshaft Pulley Included: Yes

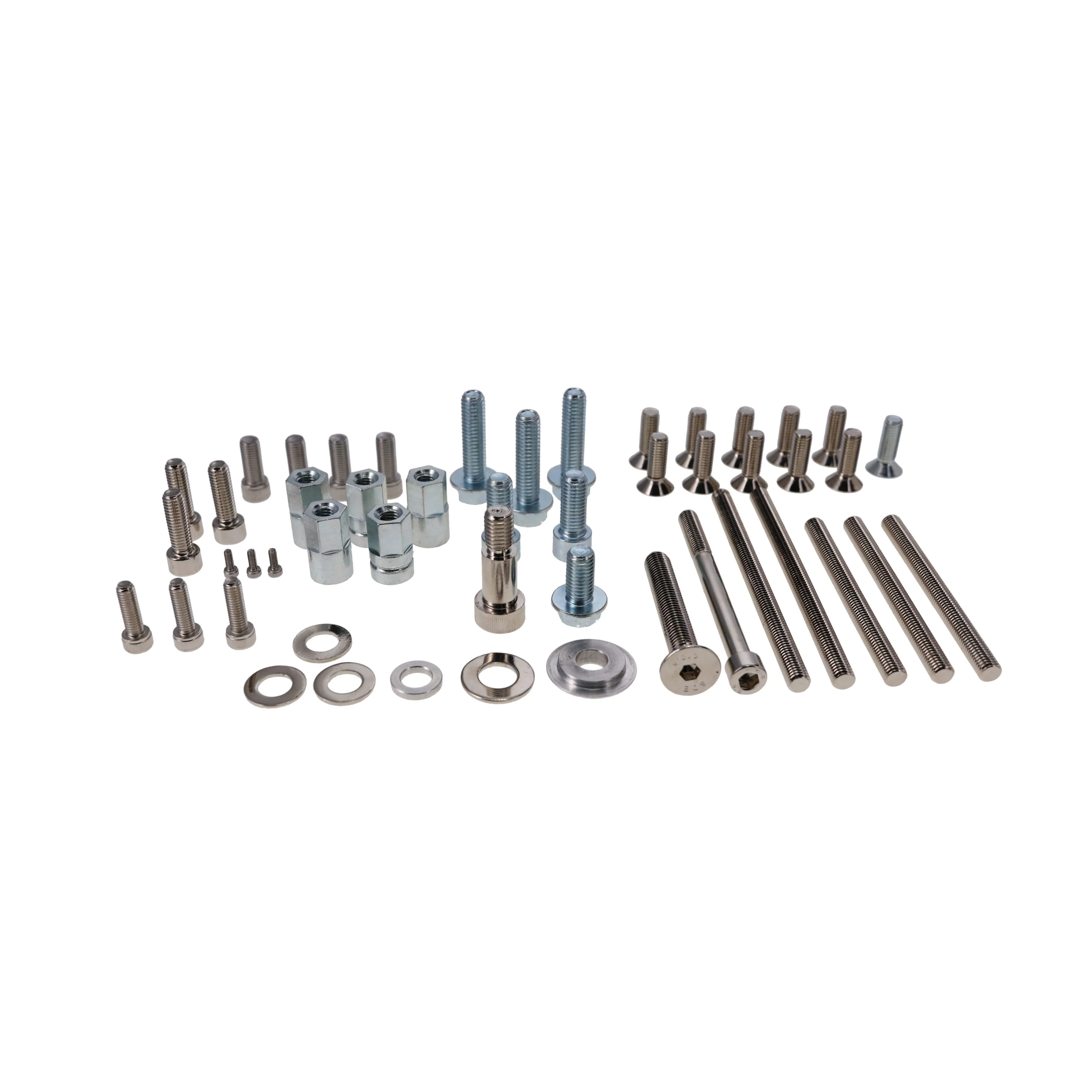

Hardware Included: Yes
Harmonic Balancer Included: Yes
Power Steering Pump Pulley Included: Yes
Power Steering Pump Type: Type 2 (TC Series) Style
Pulley Color: Polished
Pulley Groove Quantity: 6
Pulley Material: Aluminum
Spacers Included: Yes
Universal Or Specific Fit: Specific
Water Pump Pulley Included: Yes
Water Pump Type: Customized OE Style
