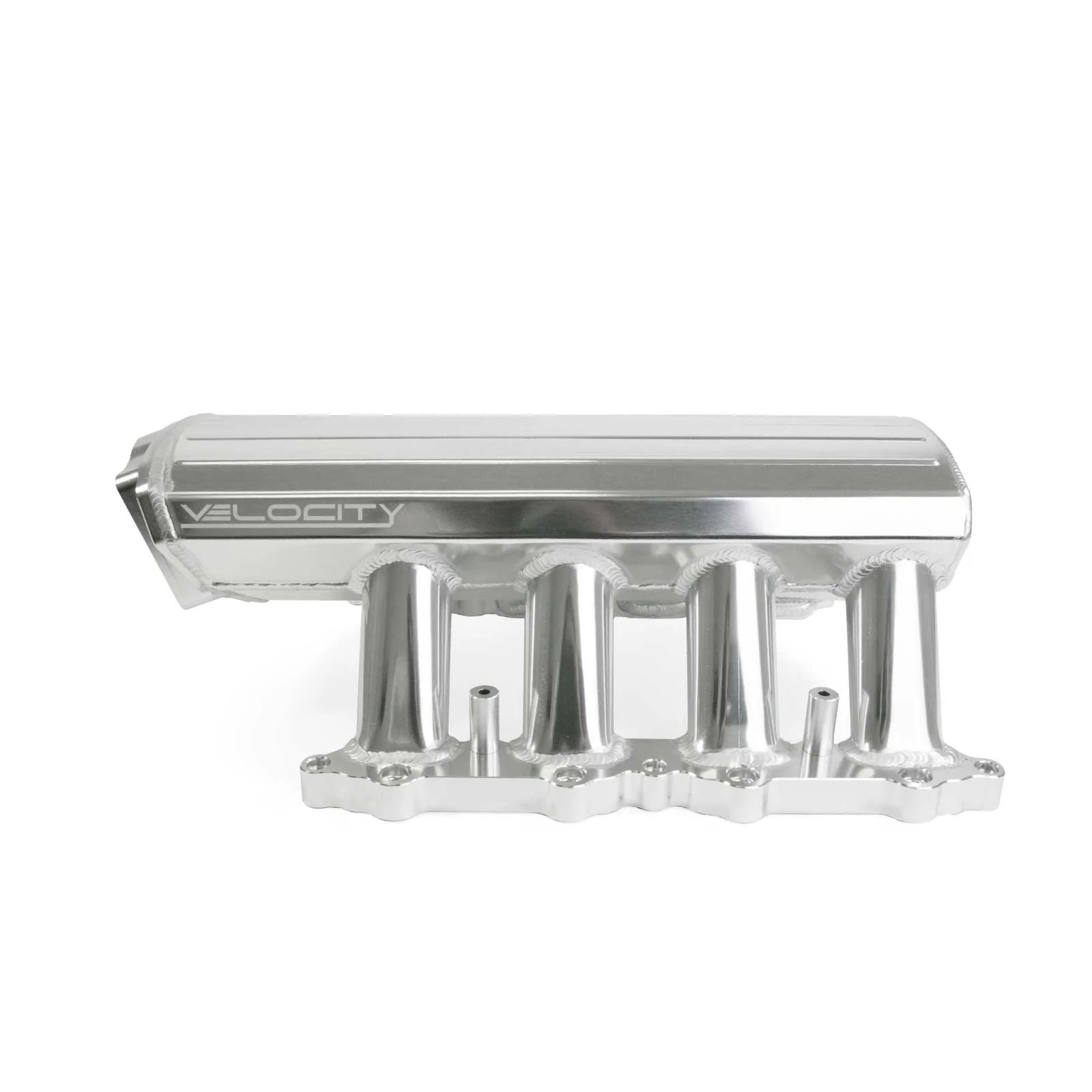

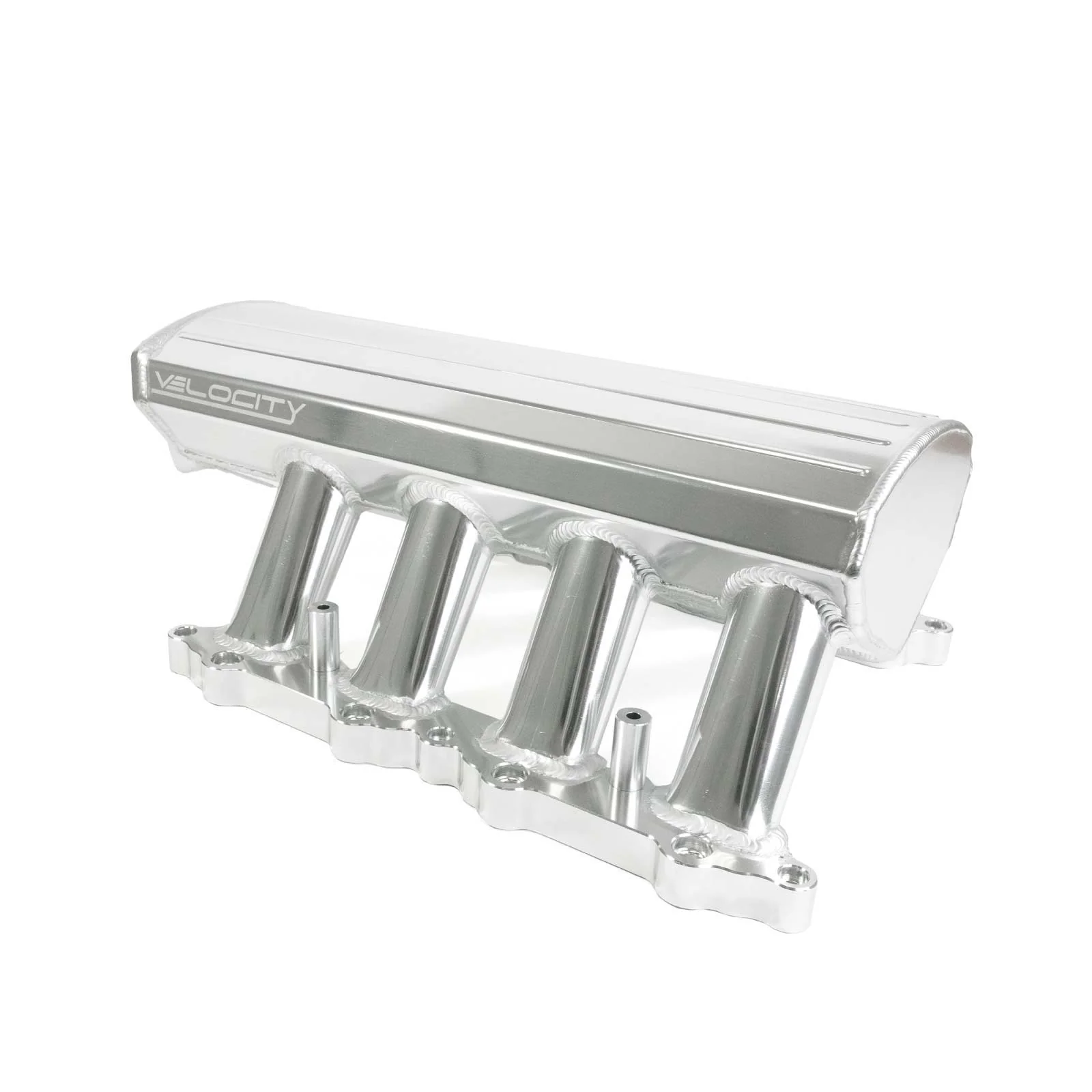

Velocity Ford 5.0L Coyote EFI Fabricated Aluminum Sheet Metal Intake Manifold - Clear Anodized

We designed our Velocity fabricated aluminum sheet metal intake manifold to improve the look and performance of your Coyote engine. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body. Available in clear or black anodized finishes, this manifold will also give your engine bay a nice, clean aesthetic.

Quality Construction
The first thing people notice when taking a closer at our Velocity intake manifold is the beautiful TIG (tungsten inert gas) welding throughout - all done by hand. This ensures solid construction that won't fail under stress. The head flanges are 7/16" thick, and the plenum is constructed of 3.5mm T-6061 aluminum, which means it can easily handle up to 25 lbs of boost - more than enough for most street performance applications.

Intelligent Design
In addition to the premium build quality, our fabricated manifold includes intelligent design features that set it apart from the rest. A 90mm throttle body opening and velocity-stacked intake runners guarantee maximum airflow for high-horsepower applications, and individual port o-rings ensure a tight seal to your cylinder heads. We designed the manifold to easily anywhere the Boss manifold would have been, which means Compatible with won't be an issue.

Compatible with:
FORD MODULAR V8
• 5.0 L / 302 in3 "Coyote"

NOTE: As this uses the stock 4-bolt throttle body bolt pattern, it will not fit TSP throttle bodies.

Specifications:
Basic Operating RPM Range: 2,000-6,500 RPM
Center Maximum Height: 8.000 in.
Color: Clear Anodized
Deck Height: Standard
Front Maximum Height: 8.000 in.
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: EV1
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Oval with Dimple
Material: Aluminum
Plenum Material: Aluminum
Plenum Thickness: 3.50 mm
Rear Maximum Height: 8.000 in.
Runner Length: 5.000 in.
Supplemental Boss Quantity: 4
Throttle Body Bore Size: 90 mm
