Chevy Small Block Serpentine Conversion - AC Alternator & Power Steering Long Water Pump - Polished

Chevy Small Block Serpentine Conversion
for AC & Power Steering Applications

Long Water Pump (LWP)

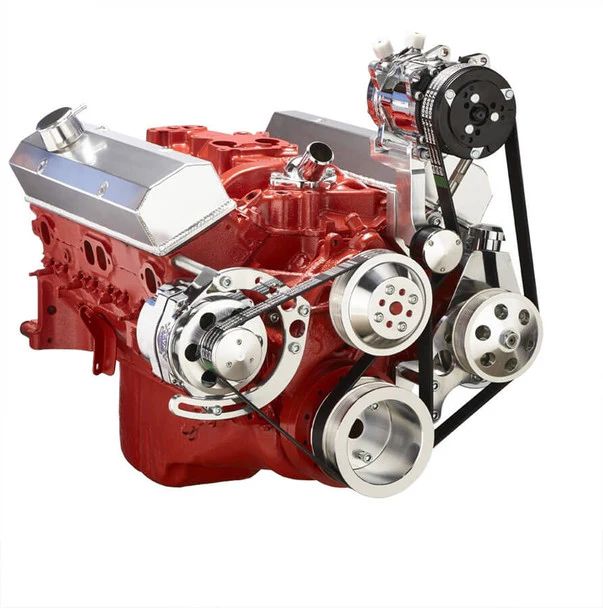

The BEAST^TM 8 Track Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a mid-mount configuration. Uses standard Chevy long water pump.

Kit Includes:

• 1 Belt Water Pump Pulley
• 2 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Idler Pulley
• Passenger Side Alternator Bracket
• Driver Side Power Steering Bracket
• Driver Side AC Compressor Bracket
• 1 Belt Power Steering Pulley (Keyway Style)
• ALTFAN - Universal alternator fan

AC Compressor, Power Steering Pump, Alternator and Water Pump NOT included

Compatible with:
Small Block Chevy engines with Air Conditioning, Power Steering and Alternator.
• 4.6 L / 283 in³
• 4.9 L 302 in³
• 5.0 L / 305 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³

Product Type	Beast - Serpentine Conversion
Alternator Position	Mid - Passenger
Power Steering	Yes - Saginaw
Air Conditioning	High - Driver
Compressor Type	Sanden 508
Finish	Polished
Belt Type	Serpentine 8 Rib
Water Pump Type	Mechanical
Water Pump	Long
Water Pump Rotation	Standard
Make	Chevy
Engine	350 Small Block
