Chevy Small Block Serpentine Conversion
for AC & Power Steering Applications

283-302-305-350-400 CID | Long Water Pump (LWP) | Polished Finish

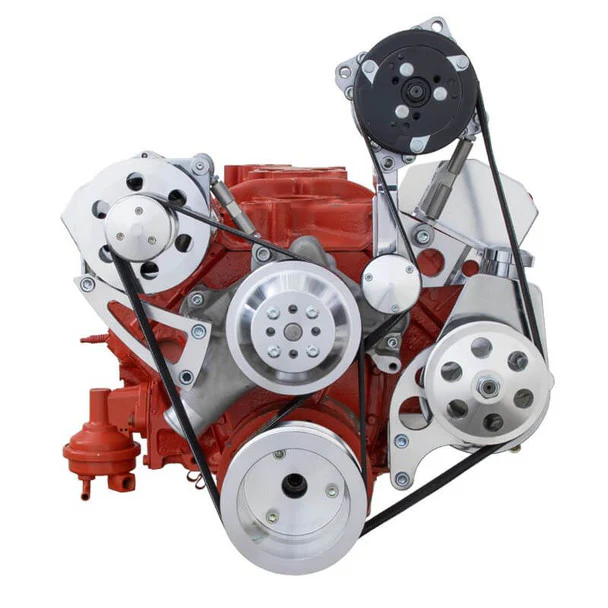

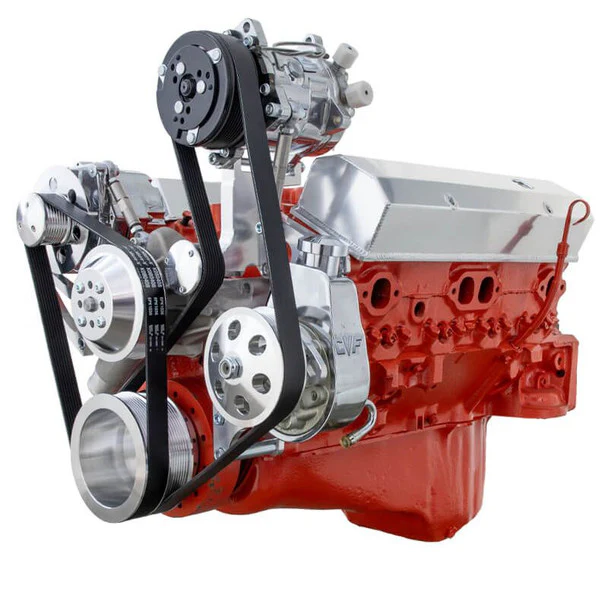

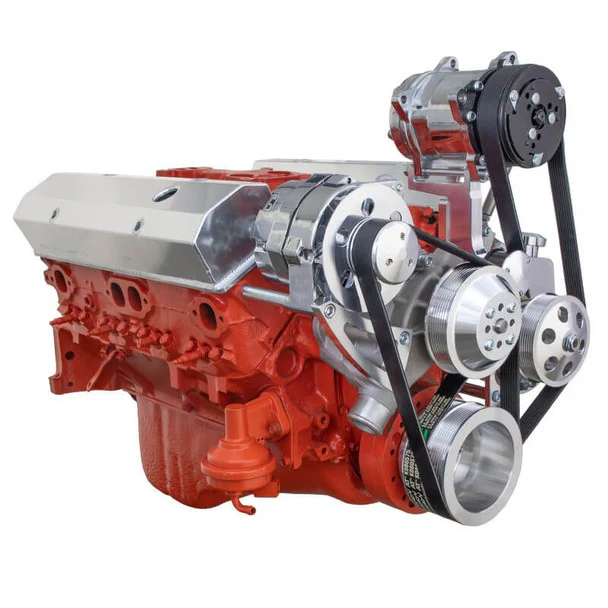

The BEAST™ 8 Track Serpentine System for Small Block Chevy engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slippage when compared to traditional 6 Rib designs. Mounts Saginaw P Series Power Steering pump low on driver side and puts a Sanden 508 style AC Compressor up on the driver side above the power steering pump. (AC Compressor clear tall valve covers) Places the alternator on the passenger side in a high-mount configuration. Uses standard Chevy long water pump.

KIT INCLUDES:

• 1 Belt Water Pump Pulley
• 2 Belt Crank Pulley
• 1 Belt Alternator Pulley
• 1 Belt Idler Pulley
• Passenger Side Alternator Bracket
• Driver Side Power Steering Bracket
• Driver Side AC Compressor Bracket
• 1 Belt Power Steering Pulley (Keyway Style)
• ALTFAN - Universal alternator fan

Applications Notes:

• Requires use of Small Block Chevy Long Water Pump
• Compatible with mechanical or electric fans (recommended)
• Requires use of Sanden Style 508 AC Compressor w/ 8 Rib Clutch
• Requires use of Saginaw Style Power Steering Pump w/ Keyway shaft

AC COMPRESSOR, POWER STEERING PUMP, ALTERNATOR AND WATER PUMP NOT INCLUDED

Compatible with:
Small Block Chevy engines with Air Conditioning, Power Steering and Alternator.
4.6L / 283 in³
4.9L / 302 in³
5.0L / 305 in³
5.7L / 350 in³
6.6L / 400 in³

Alternator Position	High - Passenger
Power Steering	Yes - Saginaw
Air Conditioning	High - Driver
Compressor Type	Sanden 508
Finish	Polished
Belt Type	Serpentine 8 Rib
Water Pump Type	Mechanical
Water Pump	Long
Water Pump Rotation	Standard
Make	Chevy
Engine	350 Small Block
Product Type	Beast - Serpentine Conversion
