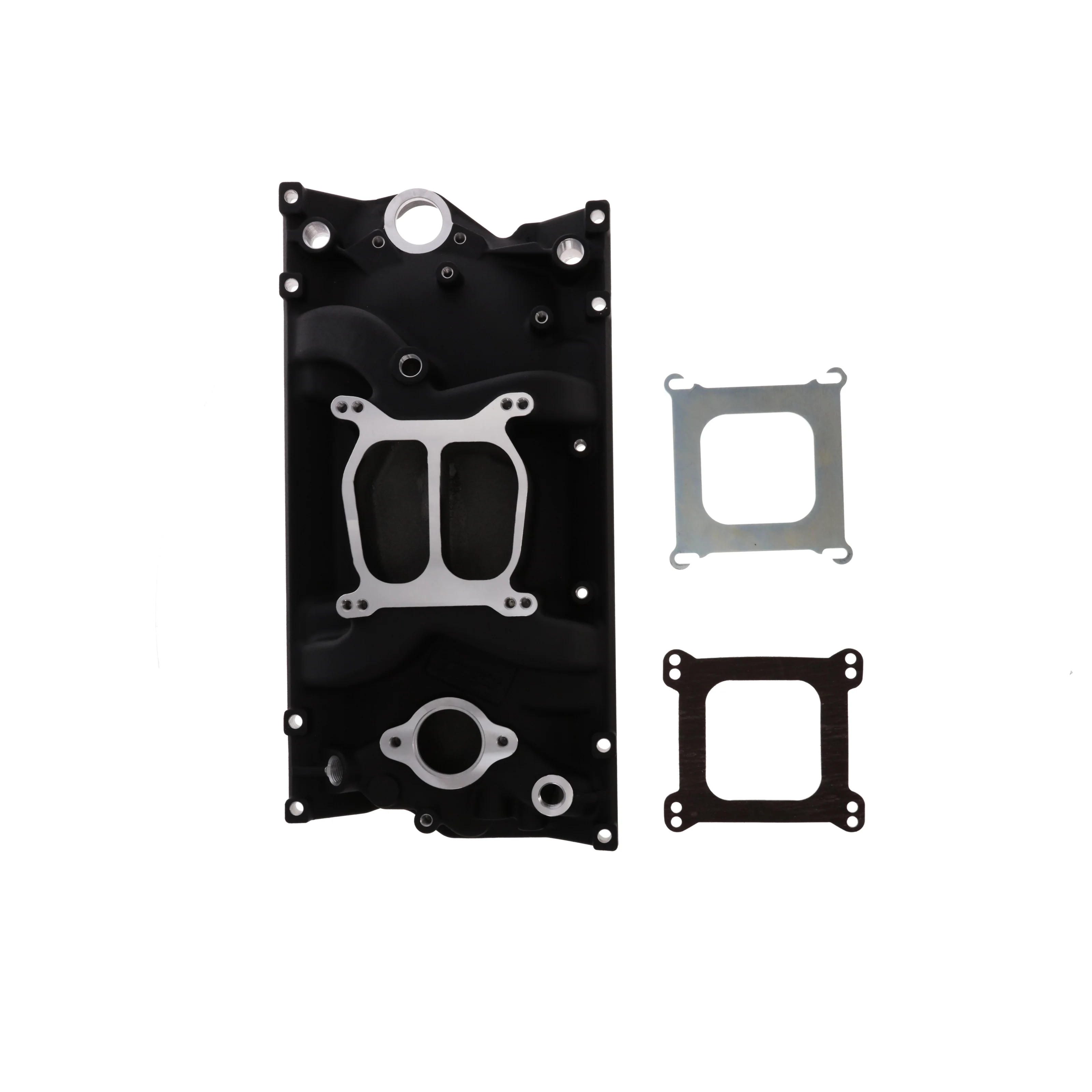

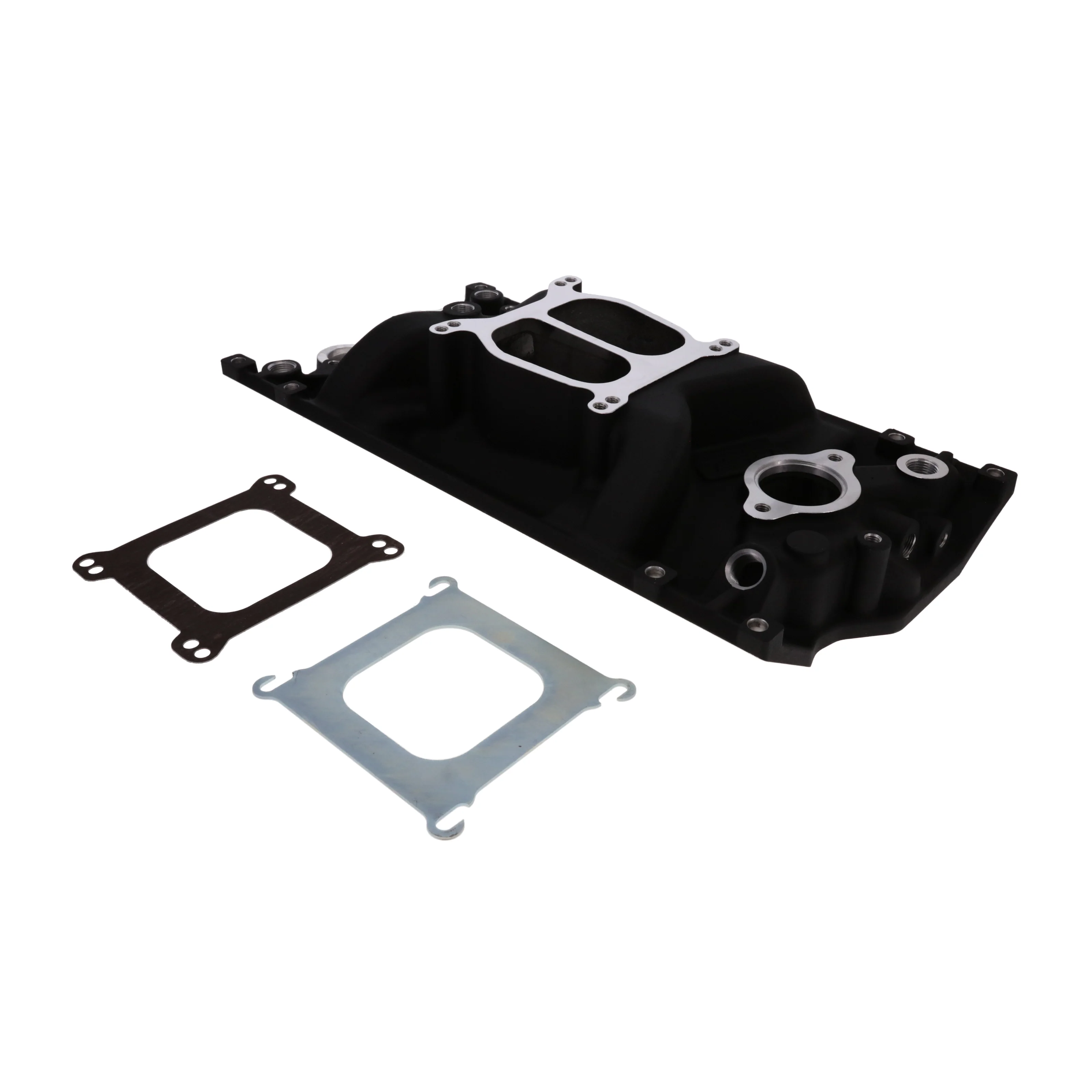

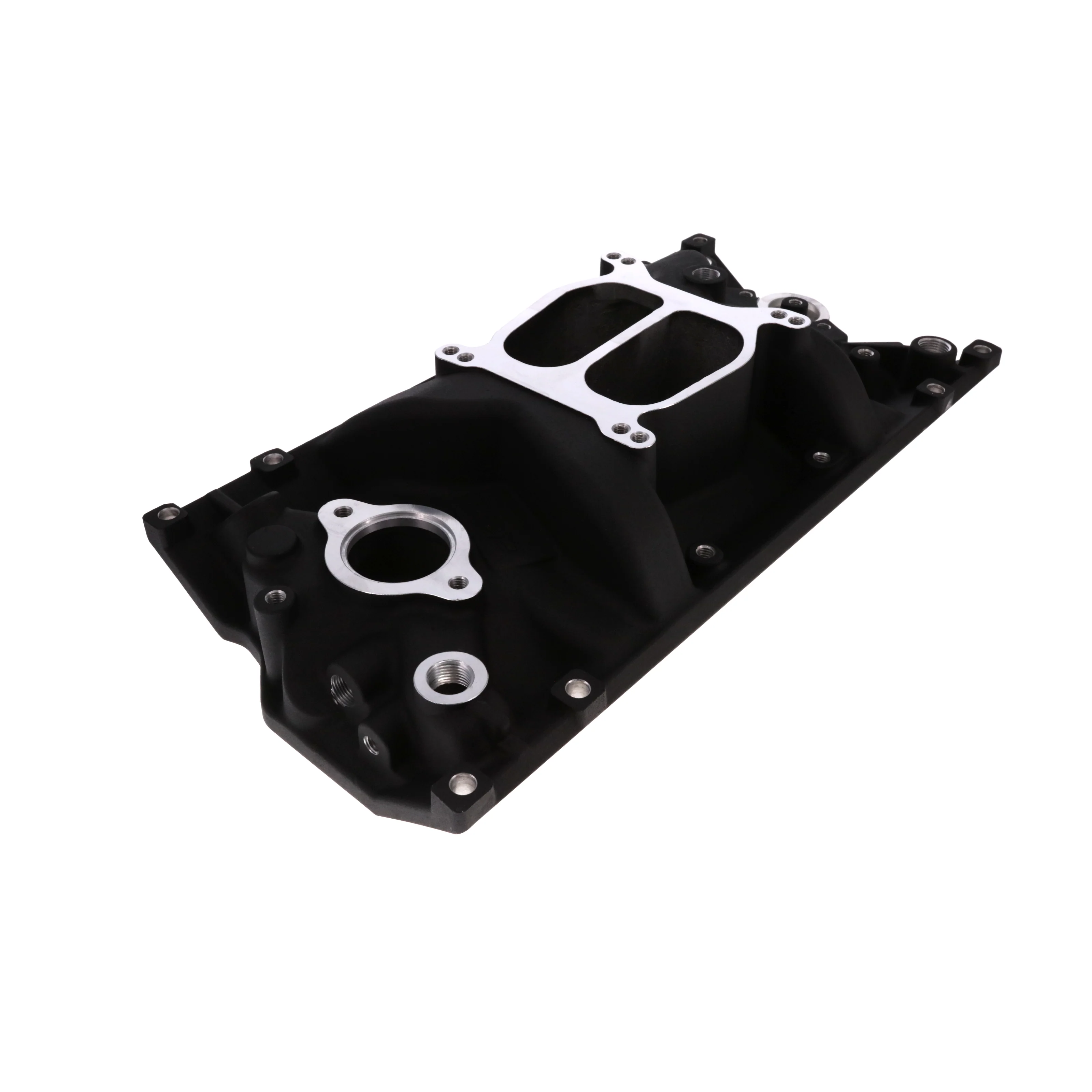

Chevy Small Block Vortec Carbureted Aluminum Dual Plane Intake Manifold - Black

TSP's dual-plane high-performance intake manifold for the Vortec small block Chevy is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.

Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in3
• 5.7 L / 350 in3

NOTES:
Fits 1996-2002 Chevy small block Vortec engines.
As Vortec blocks do not have a water bypass, manifold is equipped with a provision to connect it to stock a water pump using a 5/8" heater hose.

Specifications:
Basic Operating RPM Range: Idle-5,500 RPM
Carburetor Flange Style: Spread Bore (4150 Square Bore with Included Adapter)
Carburetor Quantity: 1
Center Maximum Height: 4.570 in.
CNC Ported: No
Color: Black
Deck Height: Standard
EGR: No
Front Maximum Height: 3.870 in.
Fuel System Type: Carbureted
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Shape: Rectangle
Material: Aluminum
Rear Maximum Height: 5.280 in.
Single Or Dual Plane Type: Dual Plane
