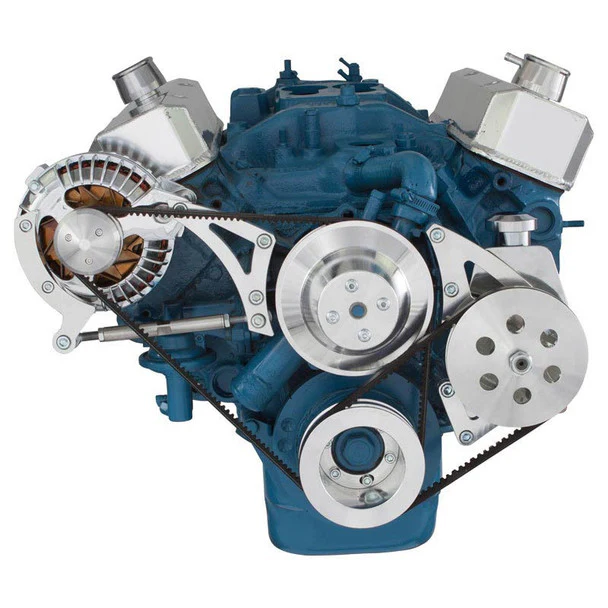

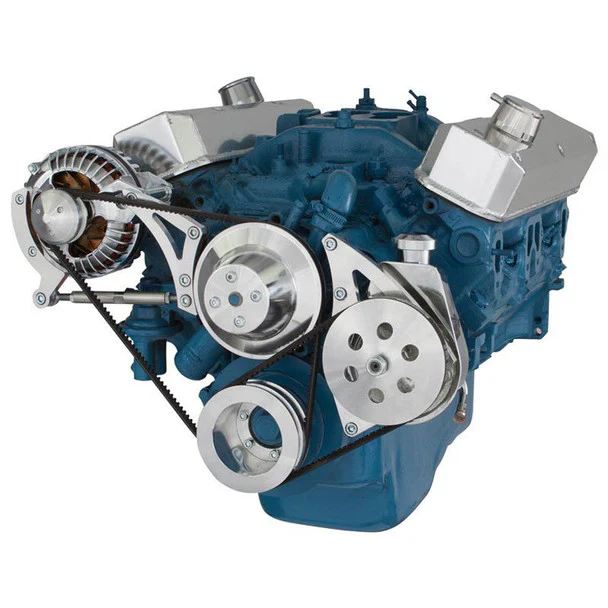

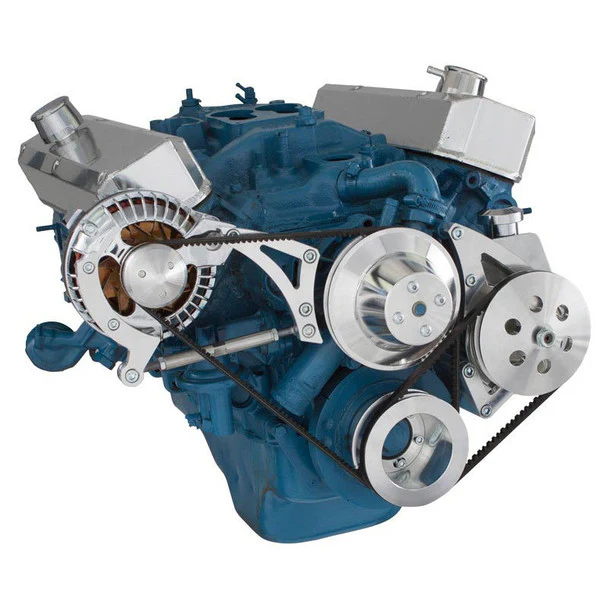

Chrysler Small Block Power Steering & Alternator System (318, 340 & 360) - Polished

Chrysler Small Block 360 Alternator & PS Pulley and Bracket System

Complete V-belt system for the small block Chrysler engines with alternator and power steering.

Kit Includes:

• SCRL2KIT (2 Groove Crank Pulley, 1 Groove Water Pump Pulley and 1 Groove Alternator Pulley)
• 360-ALTBRKT
• 360-PSBRKT
• SCR3PS keyway power steering pulley

Application Notes:

• Use with Chrysler square or round back alternator, or with either the GM 10SI Alternator or CS130 Alternator.
• Compatible with Hydroboost.
• Waterpump to Balancer measurement: 4.5"
• Requires a Chrysler water pump from 1970 and beyond or a CVF water pump.
• Use with Sanden 508 Style AC compressor.
• Use with Saginaw P-Series power steering pump with 5/8" Keyway and mounting stud in lower right corner on the back of the pump (see image below). Power Steering pump not included with system.

Compatible with:
Small Block Chrysler Engines with Alternator and Power Steering.
• 5.2 L / 318 in³
• 5.6 L / 340 in³
• 5.9 L / 360 in³

Product Type	V-Belt System
Alternator Position	Mid - Passenger
Power Steering	Yes - Saginaw
Air Conditioning	None
Finish	Polished
Belt Type	V-Belt
Water Pump Type	Mechanical
Make	Chrysler
Engine	360 Small Block
