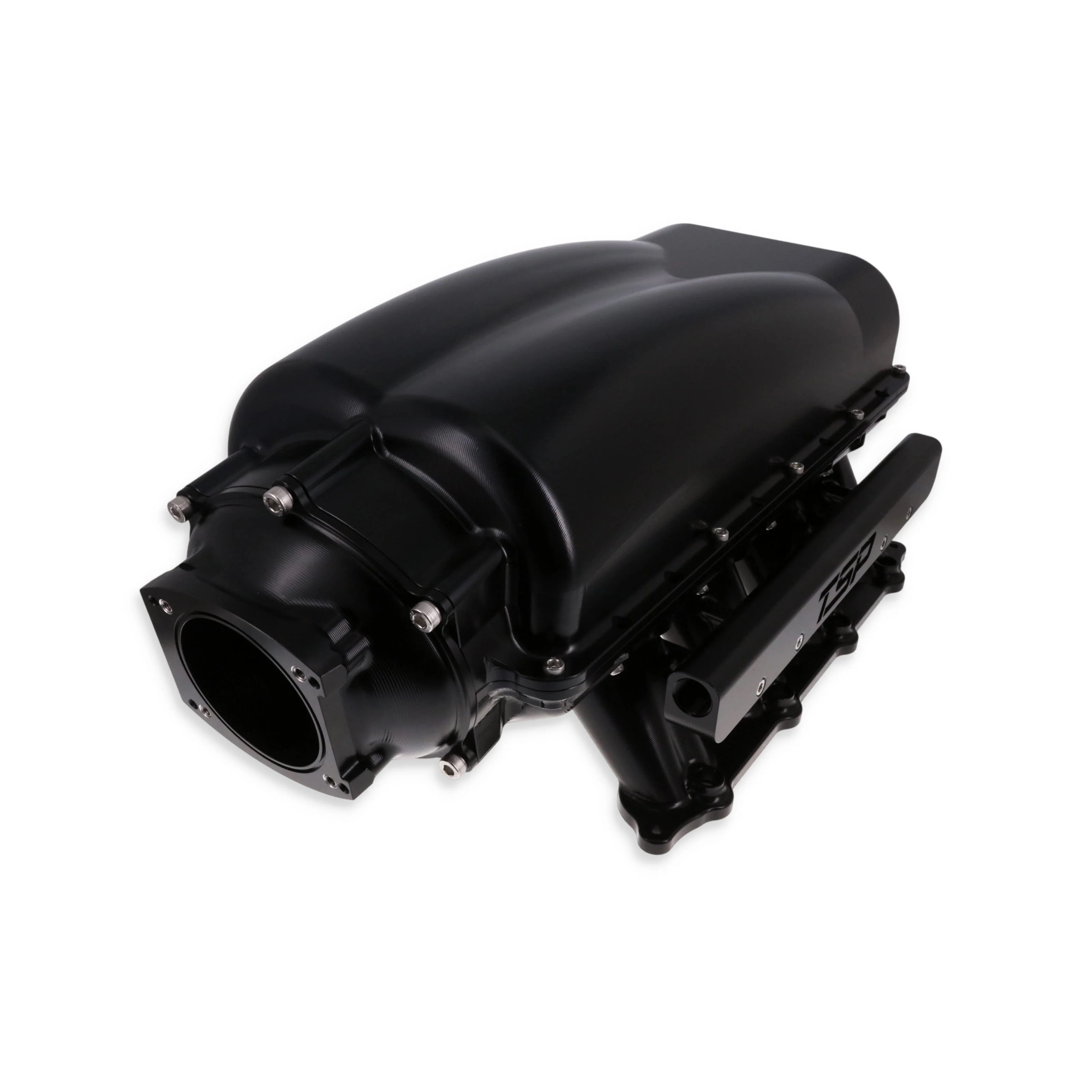

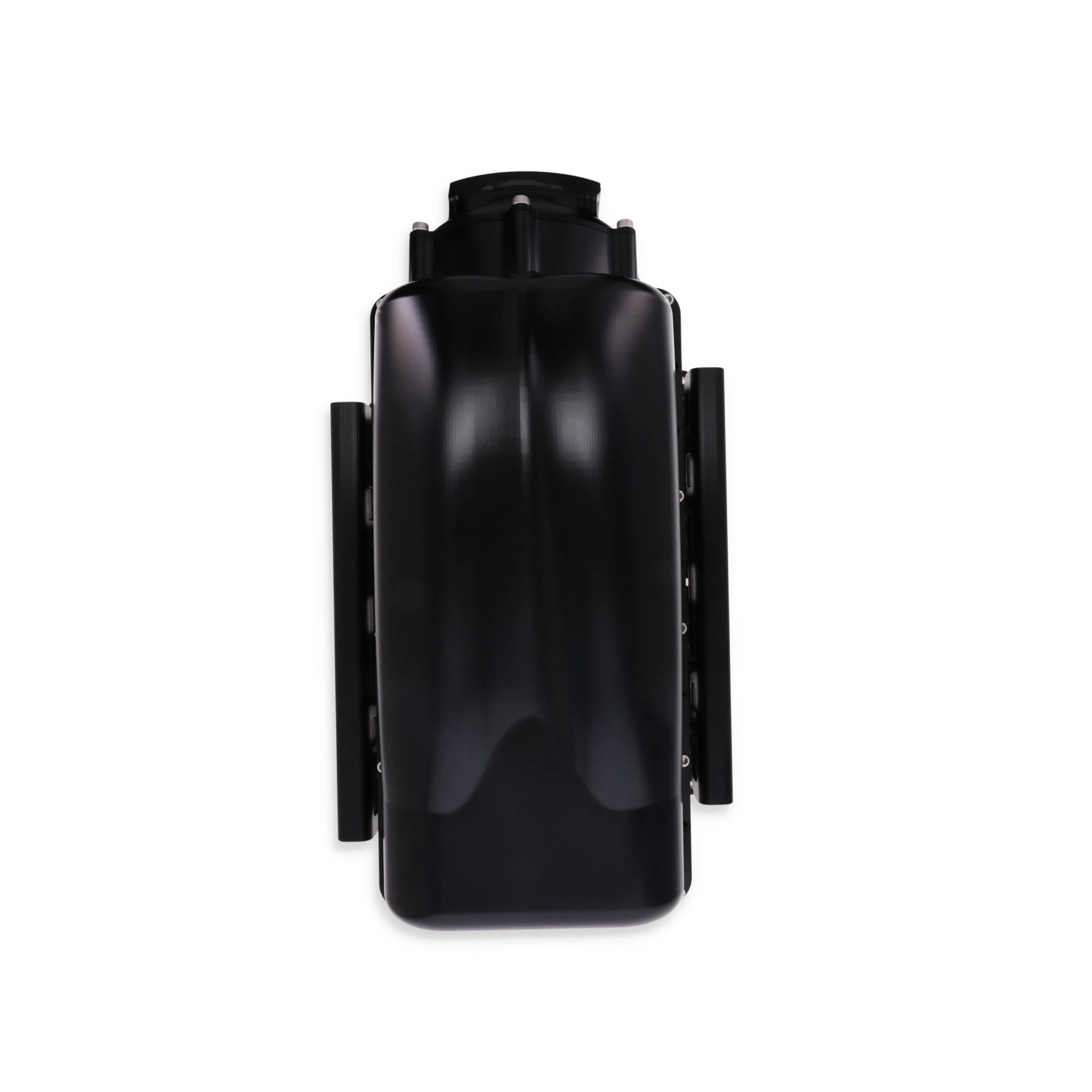

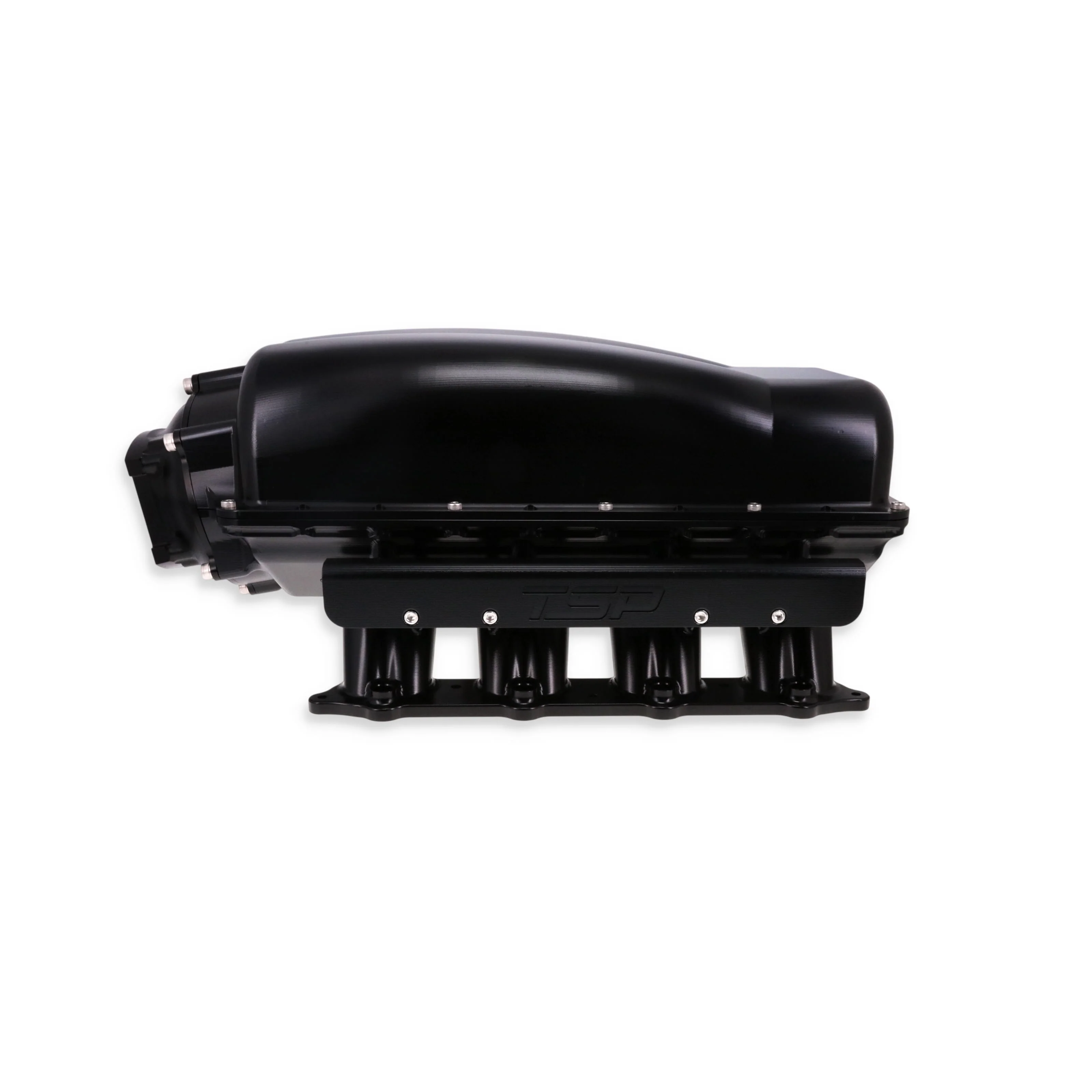

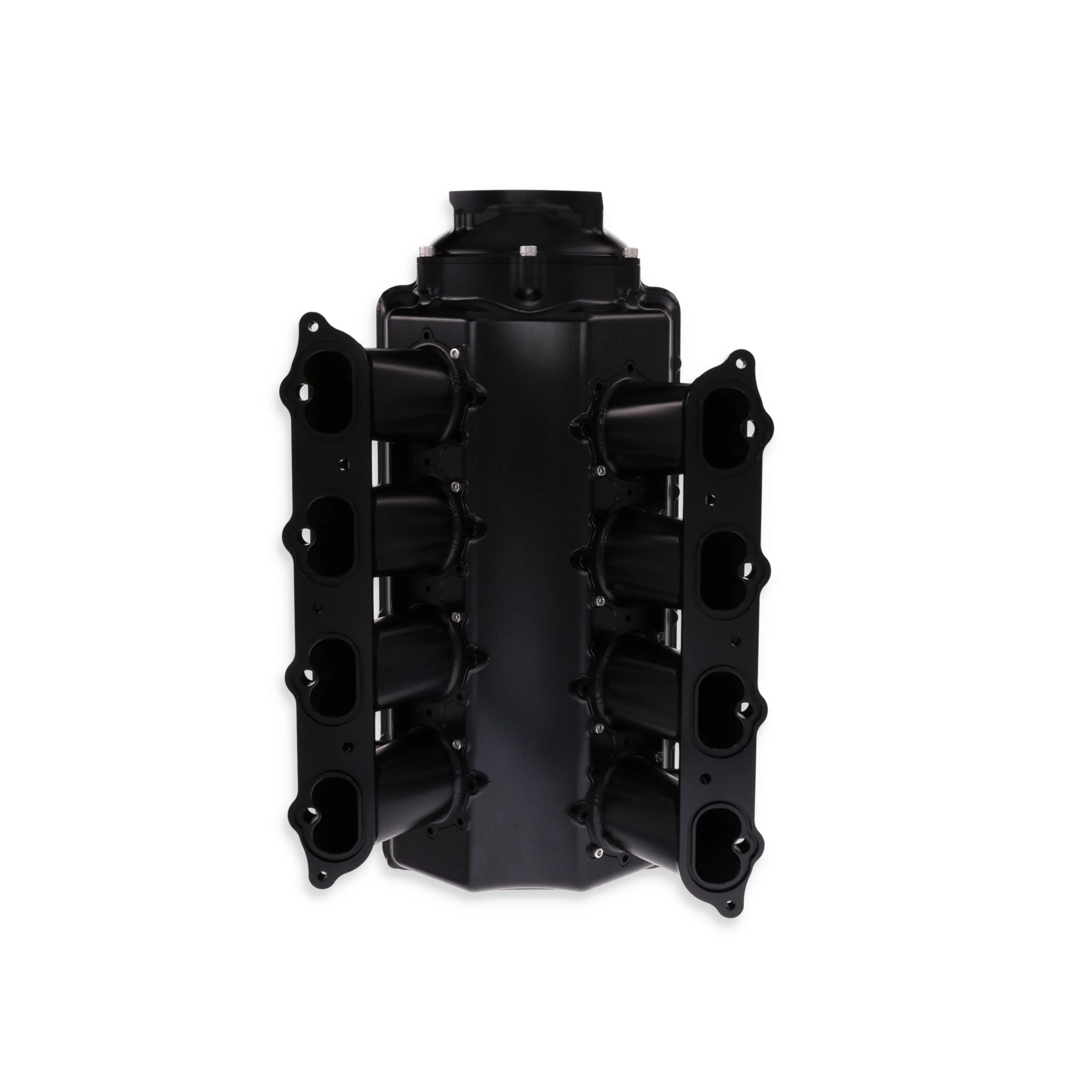

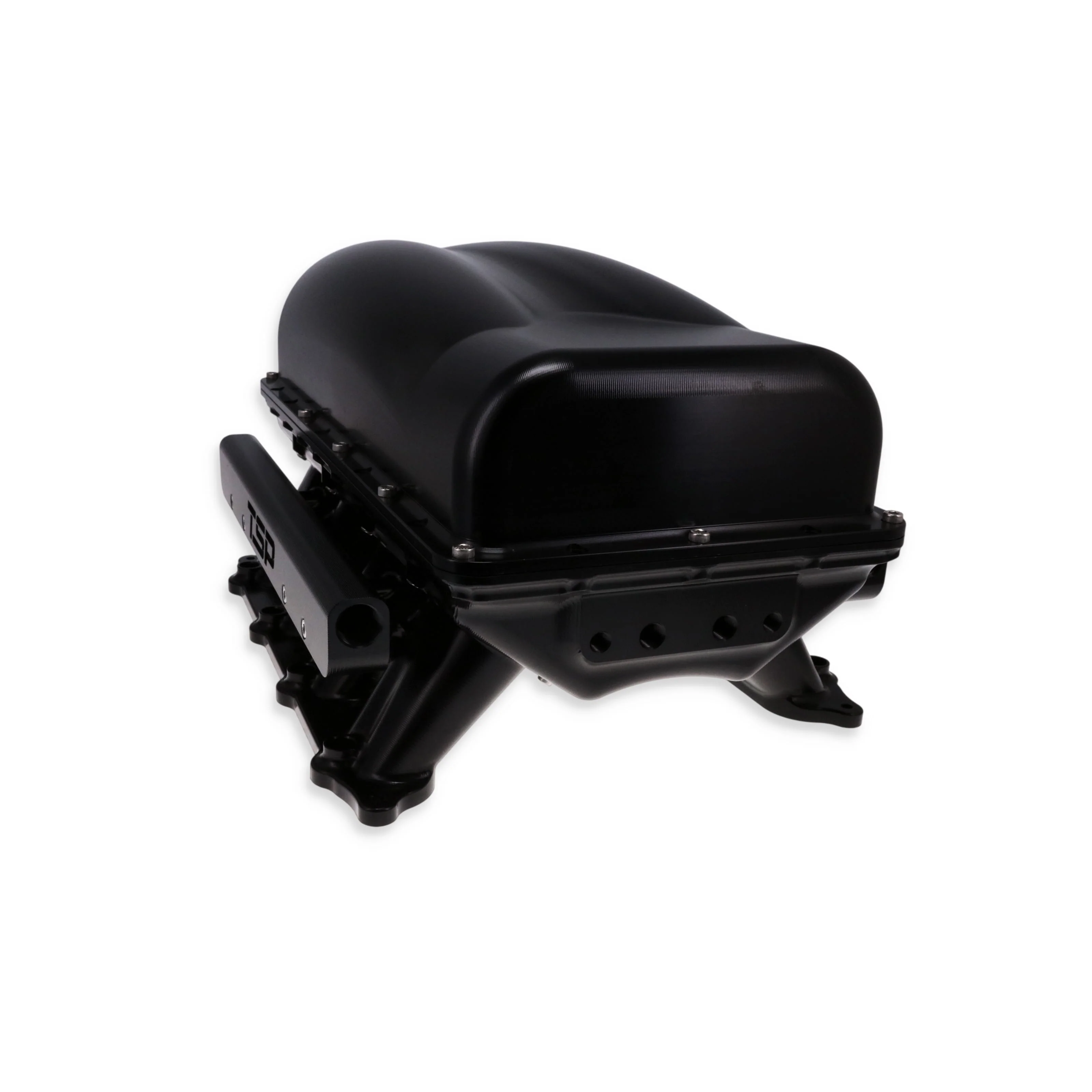

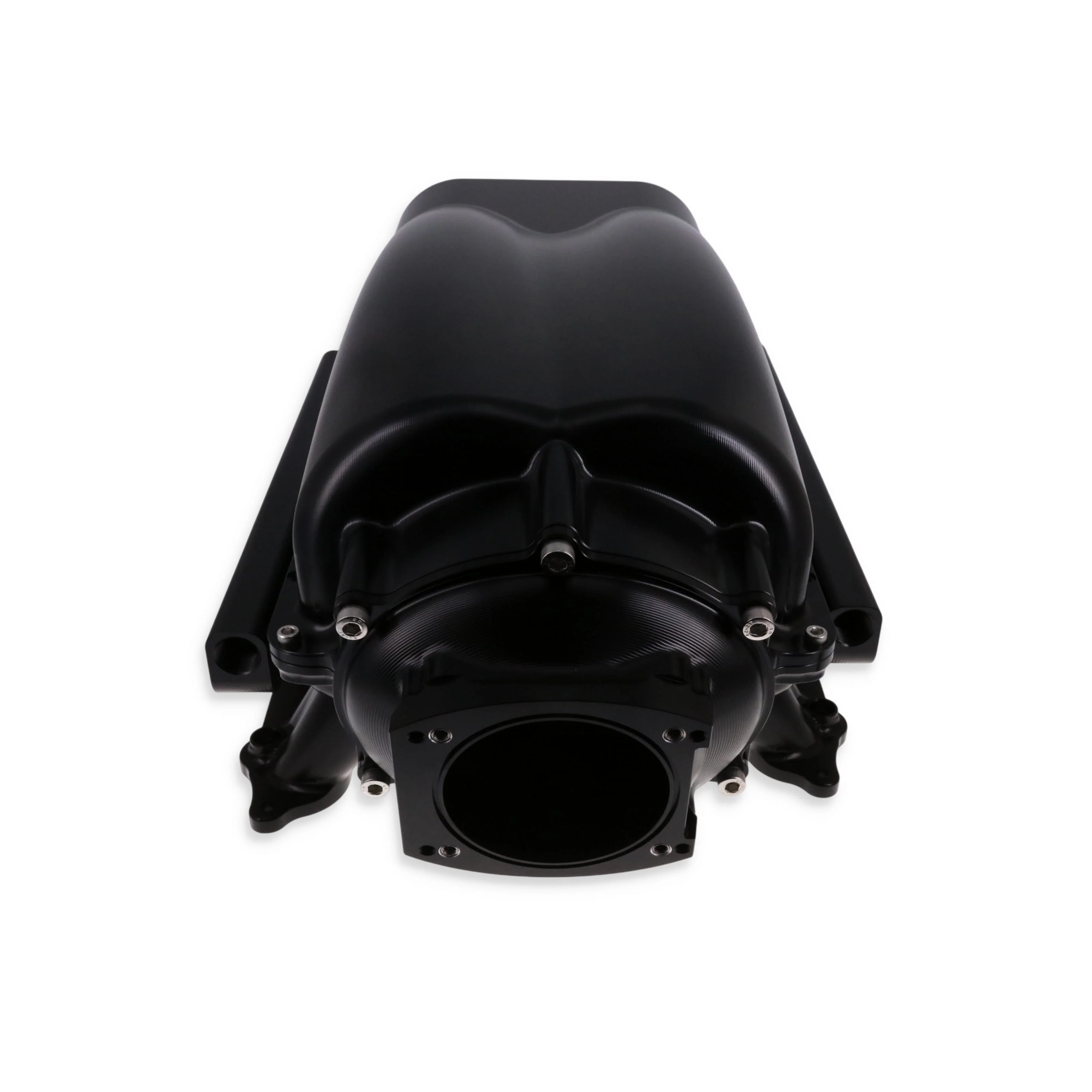

Ford 5.0L Coyote V Series Billet Aluminum Intake Manifold - Black

TSP's V Series intake and fuel rail set-up is 2025's hot new item. Fresh off its award-winning turn at the 2024 SEMA Show, this billet aluminum kit features a beautiful aesthetic to turn heads, brilliant design to boost your engine's performance, and a modular design for easy installation and maintenance. Dress up your Coyote power plant with this one-of-a-kind set-up.

Compatible with:
FORD MODULAR V8
• 5.0 L / 302 in3

Specifications:
Basic Operating RPM Range: 200-9,000 RPM
Center Maximum Height: 10.200 in.
Color: Silver
Deck Height: Standard
Front Maximum Height: 8.850 in.
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: EV1
Fuel Rail Color: Silver
Fuel Rail Finish: Natural
Fuel Rail Material: Aluminum
Fuel Rails Included: Yes
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Oval with Dimple
Manifold Finish: Natural
Material: Aluminum

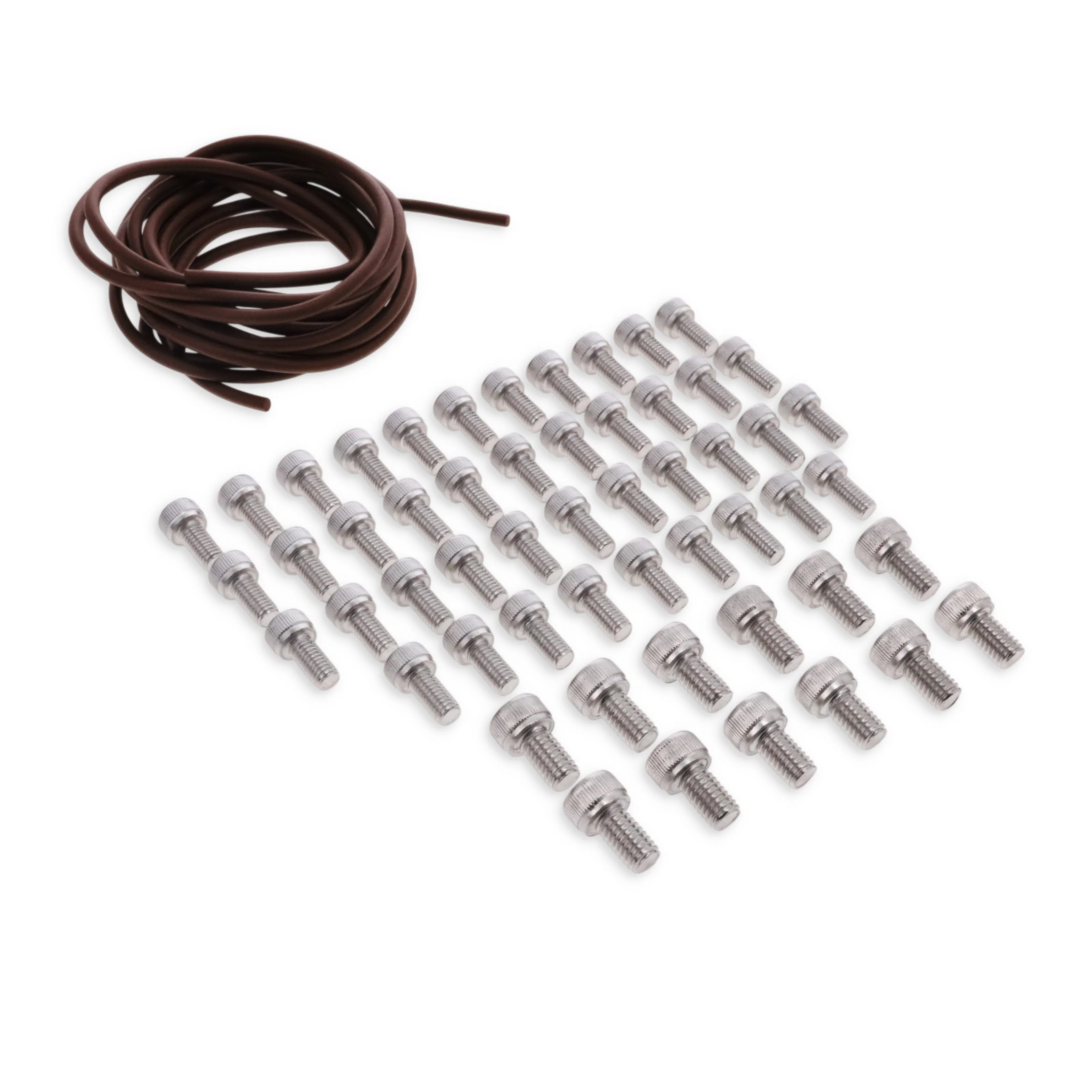

Mounting Hardware Included: Yes
Mounting Hole Quantity: 10
Plenum Thickness: 8 mm
Rear Maximum Height: 9.024 in.
Removable Runners: Yes
Removable Throttle Body Flange: Yes
Removable Top: Yes
Runner Length: 4.311 in.
Single Or Dual Plane Type: Single Plane
Supplemental Boss Quantity: 4
Throttle Body Bore Size: 92 mm
