$177.25

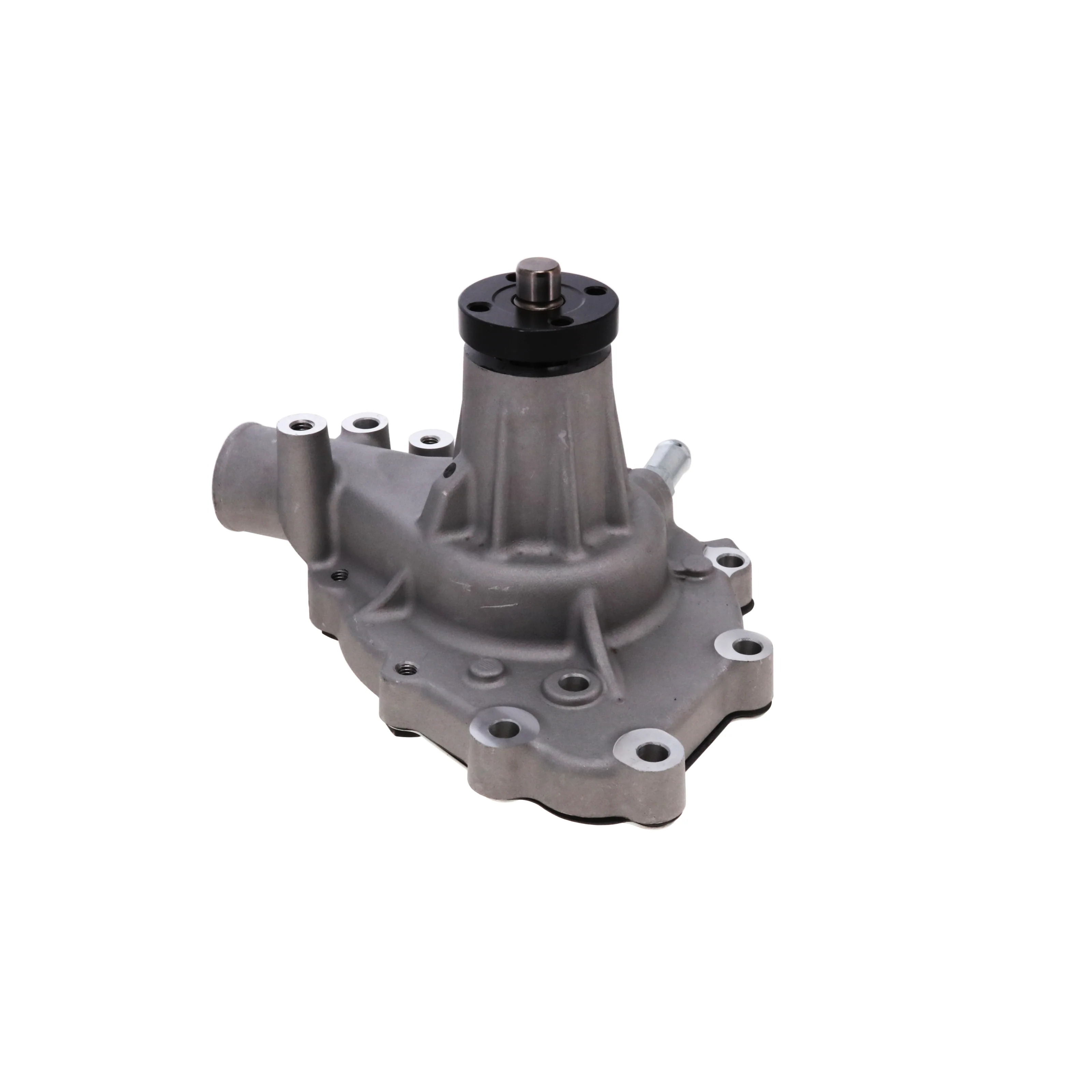

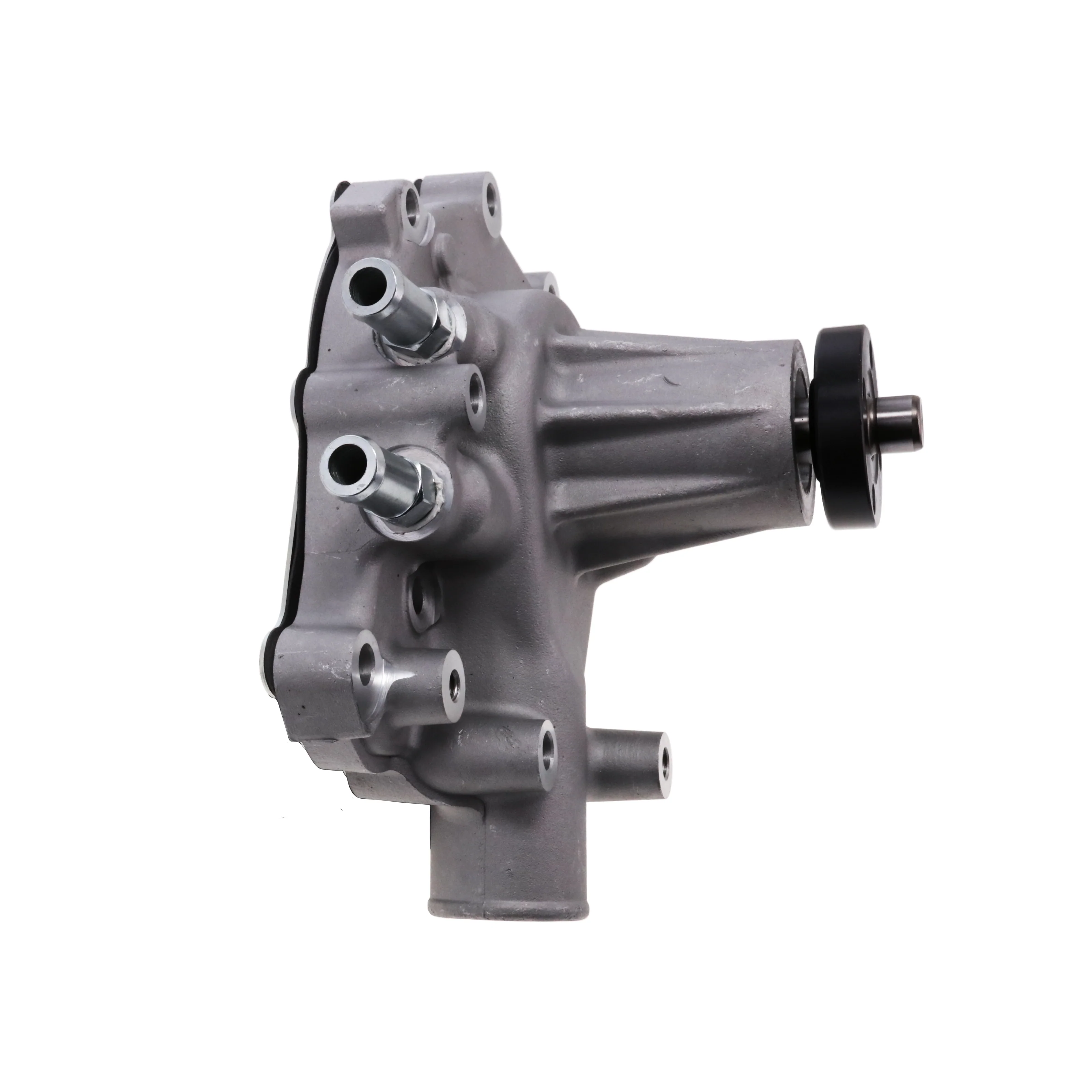

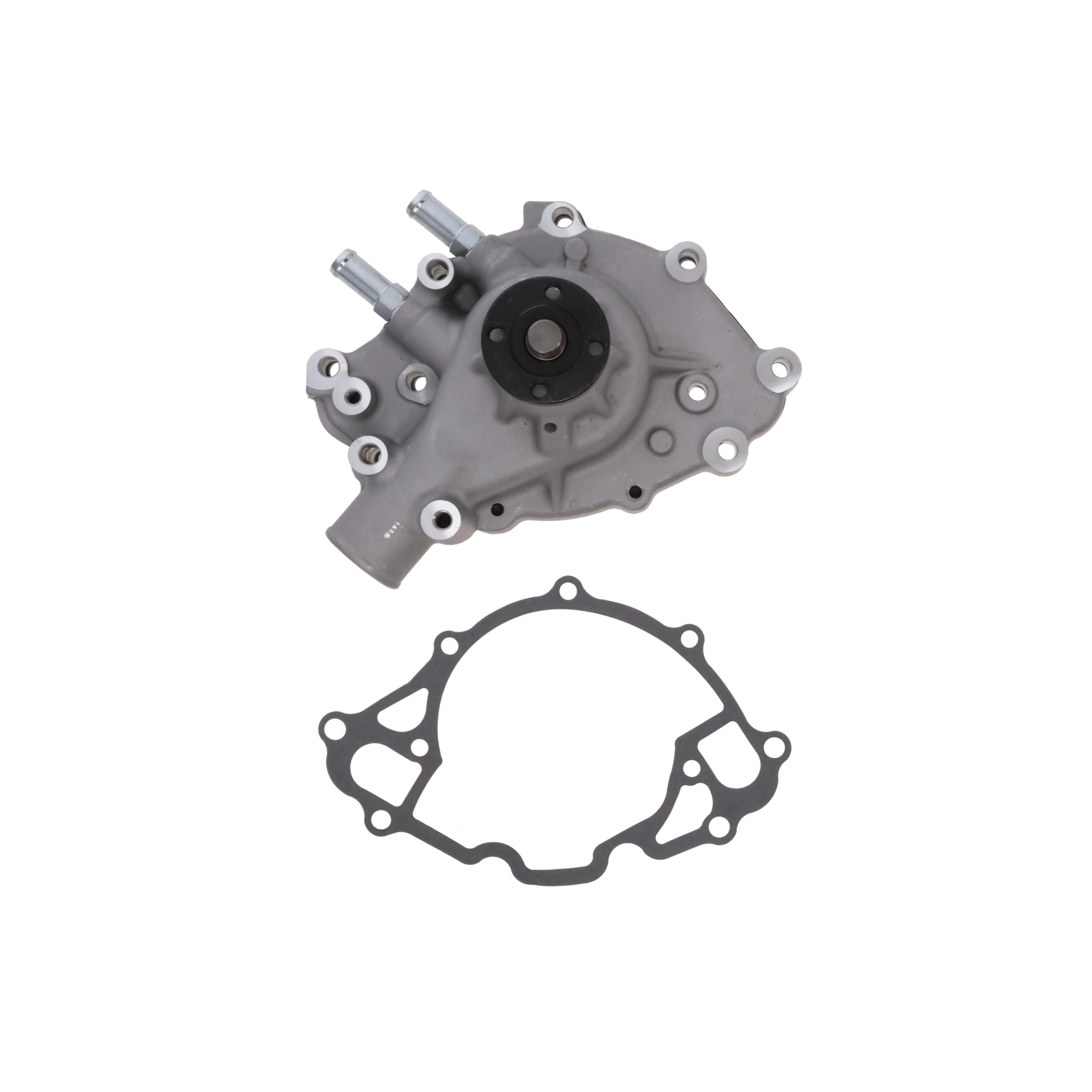

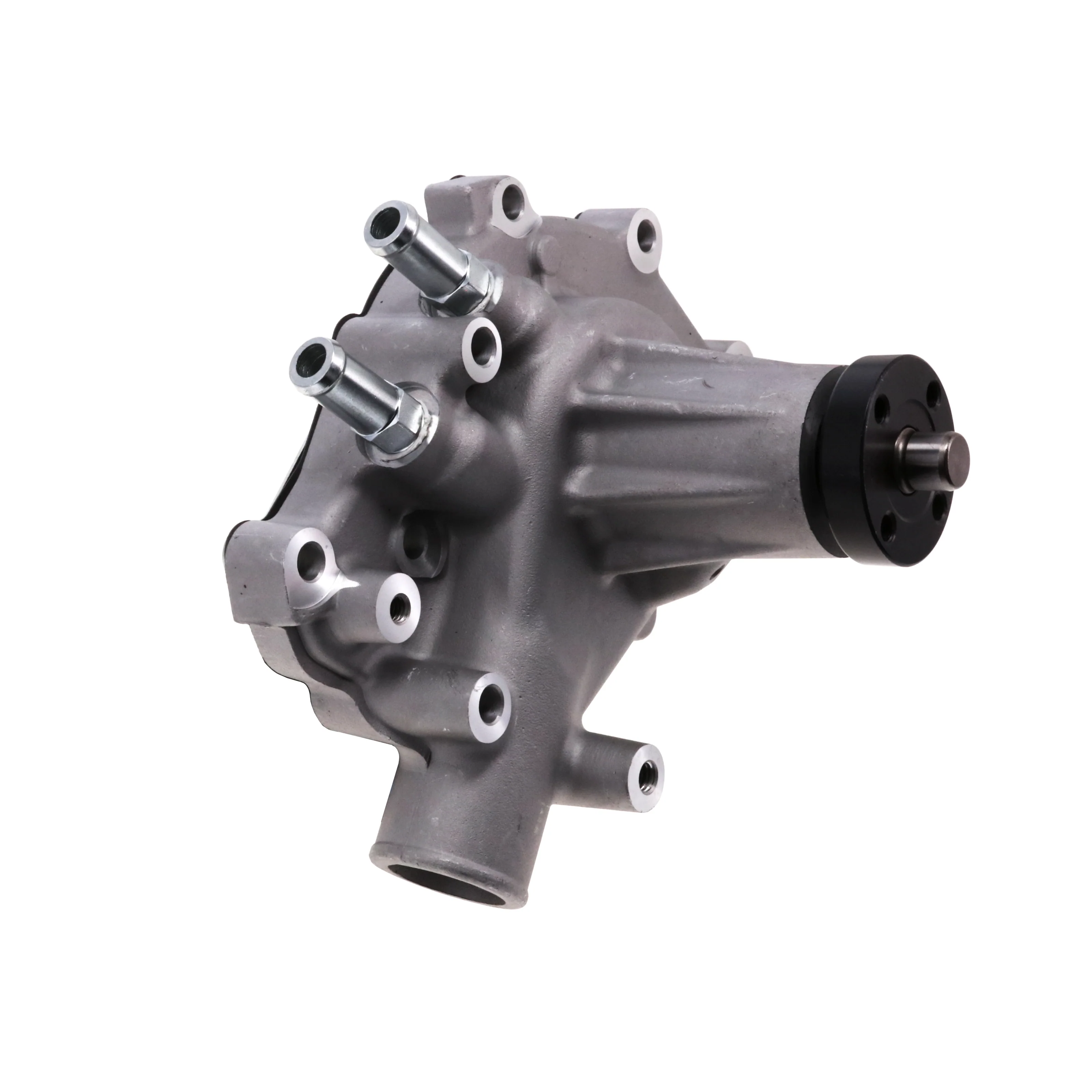

Ford Small Block 289/302/351W Aluminum High-Flow Mechanical Water Pump - Satin—
$177.25
The Story
Add stronger coolant movement and a cleaner front-drive setup to Ford Small Block Windsor V8 with this high-flow mechanical water pump. Key specs include high-volume, clockwise rotation, 5.437 in. hub height, 0.625 in. pilot diameter, satin aluminum, giving the installation the measurements and materials buyers look for in a quality replacement.
Pulley Alignment
5.437 in. hub height and 0.625 in. pilot diameter help position the pulley and fan drive during installation.
Impeller & Flow Design
The 8-vane clockwise high-volume impeller setup helps move coolant steadily through the block, heads, and radiator circuit.
Installation Notes
Confirm gasket included: yes, mounting hardware included: no, back housing included: yes before final assembly.
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 4.9 L / 289 in3
• 5.0 L / 302 in3
• 5.8 L / 351 in3 commonly referred to as 351W
NOTES
Fits many '65-'73 models with passenger-side inlet only
Specifications:
Color: Silver
Fan Clutch Included: No
Finish: Satin
Gasket Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Hub Height: 5.437 in.
Hub Hole Quantity: 8
Hub Thickness: 0.500 in.
Impeller Material: Aluminum
Impeller Rotation: Clockwise
Impeller Vane Quantity: 8
Includes Back Housing: Yes
Inlet Orientation: Passenger Side
Mounting Hardware Included: No
Mounting Hole Quantity: 11
Outlet Quantity: 1
Pilot Diameter: 0.625 in.
Pulley Included: No
Pump Flow: High-volume
Thermostat And Housing Included: No
Water Pump Drive Type: Mechanical
