GM LS Gen III Cathedral Port Carbon Fiber Hi-Rise Intake Manifold

Elevate your build with this high-rise TSP Gen III intake manifold kit engineered for enthusiasts who refuse to compromise between performance and aesthetics. Constructed from high-grade carbon fiber with precision-machined aluminum flanges, this intake delivers a serious reduction in weight over factory cast iron and aluminum units, not to mention improved heat dissipation. The removable top gives you unmatched accessibility for tuning, maintenance, and upgrades, and the included 10 ORB fuel rails are designed to flow with your build, offering reliable fuel delivery for high-horsepower applications. Whether you're dropping this into a track car, a restomod, or a weekend cruiser, this intake kit delivers the looks, the weight savings, and the functionality to take your powerplant to the next level.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3
• 6.0 L / 364 in3

Specifications:
Basic Operating RPM Range: 1,500-9,000 RPM
Color: Black
Deck Height: Standard
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: 2.55 in. LS1 style
Fuel Rail Color: Black
Fuel Rail Finish: Black
Fuel Rail Fitting Thread Diameter: 10 ORB
Fuel Rail Material: Aluminum
Fuel Rails Included: Yes
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Cathedral
Manifold Absolute Pressure Sensor Port Included: Yes
Manifold Absolute Pressure Sensor Port Style: Gen IV 3-bar
Manifold Finish: Natural
Material: Carbon Fiber

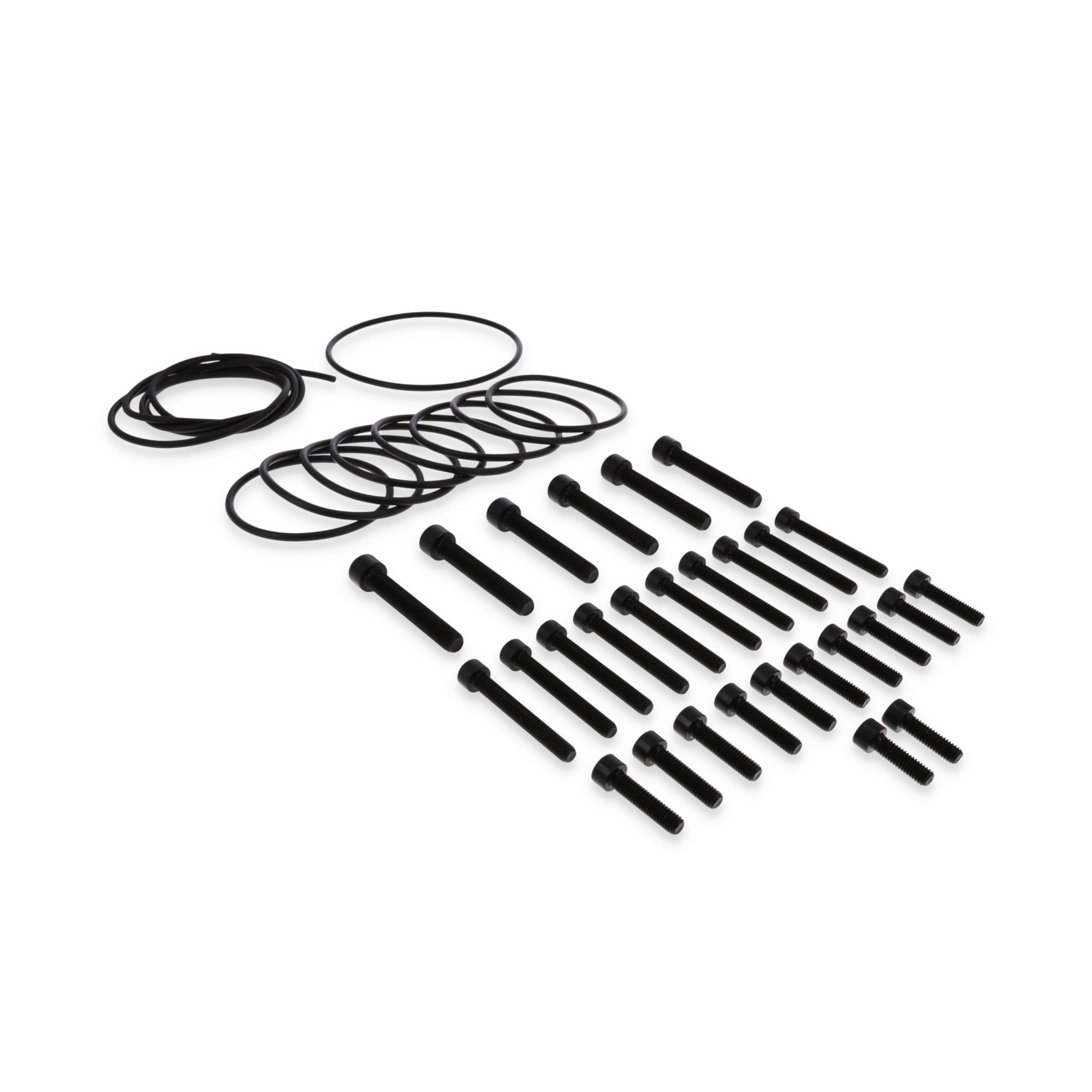

Mounting Hardware Included: Yes
Mounting Hole Quantity: 10
Removable Runners: Yes
Removable Throttle Body Flange: No
Removable Top: Yes
Supplemental Boss Quantity: 2
Throttle Body Bore Size: 102.200 mm
