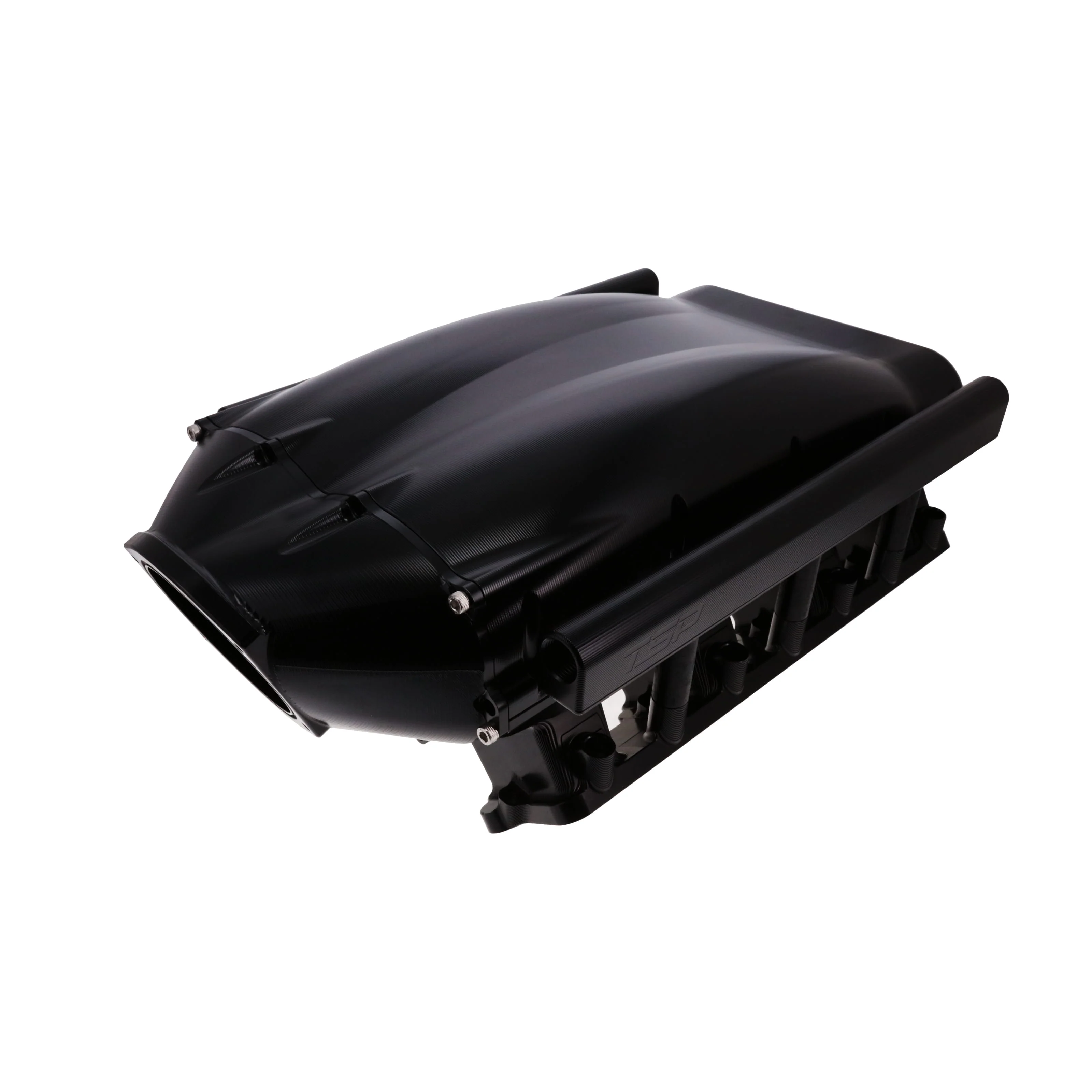

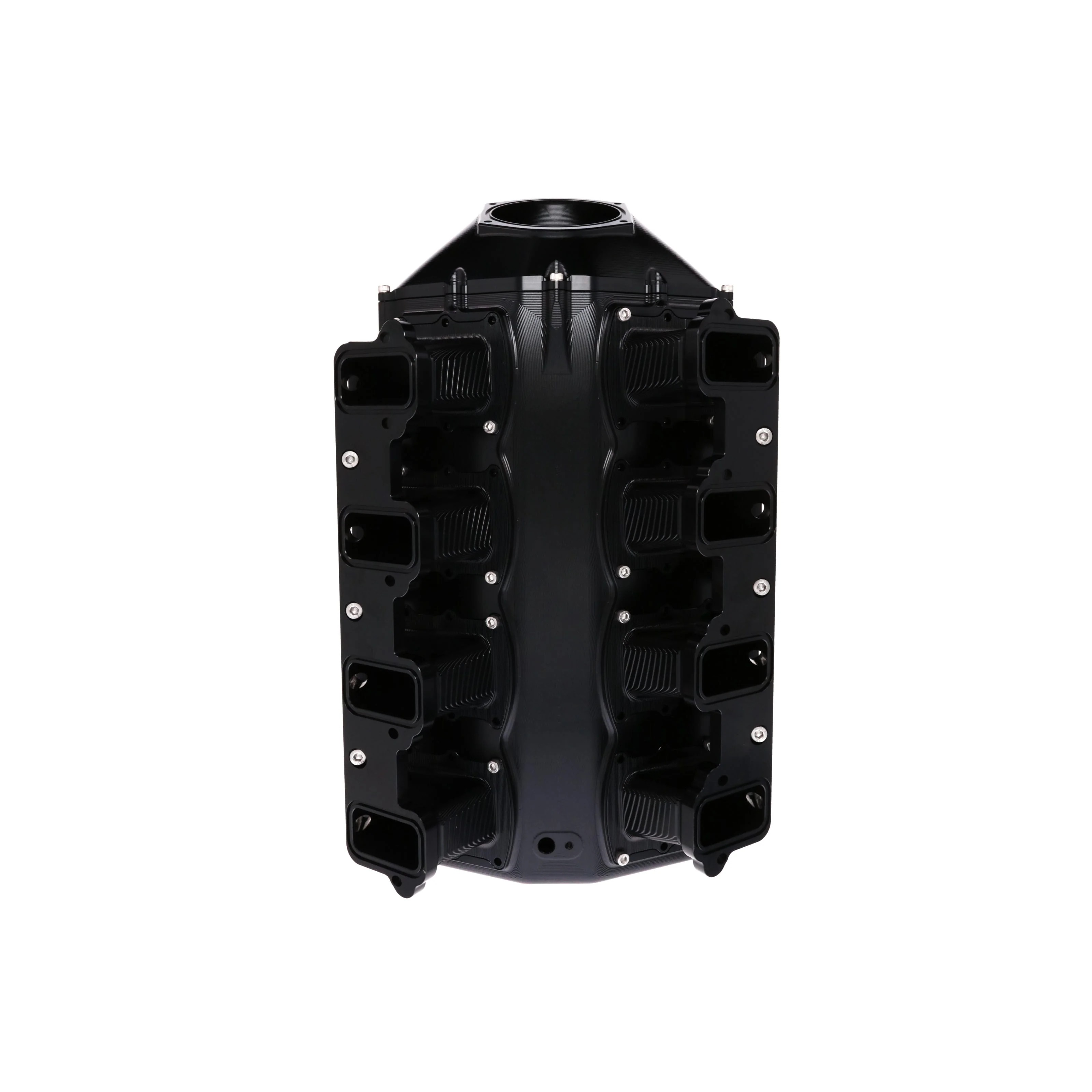

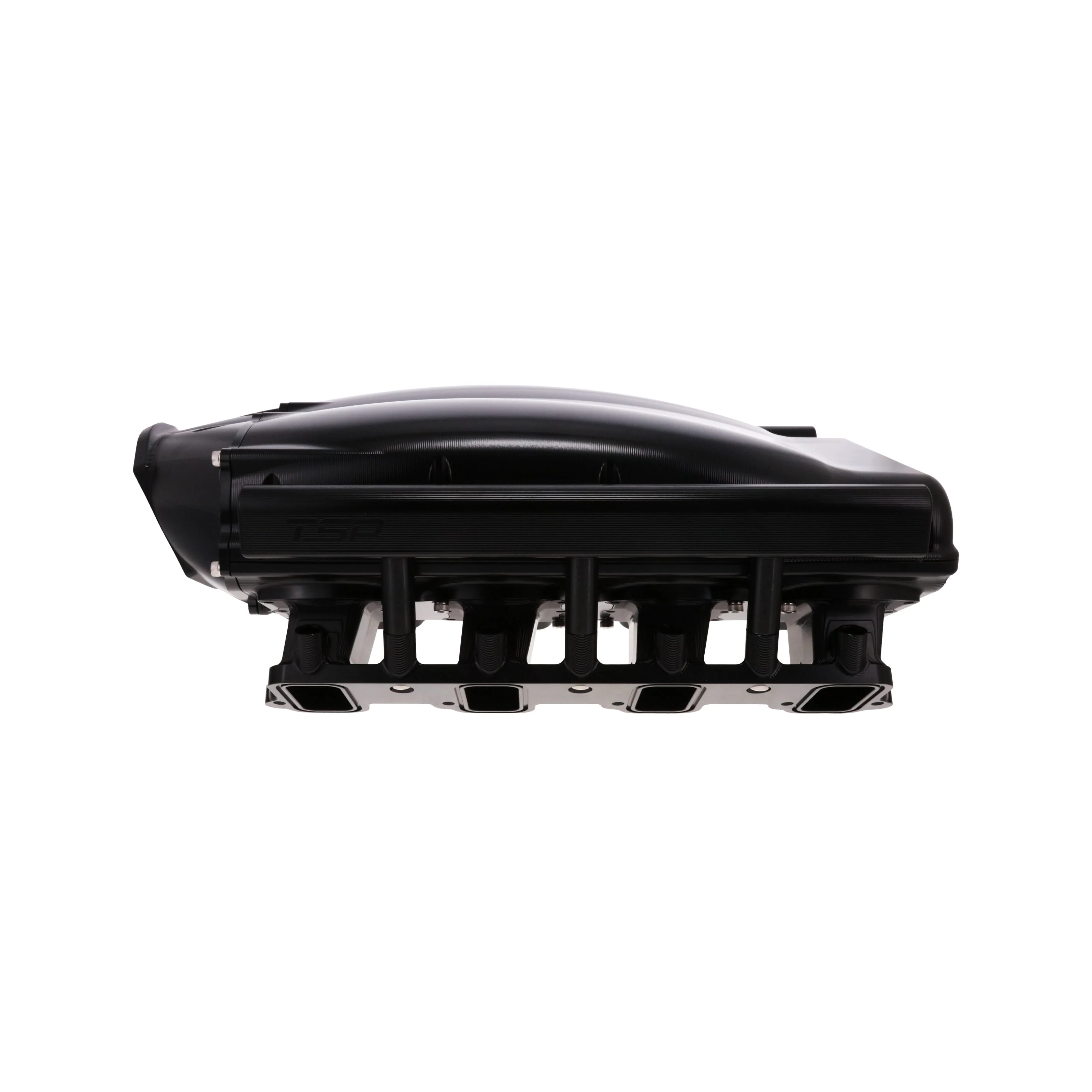

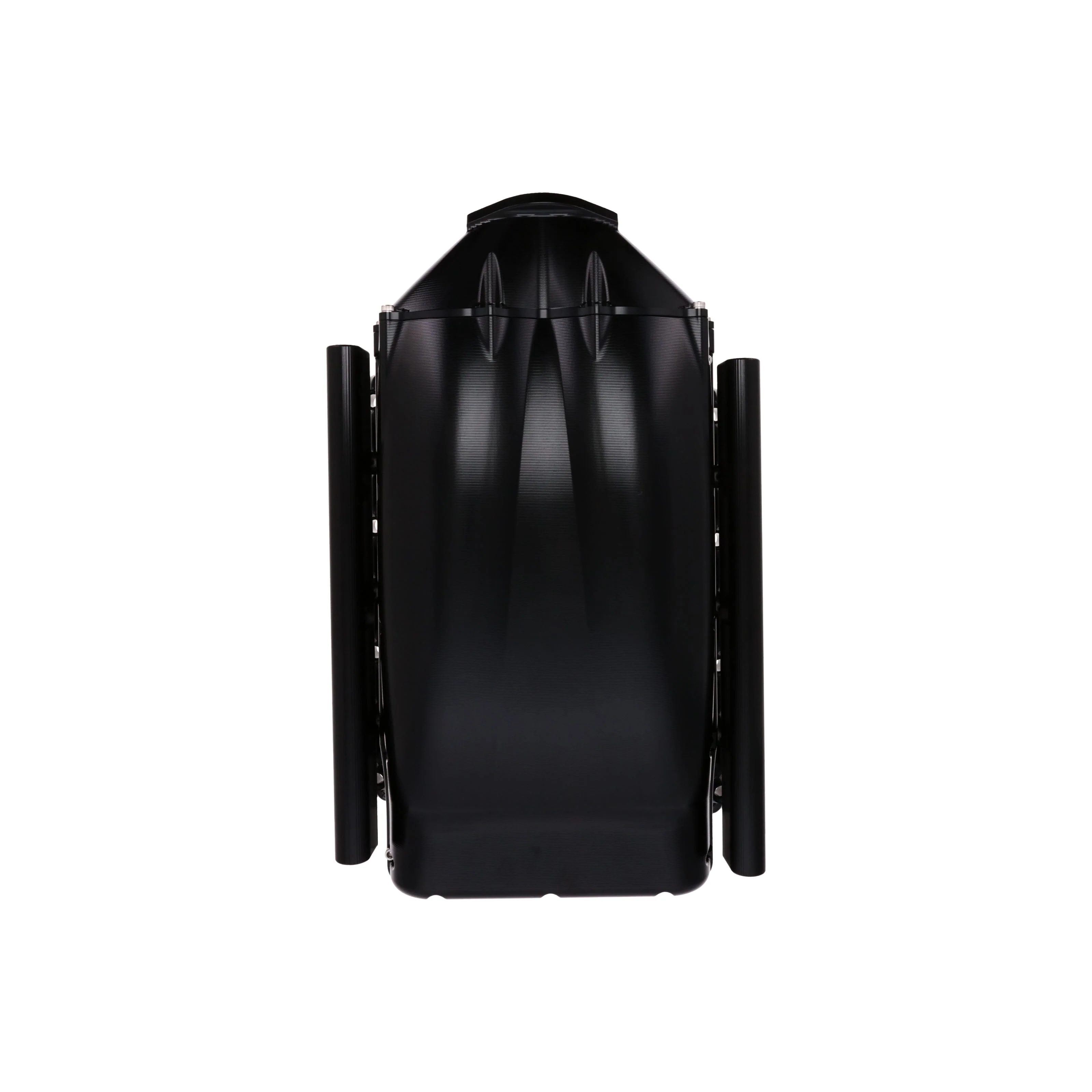

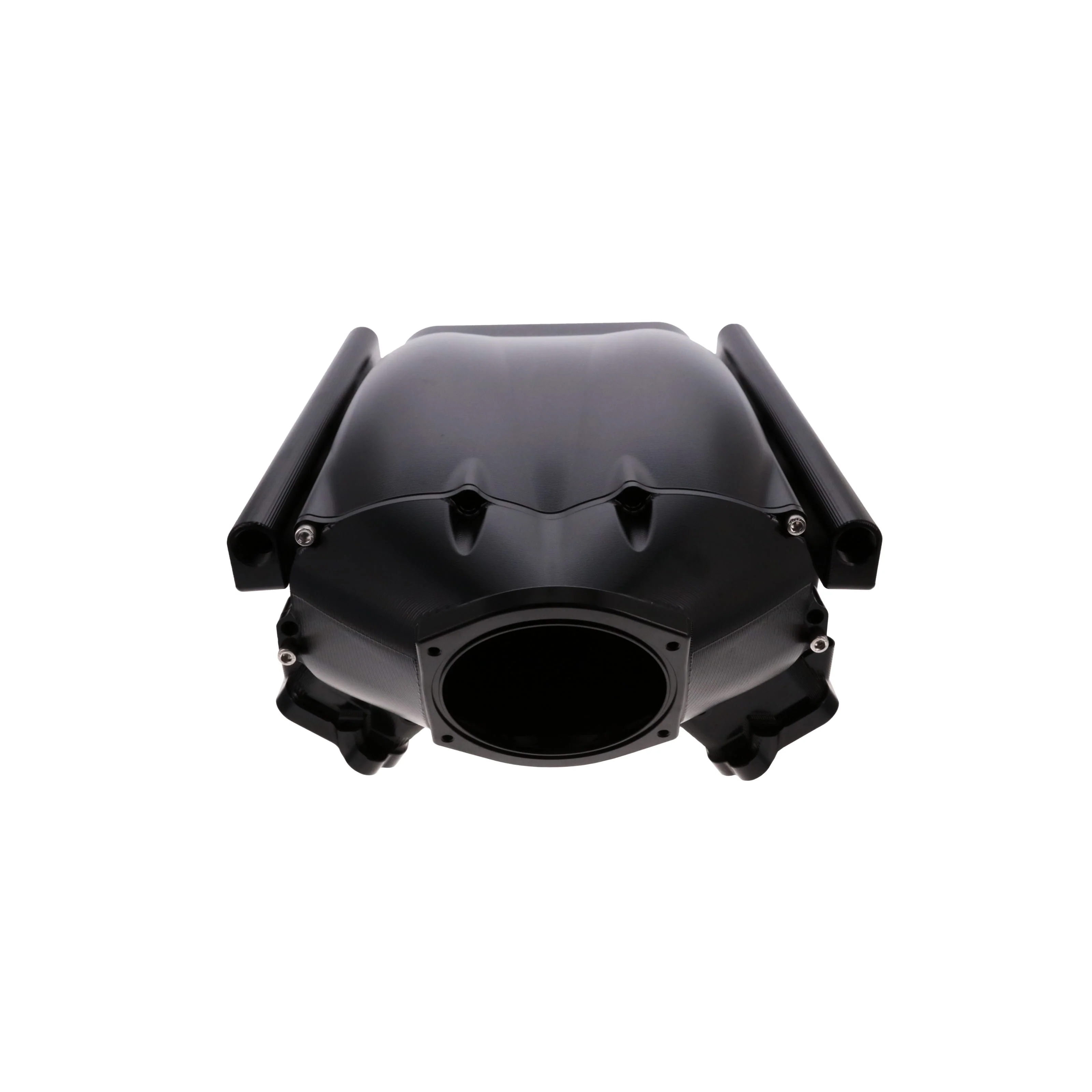

GM LS Rectangle Port V Series Billet Aluminum Low-Rise Intake Manifold - Black

TSP's V Series intake and fuel rail set-up is 2025's hot new item. Fresh off its award-winning turn at the 2024 SEMA Show, this billet aluminum kit features a beautiful aesthetic to turn heads, brilliant design to boost your engine's performance, and a modular design for easy installation and maintenance. Dress up your LS power plant with this one-of-a-kind set-up.

Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 6.0 L / 364 in3
• 6.2 L / 376 in3
• 7.0 L / 428 in3

Specifications:
Basic Operating RPM Range: 1,500-9,000 RPM
Center Maximum Height: 8.750 in.
Color: Black
Deck Height: Standard
EGR Port: Yes
Front Maximum Height: 8.286 in.
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: EV1
Fuel Rail Color: Black
Fuel Rail Finish: Black
Fuel Rail Fitting Thread Diameter: -10 AN
Fuel Rail Material: Aluminum
Fuel Rails Included: Yes
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Rectangle
Manifold Absolute Pressure Sensor Port Included: Yes
Manifold Absolute Pressure Sensor Port Style: Gen IV 3-bar
Manifold Finish: Black
Material: Aluminum
Mounting Hardware Included: Yes
Mounting Hole Quantity: 10
Plenum Thickness: 8 mm
Rear Maximum Height: 7.132 in.
Removable Runners: Yes
Removable Throttle Body Flange: Yes
Removable Top: Yes
Runner Length: 3.000 in.
Single Or Dual Plane Type: Single Plane
Supplemental Boss Quantity: 2
Throttle Body Bore Size: 102.200 mm
