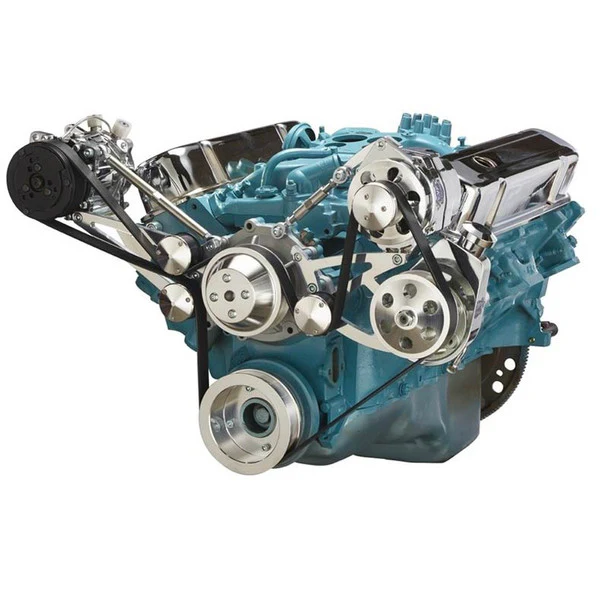

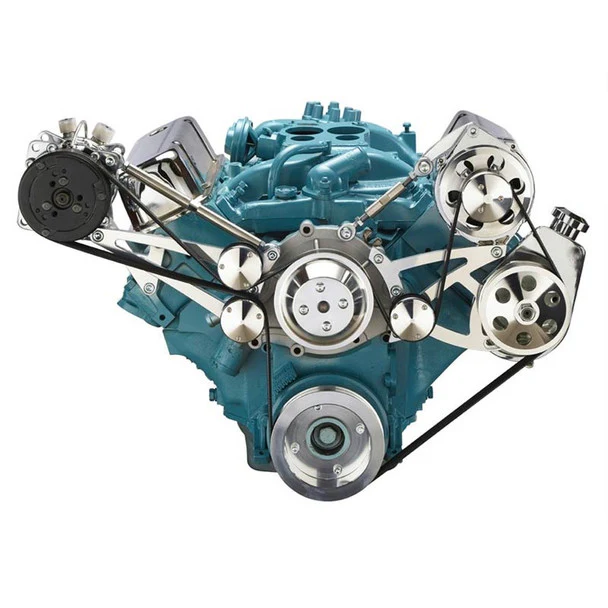

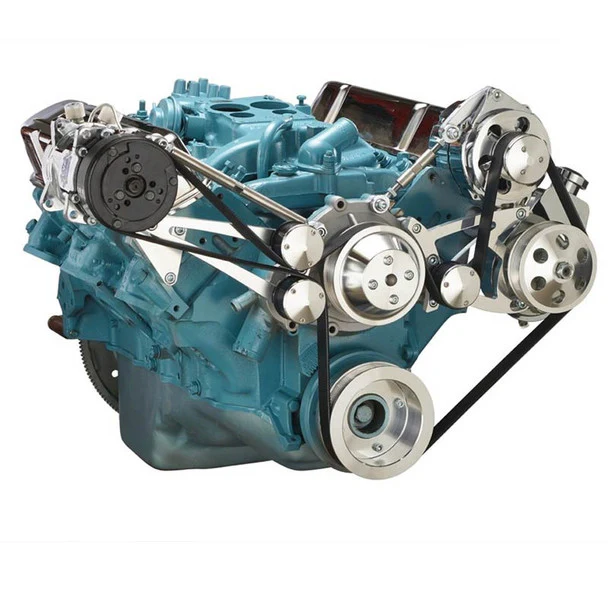

Pontiac Serpentine Conversion Kit (350-400, 428 & 455)
Complete 8 Rib Serpentine system for the Pontiac engines with alternator, power steering and Air Conditioning.
Kit Includes:
- 1 Belt Water Pump Pulley
- 1 Belt Crank Pulley
- 1 Belt Alternator Pulley
- 1 Belt Keyway Power Steering Pulley
- 3 Idler Pulleys
- Power Steering / Alternator Bracket
- Sanden AC Compressor Bracket
- ALTFAN - Universal alternator fan
Notes:
- Requires 4 bolt pattern on Harmonic Balancer and 11 Bolt water pump that is 4.5" tall
- Saginaw Keyway Compressor and Power Steering Pump NOT Included
- Both GM and Pontiac Reservoir Orientation will Work.
- Requires Saginaw Power Steering Pump with mounting stud in lower right corner on the back of the pump.
Compatible with:
Pontiac engines with alternator, power steering and Air Conditioning.
1969+ Pontiac Passenger Cars
• 5.7 L / 350 in³
• 6.6 L / 400 in³
• 7.0 L / 428 in³
• 7.5 L / 455 in³
Generally fits the following models with original 350, 400, 428 & 455 engines installed. Note: 1969 was a transition year and you need to ensure that you have the taller 4.5" water pump.
• 1969 - 1974 Pontiac GTO
• 1969 - 1977 Pontiac Grand Prix
• 1969 - 1981 Pontiac LeMans
• 1969 - 1976 Pontiac Bonneville
• 1969 - 1976 Pontiac Firebird
• 1969 - 1976 Pontiac Transam
• 1969 - 1981 Pontiac Catalina
• 1978 - 1980 Pontiac Grand Am
• 1969 - 1972 Pontiac Tempest
• 1969 - 1977 Pontiac Ventura
This is not a complete list. If you have a question about application, please e-mail us. It is not recommended that you select pulleys solely based on model and year alone because often the original engine has been swapped.
| Product Type | Beast - Serpentine Conversion |
| Alternator Position | High - Driver |
| Power Steering | Yes - Saginaw |
| Air Conditioning | High - Passenger |
| Compressor Type | Sanden 508 |
| Finish | Polished |
| Belt Type | Serpentine 8 Rib |
| Water Pump Type | Mechanical |
| Water Pump | Pontiac 11 Bolt |
| Water Pump Rotation | Standard |
| Make | Pontiac |
| Engine | Pontiac 350-455 |
