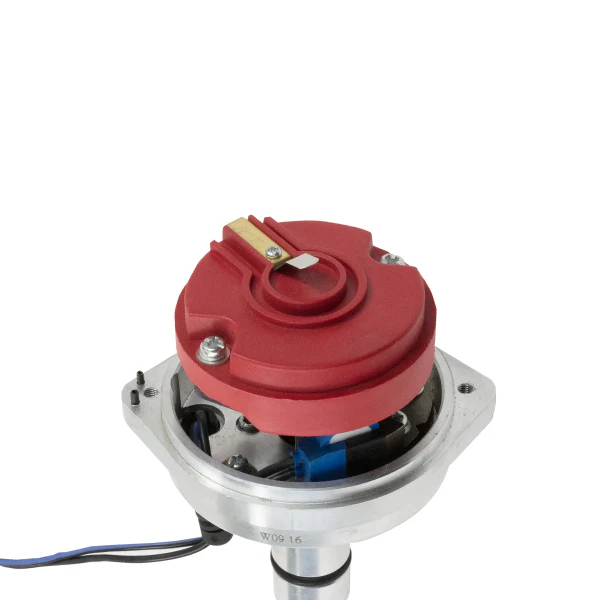

Volkswagen Air-Cooled Flat 4 Pro Billet Distributor with Red Cap

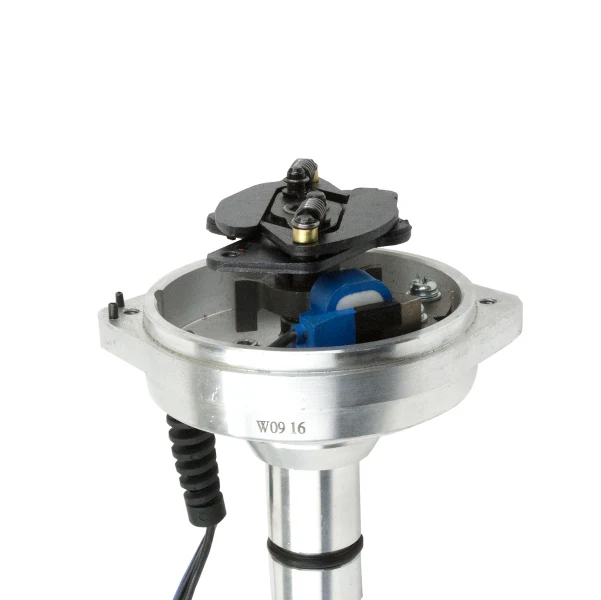

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM.

This distributor is designed for a 12-volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

Compatible with:
VOLKSWAGEN AIR-COOLED FLAT 4
• 1.2 L / 1,192cc
• 1.3 L / 1,285cc
• 1.5 L / 1,457cc
• 1.6 L / 1,584cc

Specifications:
Trigger Type: Magnetic
Advance Type: Mechanical
Cap Color: Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Coil Output: 35,000+ Volt Recommended
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 4
3 Bushings And 4 Springs For Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer With Screws: Included
