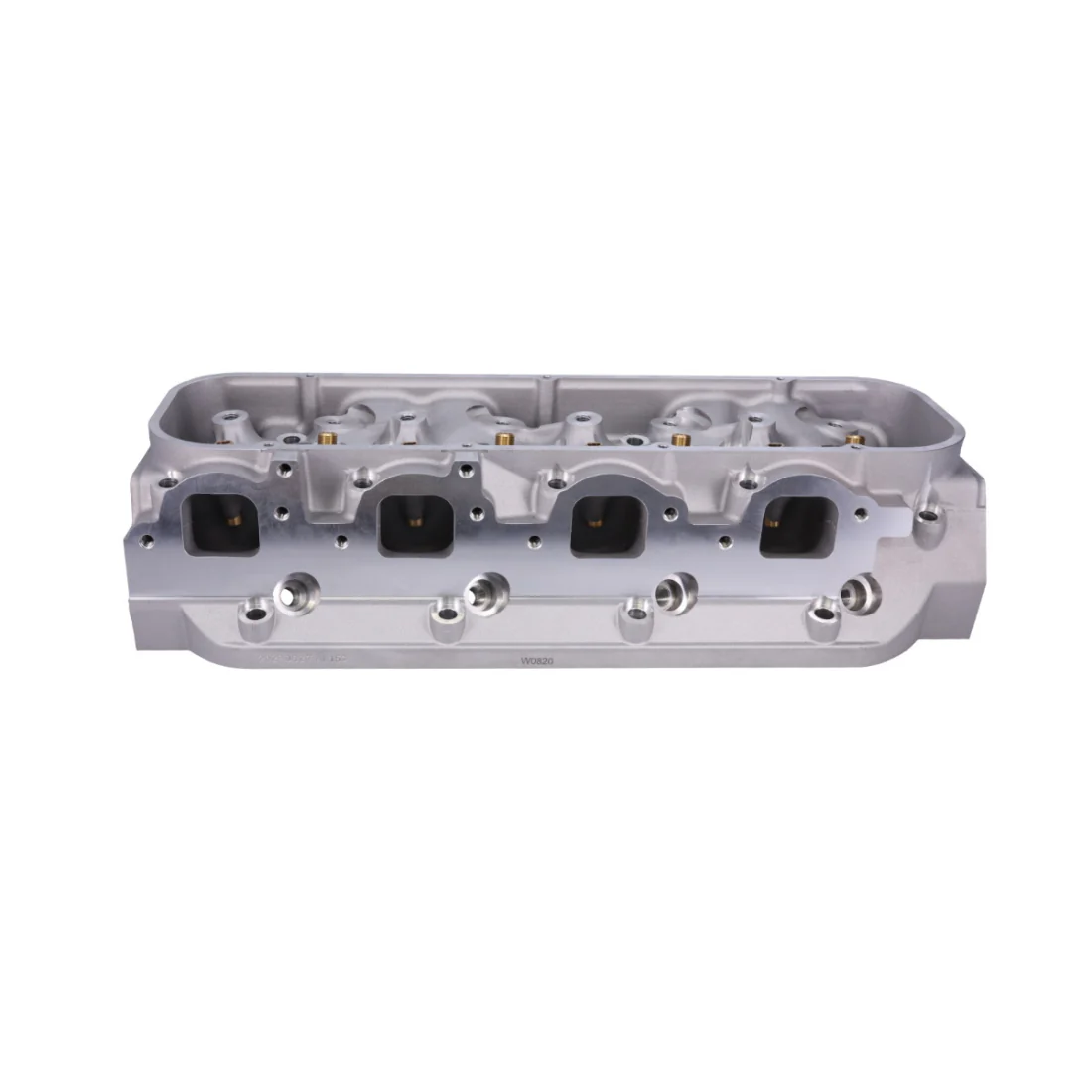

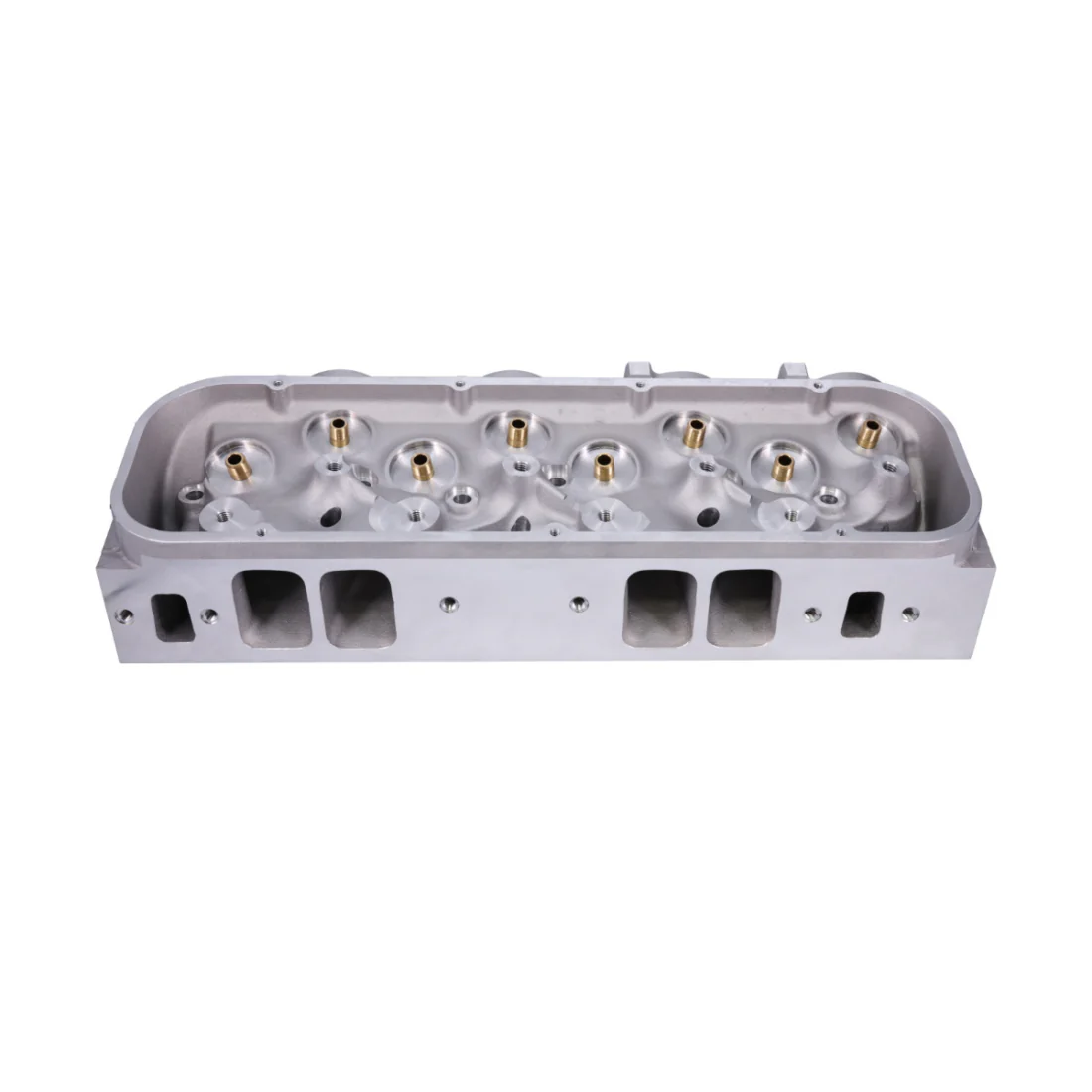

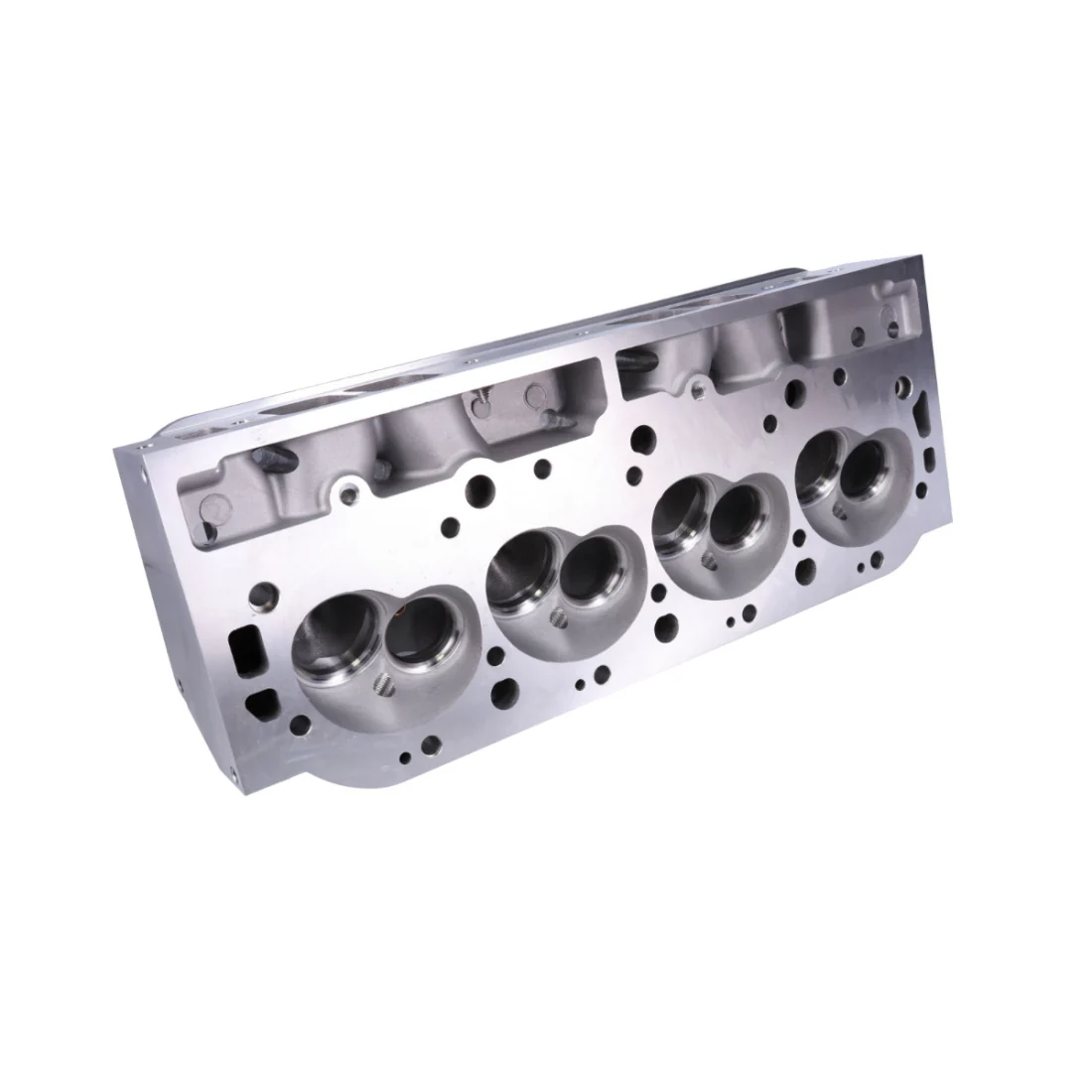

Chevy Big Block Aluminum Cylinder Head

If you're looking to rebuild your old Big Block Chevy powerplant, you can't go wrong with a set of performance cylinder heads. TSP's heads are cast from premium aluminum for improved weight and heat management over the old iron. They are engineered and are not CNC-ported for maximum horsepower and torque.

This bare assembly is a great starting point for a performance engine build. It's designed for maximum flow and performance in the hands of a skilled builder or machine shop. It features a thick deck to help resist warping and comes with threaded bolt holes on the ends for an easy install.

TSP cylinder heads are sold individually as bare assemblies. To achieve maximum performance, it is recommended that a licensed engine builder or machine shop coordinate matching short block and engine internals.

COMPATIBLE WITH
CHEVROLET BIG BLOCK V8

• 6.5L / 396 in³
• 6.6L / 402 in³
• 7.0L / 427 in³
• 7.4L / 454 in³
• 8.1L / 496 in³ stroker combinations (application-specific verification required)

COMMON VEHICLE APPLICATIONS

Chevrolet Chevelle / El Camino (Big Block equipped)
Chevrolet Camaro (Big Block equipped or swapped)
Chevrolet C10 / C/K Trucks (Big Block equipped)
Chevrolet Impala / Caprice (Big Block equipped)
Marine, street/strip, and performance Big Block Chevy builds

NOTES

Designed for Big Block Chevy engine platforms.

Cylinder head sold individually (purchase quantity of 2 required for complete engine).

Verify intake manifold, exhaust header, valve lift, and piston-to-valve clearance.

Not compatible with Small Block Chevy, LS, or LT engine platforms.

Specifications:

Assembled	No
Combustion Chamber Style	Heart
Combustion Chamber Volume	124cc
Cylinder Head Finish	Natural
Cylinder Head Material	Aluminum
Exhaust Port Location	Raised
Exhaust Port Shape	Rectangular
Intake Port Location	Standard
Intake Port Shape	Rectangular
Intake Runner	345cc
Quantity	Sold Individually
Valve Guide Material	Bronze
