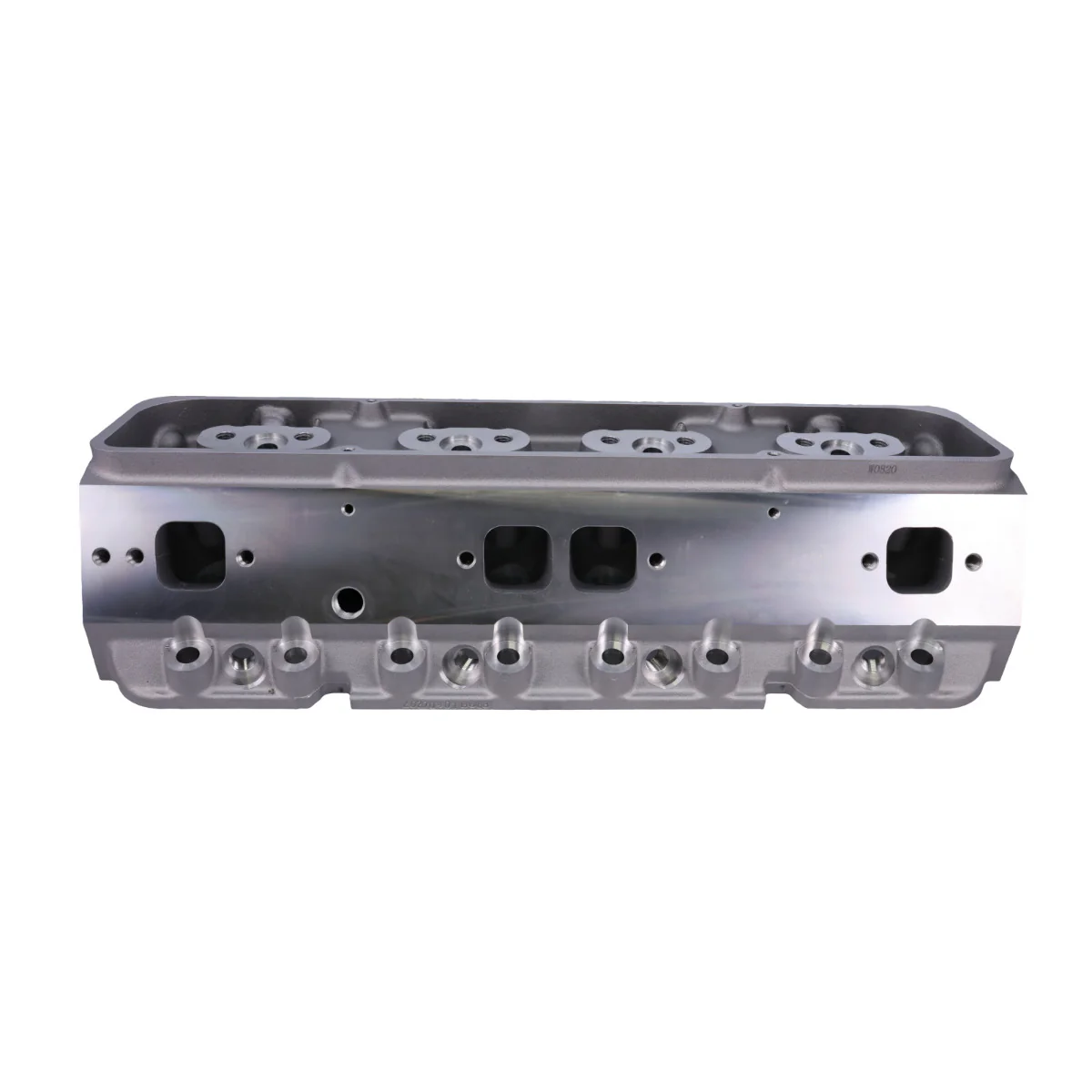

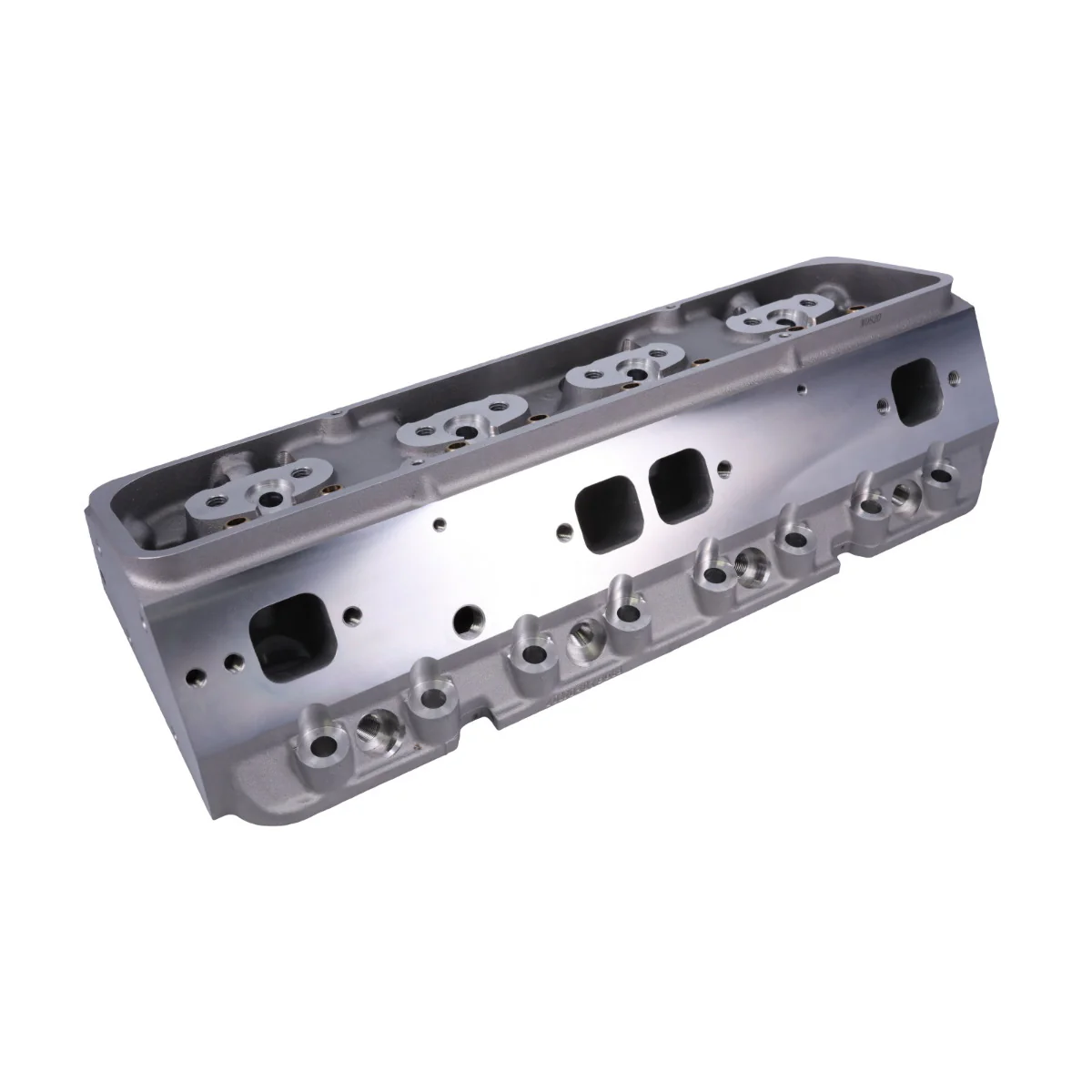

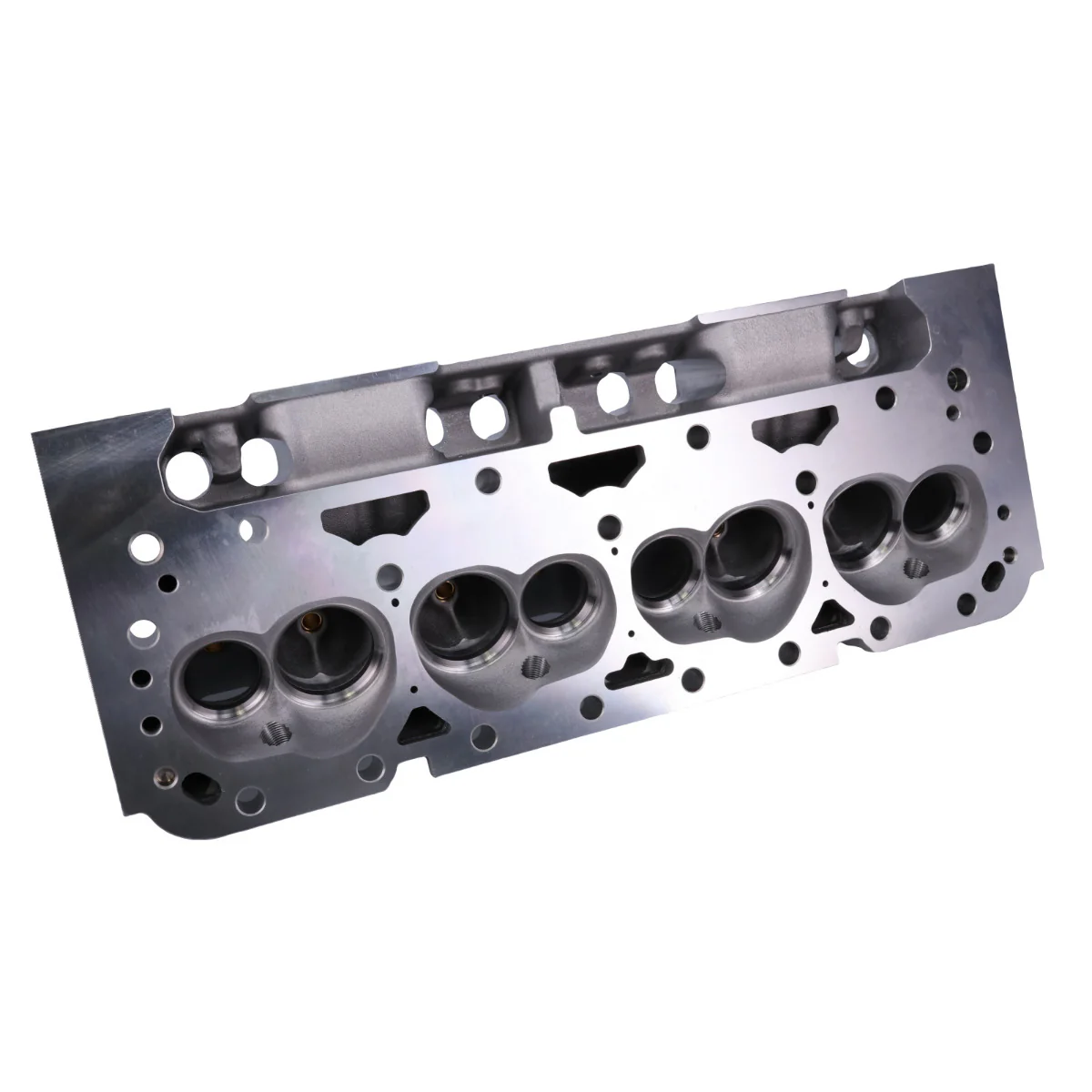

Chevy Small Block Angled Plug Aluminum Cylinder Head

Upgrade your Small Block Chevy with bare aluminum cylinder heads engineered to improve airflow, combustion efficiency, and horsepower potential. Featuring 198cc intake runners, 64cc combustion chambers, 2.02" intake / 1.60" exhaust valves, these heads are built for street, strip, and performance engine builds that need better breathing than stock castings.

Improved Airflow & Power Potential
Optimized runner and chamber design helps move more air through the engine, improving throttle response, torque, and top-end horsepower potential across the RPM range.

Bare Head Build Flexibility
Bare cylinder head configuration gives builders the flexibility to select valves, springs, retainers, and hardware matched to the exact camshaft, RPM range, and power goal.

Aluminum Construction
Lightweight aluminum construction reduces weight compared to factory iron heads while improving heat dissipation for more consistent performance under demanding conditions.

Built for Street & Performance Builds
Ideal for performance rebuilds, restorations, and upgraded engine combinations. Always verify piston-to-valve clearance, camshaft compatibility, intake manifold fit, and header clearance before final installation.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3L / 262 in³
• 4.3L / 265 in³
• 4.4L / 267 in³
• 4.6L / 283 in³
• 4.9L / 302 in³
• 5.0L / 305 in³
• 5.0L / 307 in³
• 5.4L / 327 in³
• 5.7L / 350 in³
• 6.6L / 400 in³

COMMON VEHICLE APPLICATIONS
Chevrolet Camaro (1967–1995 SBC equipped)
Chevrolet Chevelle (1964–1977 SBC)
Chevrolet Nova (1962–1979 SBC)
Chevrolet C10 / C/K Trucks (1960–1995 SBC)
Chevrolet Impala / Caprice (SBC equipped)

NOTES

Fits Gen I Small Block Chevy engines (1955–1995).

Fits perimeter-bolt valve covers and pre-Vortec intake manifolds.

Compatible with common SBC stroker builds (383 / 406).

Angle plug design may require compatible headers or spark plug wire routing for proper clearance.

Cylinder head sold individually (purchase quantity of 2 required for complete engine).

Verify intake manifold type, valve lift and spring requirements, and piston-to-valve clearance.

Not compatible with LT1 / LT4 Gen II engines, LS-based engines, or Big Block Chevy engines.

Specifications:
Intake Runner: 198 cc
Combustion Chamber Volume: 64 cc
Combustion Chamber Style: Heart
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Assembled: No
Intake Valve Size: 2.02"
Exhaust Valve Size: 1.60"
Valve Stem Diameter: 11/32"
Valve Guide Material: Bronze
Intake Port Size: 2.10" x 1.18"
Exhaust Port Size: 1.4" x 1.4"
Intake Port Shape: Rectangle
Exhaust Port Shape: Square
Intake Port Location: Standard
Exhaust Port Location: Standard
Maximum Spring Diameter: 1.625"
Exhaust Crossover: No
Spark Plug Style: Angled
Weight: 19 lbs (per head)
Quantity: Sold Individually
