$80.80The Story

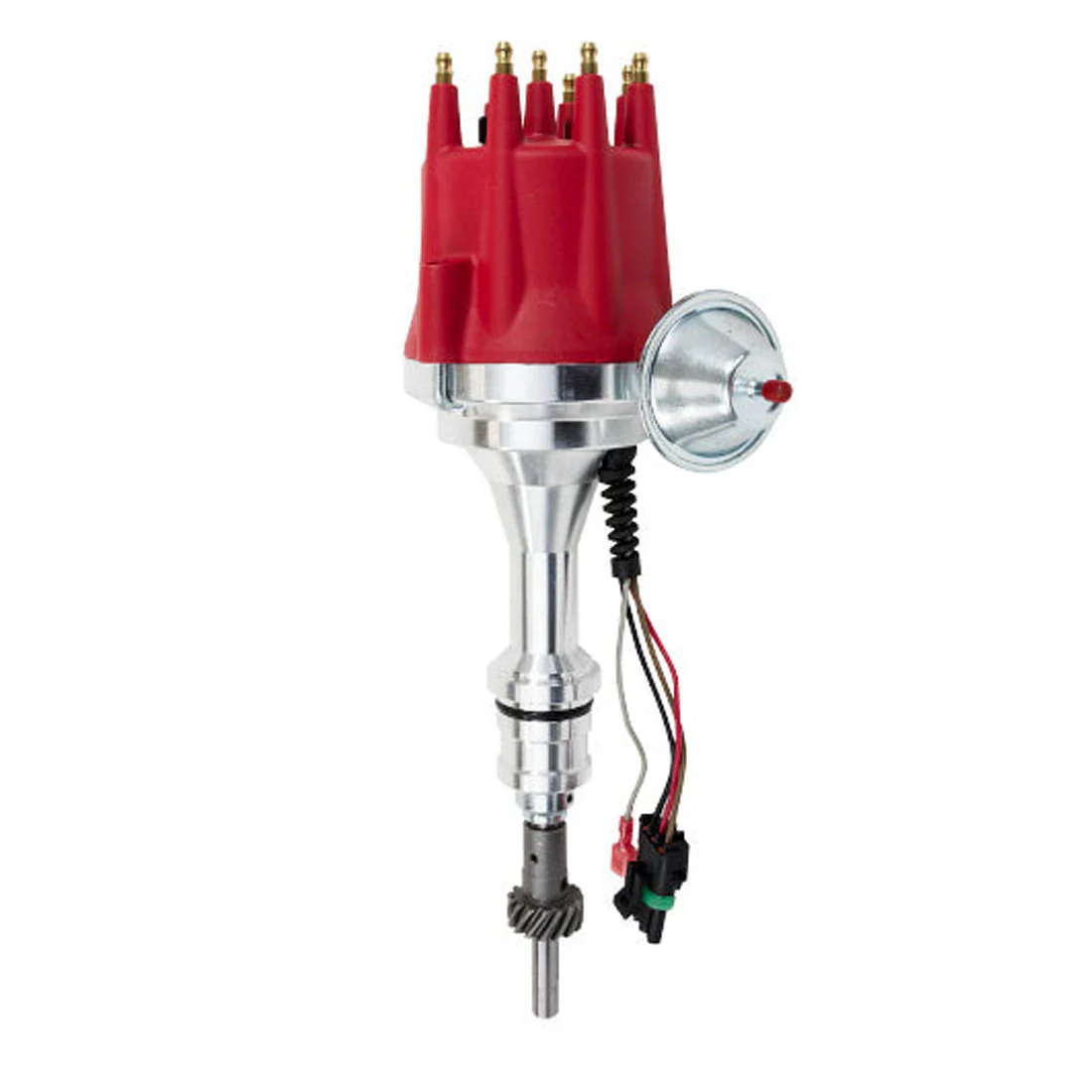

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer. So, if you're looking to switch that Fox Body 302 from EFI to carbureted, look no further for your ignition set-up.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.
Fully Adjustable Mechanical Advance

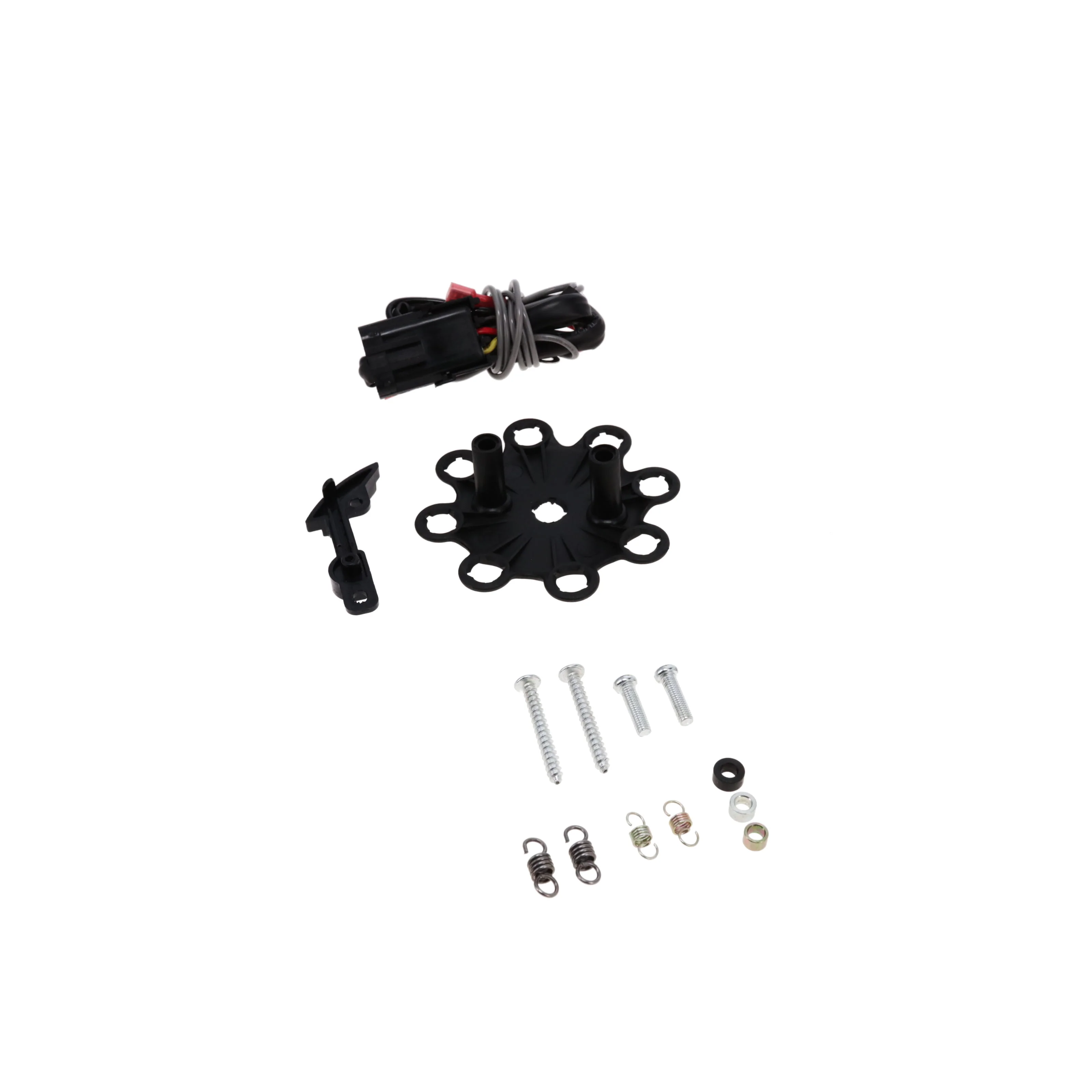

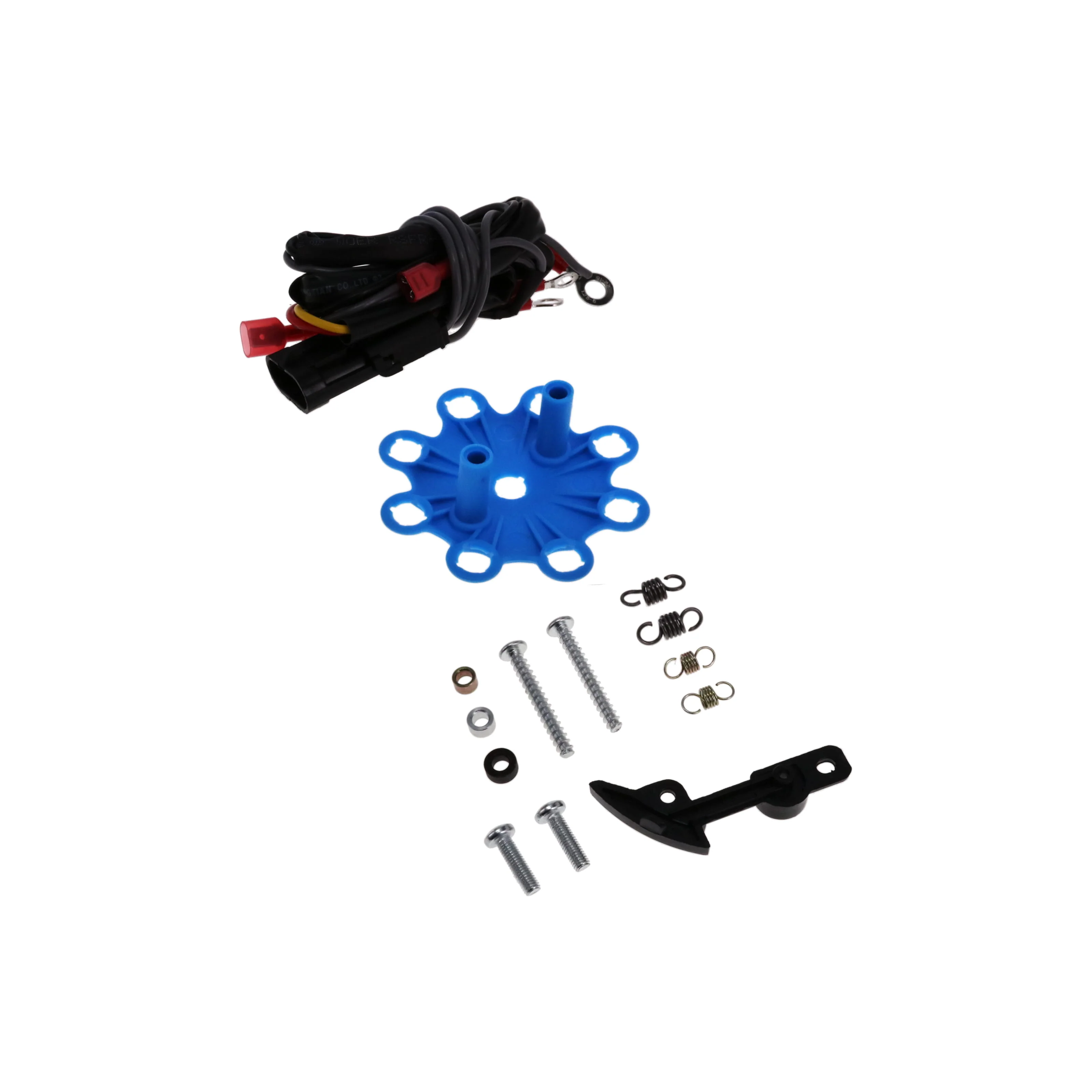

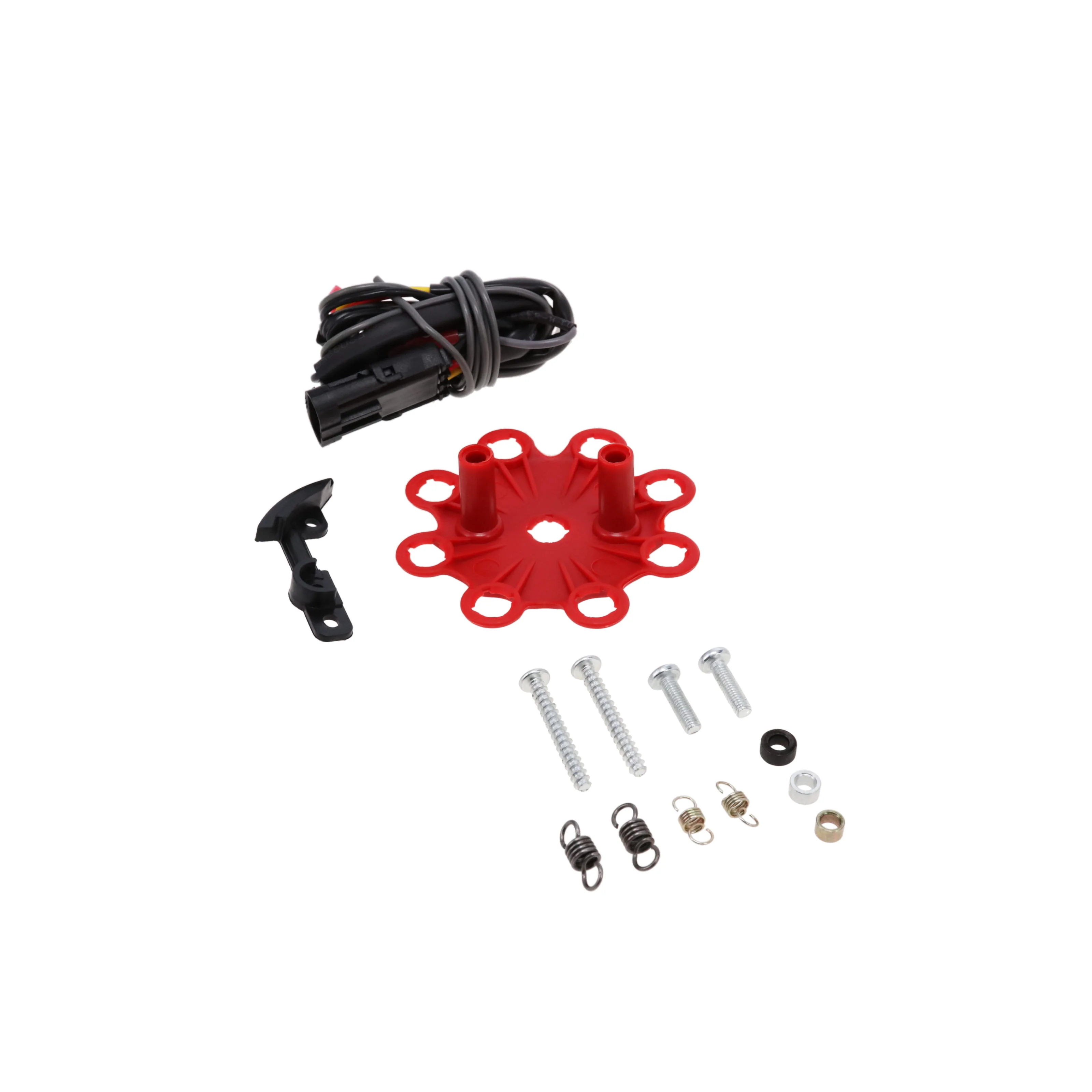

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
High-Output Circuit Board Module
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8 (EFI CONVERSION)
• 4.9L / 302 in³ (5.0L EFI engines only)
NOTES:
Fits Ford 5.0L (302ci) EFI small block Windsor engines being converted to carbureted ignition systems.
Not compatible with Ford 351 Windsor (351W) engines.
Not compatible with engines originally equipped with carburetors due to distributor gear length.
Designed for carbureted ignition systems only.
Requires 12-volt electrical system with alternator.
Distributor gear compatibility should be verified with camshaft material prior to installation.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer. So, if you're looking to switch that Fox Body 302 from EFI to carbureted, look no further for your ignition set-up.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.
Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
High-Output Circuit Board Module
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8 (EFI CONVERSION)
• 4.9L / 302 in³ (5.0L EFI engines only)
NOTES:
Fits Ford 5.0L (302ci) EFI small block Windsor engines being converted to carbureted ignition systems.
Not compatible with Ford 351 Windsor (351W) engines.
Not compatible with engines originally equipped with carburetors due to distributor gear length.
Designed for carbureted ignition systems only.
Requires 12-volt electrical system with alternator.
Distributor gear compatibility should be verified with camshaft material prior to installation.
