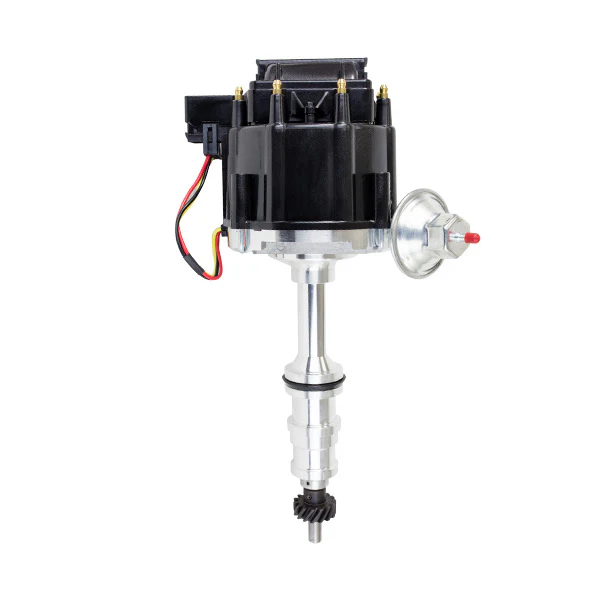

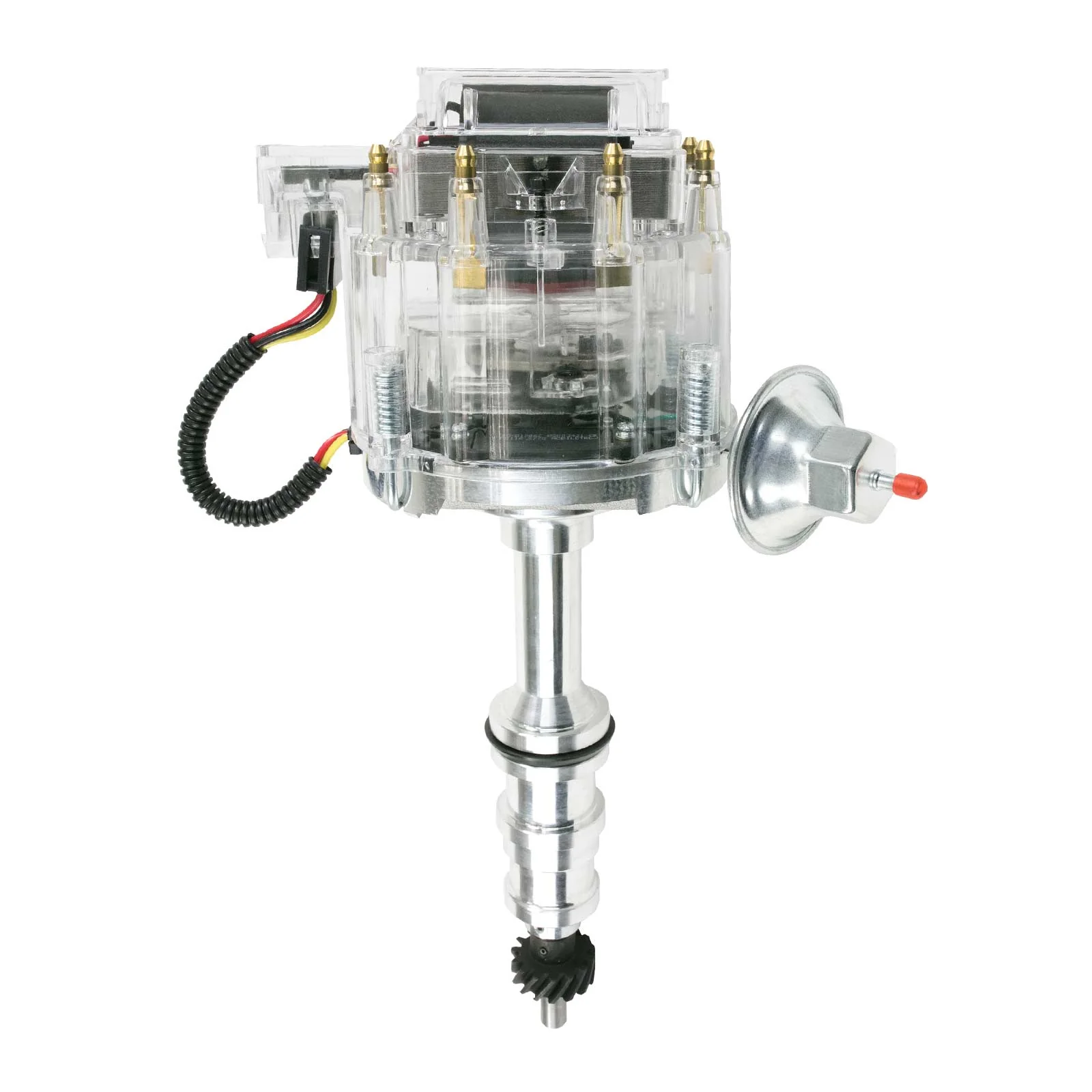

Ford FE V8 HEI Distributor

TSP’s HEI Distributor has everything you need, all under one cap. With a high-quality aluminum housing and hardened steel dual bushing construction, it is built to last. It features fully adjustable mechanical and vacuum advances, meaning precision is a breeze. It has a high-output module, high-spark 65,000 volt coil, solid brass terminals, and an easy one-wire hookup.

This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.

Compatible with:
FORD BIG BLOCK FE V8
• 5.4 L / 330 in3 light duty
• 5.8 L / 352 in3
• 5.9 L / 360 in3
• 6.4 L / 390 in3
• 6.7 L / 406 in3
• 6.7 L / 410 in3
• 7.0 L / 427 in3
• 7.0 L / 428 in3

NOTE: Will not fit heavy duty applications with 5/16" shaft

Specifications:
Trigger Type: Magnetic
Advance Type: Mechanical and Vacuum
Color: Available in Black, Blue, Red, Clear
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: Yes
Coil Type: Internal
Coil Output: 65000 V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
Vacuum Advance Adjustment Tool: Included
Installation Instructions: Included
