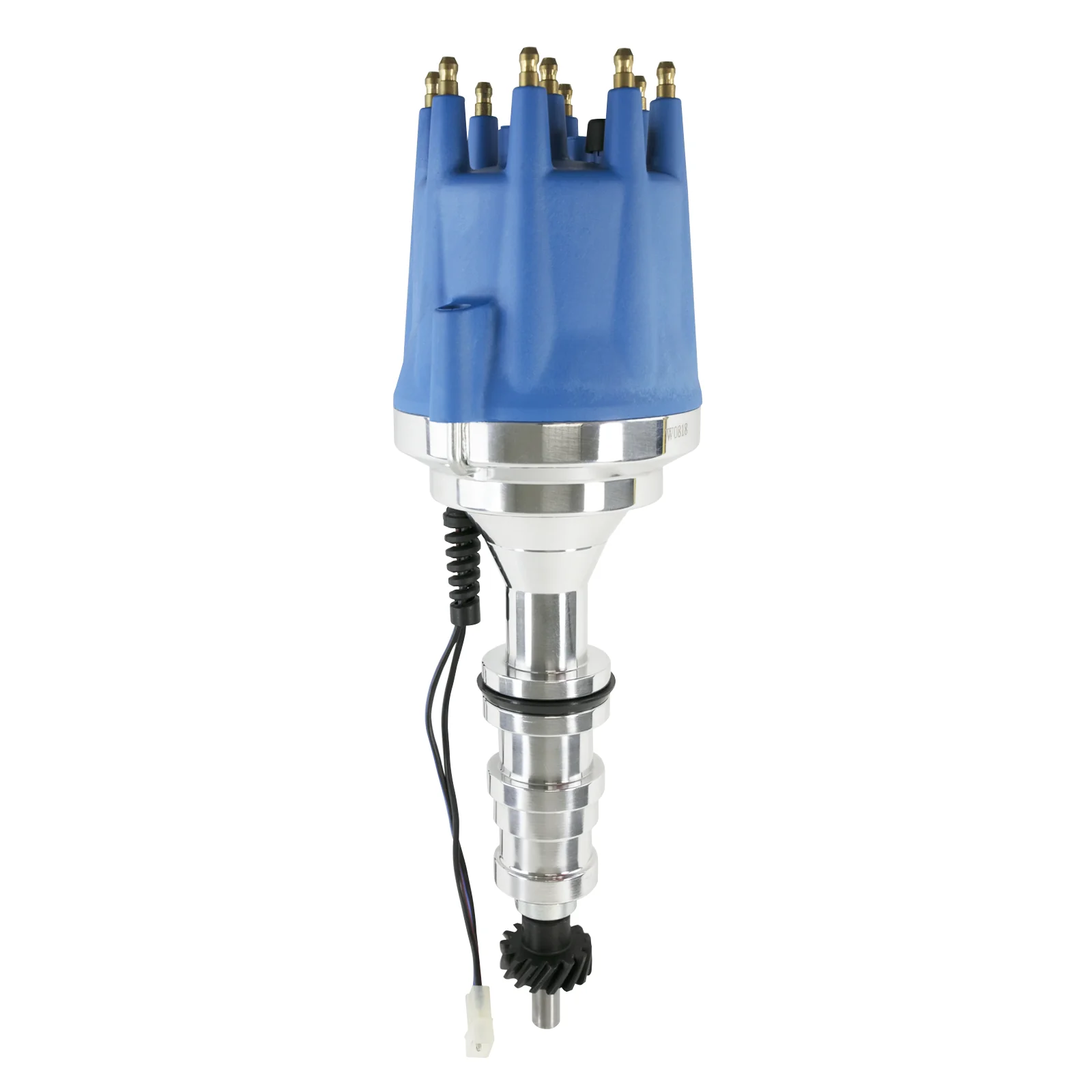

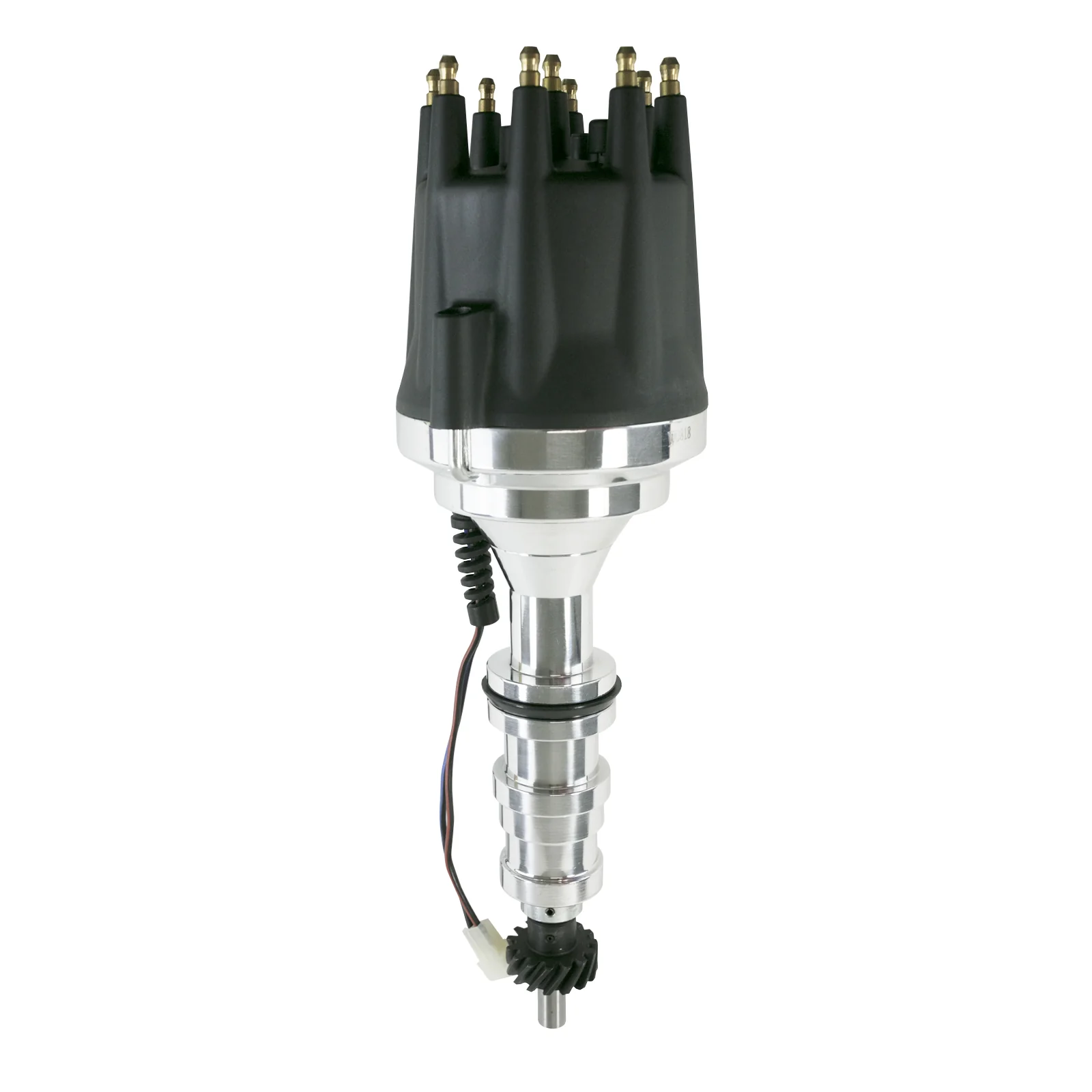

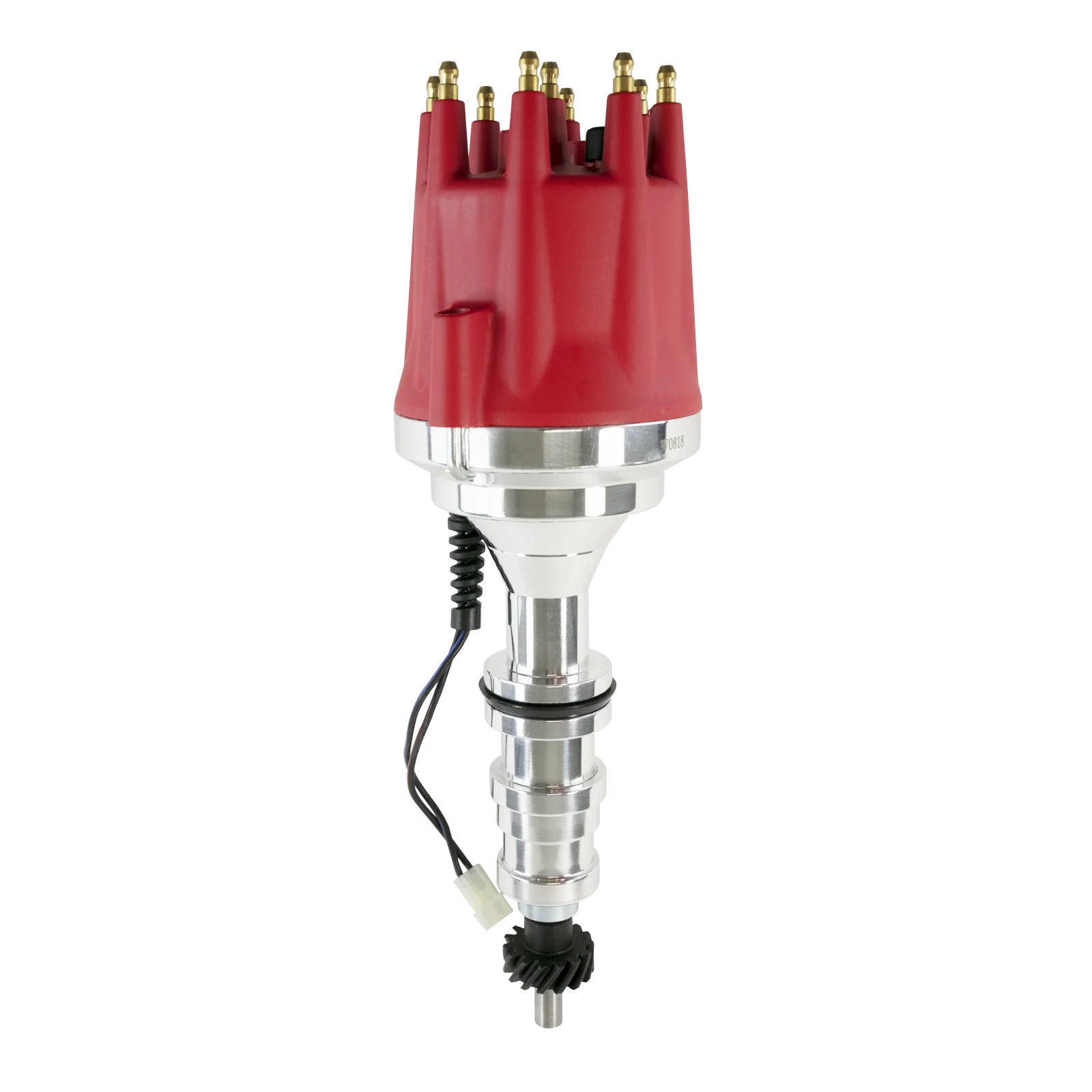

Ford FE V8 Pro Series Pro Billet Distributor

It's hard to ignore the increased popularity of the Ford FE engine in both restorations and swaps. TSP’s Pro Series Pro Billet Distributor is an excellent option for updating your ignition. It features a fully adjustable mechanical advance and a magnetic pick-up trigger for unbeatable precision. The billet aluminum body houses a hardened steel shaft guided by a sealed ball bearing on top and a sintered steel bushing on the bottom for consistent performance up to 10,000 RPM. As an added benefit, this distributor can be locked out and features brass terminals and a wire retainer.

This distributor is designed for a 12-volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

Compatible with:
FORD BIG BLOCK FE V8
• 5.4 L / 330 in3 commonly referred to as "FT"
• 5.8 L / 352 in3
• 5.9 L / 360 in3
• 6.4 L / 390 in3
• 6.7 L / 406 in3
• 6.7 L / 410 in3
• 7.0 L / 427 in3
• 7.0 L / 428 in3

Specifications:
TRIGGER STYLE: Magnetic
ADVANCE TYPE: Mechanical
CAP STYLE: Male
MECHANICAL TACH DRIVE: No
SLIP COLLAR: Yes
COIL INCLUDED: No
COIL TYPE: External
COIL OUTPUT: 35,000+ Volt Recommended
GEAR MATERIAL: Steel
HOUSING MATERIAL: Machined Aluminum
IGNITION BOX REQUIRED: Yes
MARINE USE: No
CYLINDERS: 8
INCLUDED: 3 Bushings and 4 Springs for Mechanical AdvanceColor-Matched Spark Plug Wire Retainer with Screws
