The Story

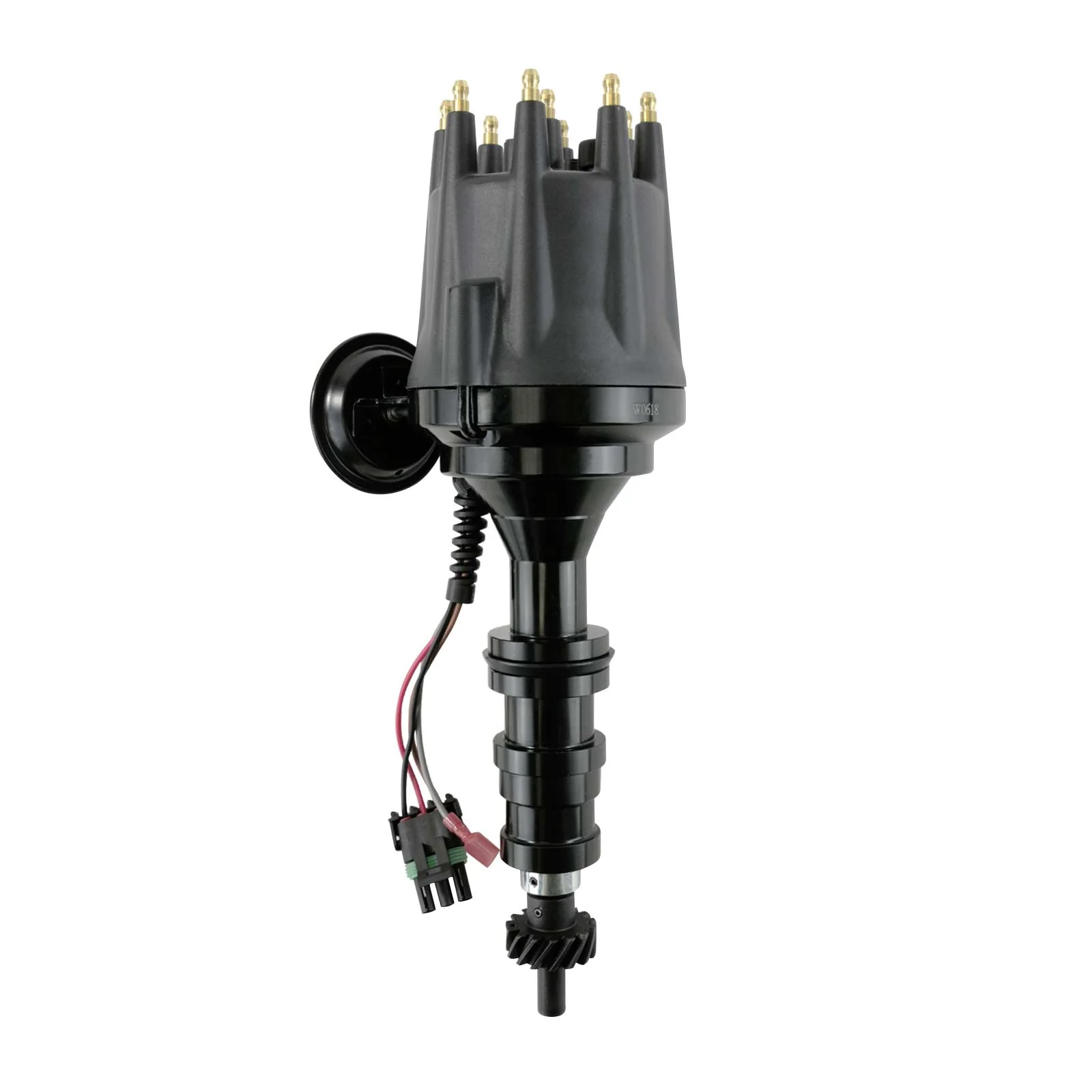

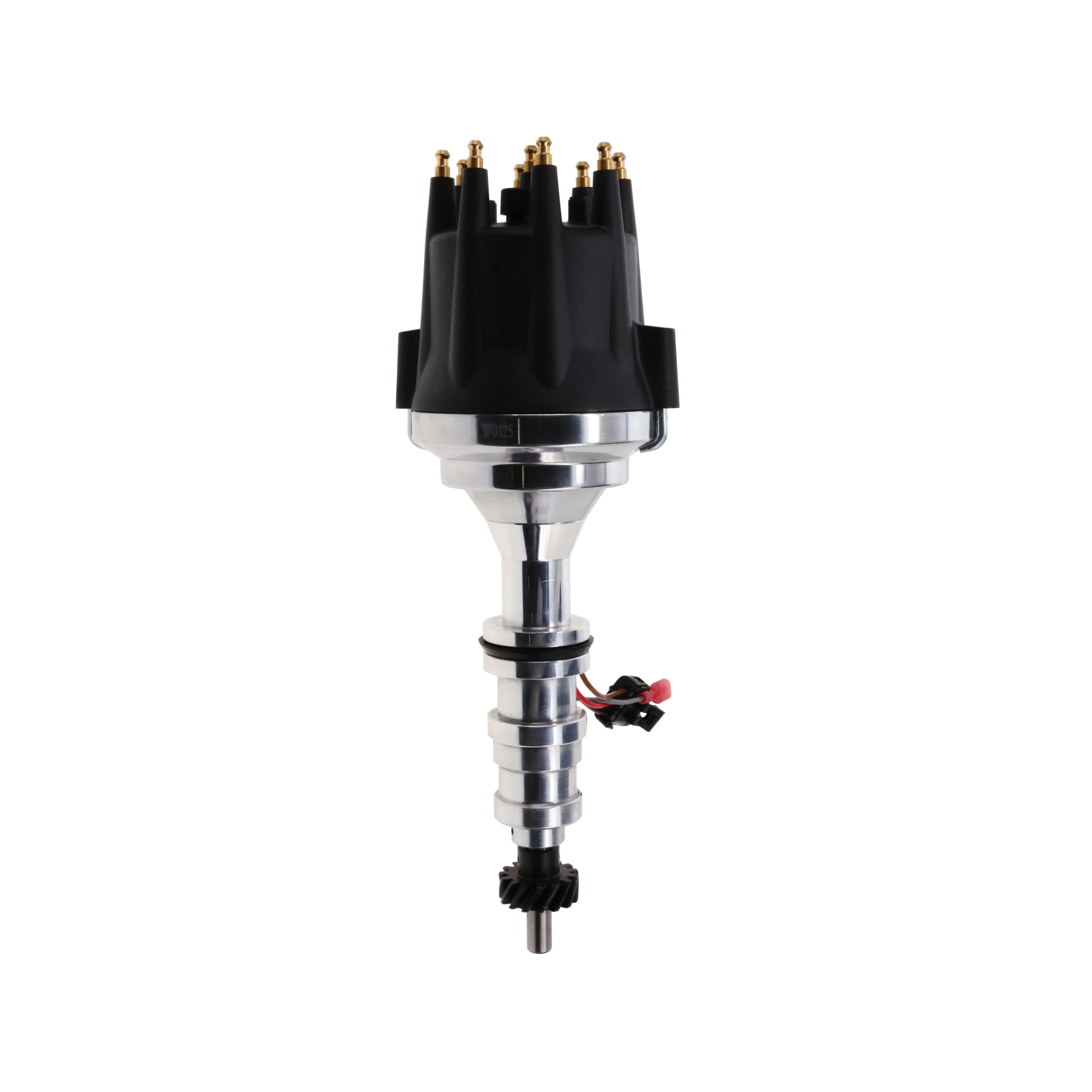

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.
This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.
COMPATIBLE WITH
FORD FE BIG BLOCK V8 (CARBURETED APPLICATIONS)
• 5.4L / 330 in³
• 5.8L / 352 in³
• 5.9L / 360 in³
• 6.4L / 390 in³
• 6.7L / 406 in³
• 6.7L / 410 in³
• 7.0L / 427 in³
• 7.0L / 428 in³
NOTES:
Fits Ford FE big block V8 engines (330–428).
Designed for carbureted ignition systems only.
Not compatible with Ford 385 series big block engines (429, 460).
Ready-to-run distributor with built-in ignition module — no external ignition box required.
Requires 12-volt electrical system with alternator.
Distributor gear compatibility should be verified with camshaft material prior to installation.
Specifications:Trigger Type: Circuit Board Module with Magnetic Pick-Up
Distributor Rotation: Counter-Clockwise
Advance Type: Mechanical and Vacuum
Cap Color: Available in Black, Blue, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Type: No
Coil Output: External
Required Coil Output: 35,000+ V
Required Electrical Setup: 12 With Alternator V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8

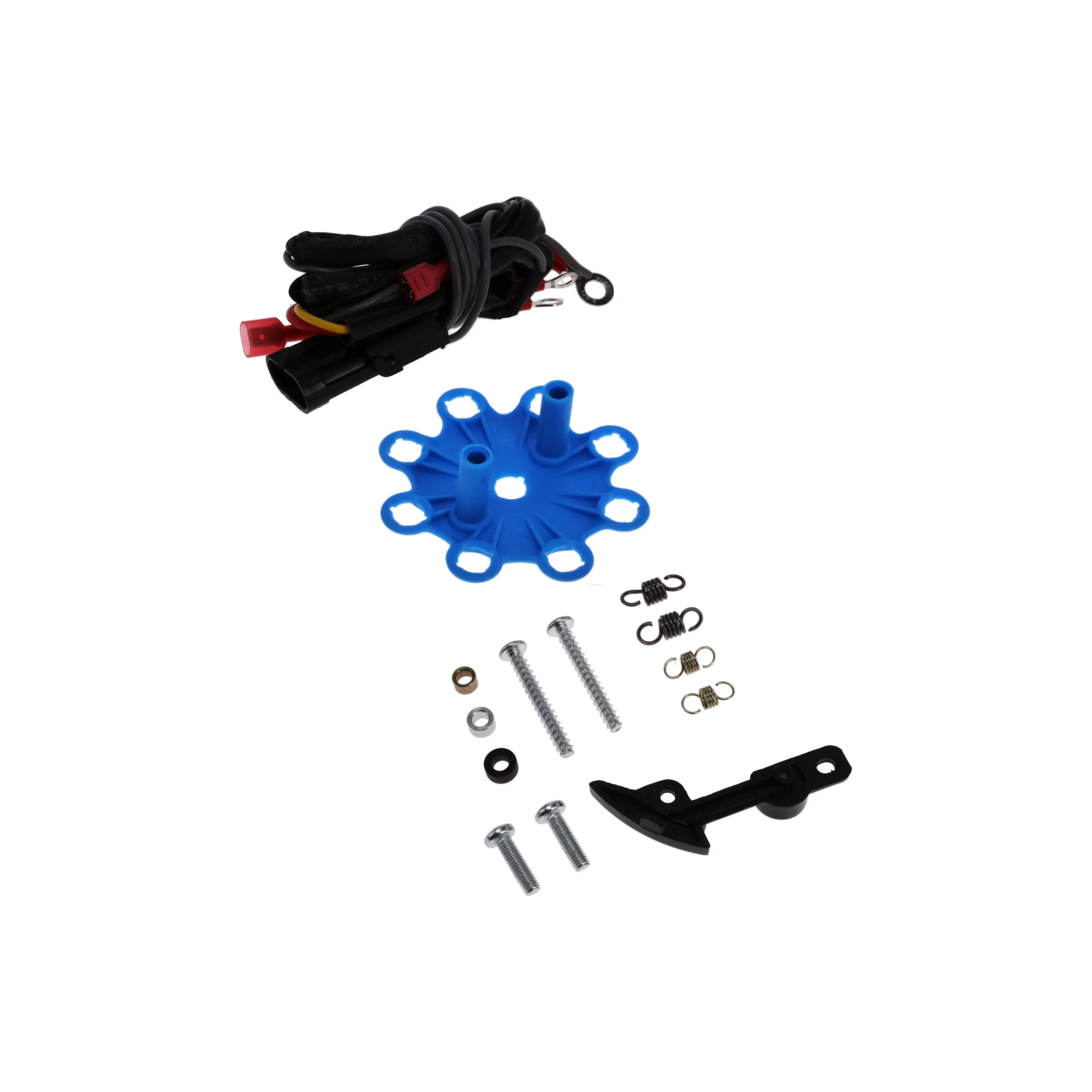

3 Bushings And 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
Vacuum Advance Block-Off Plate (Black): Included
Power Extension Cable: Included
Tachometer Output Extension Cable: Included
