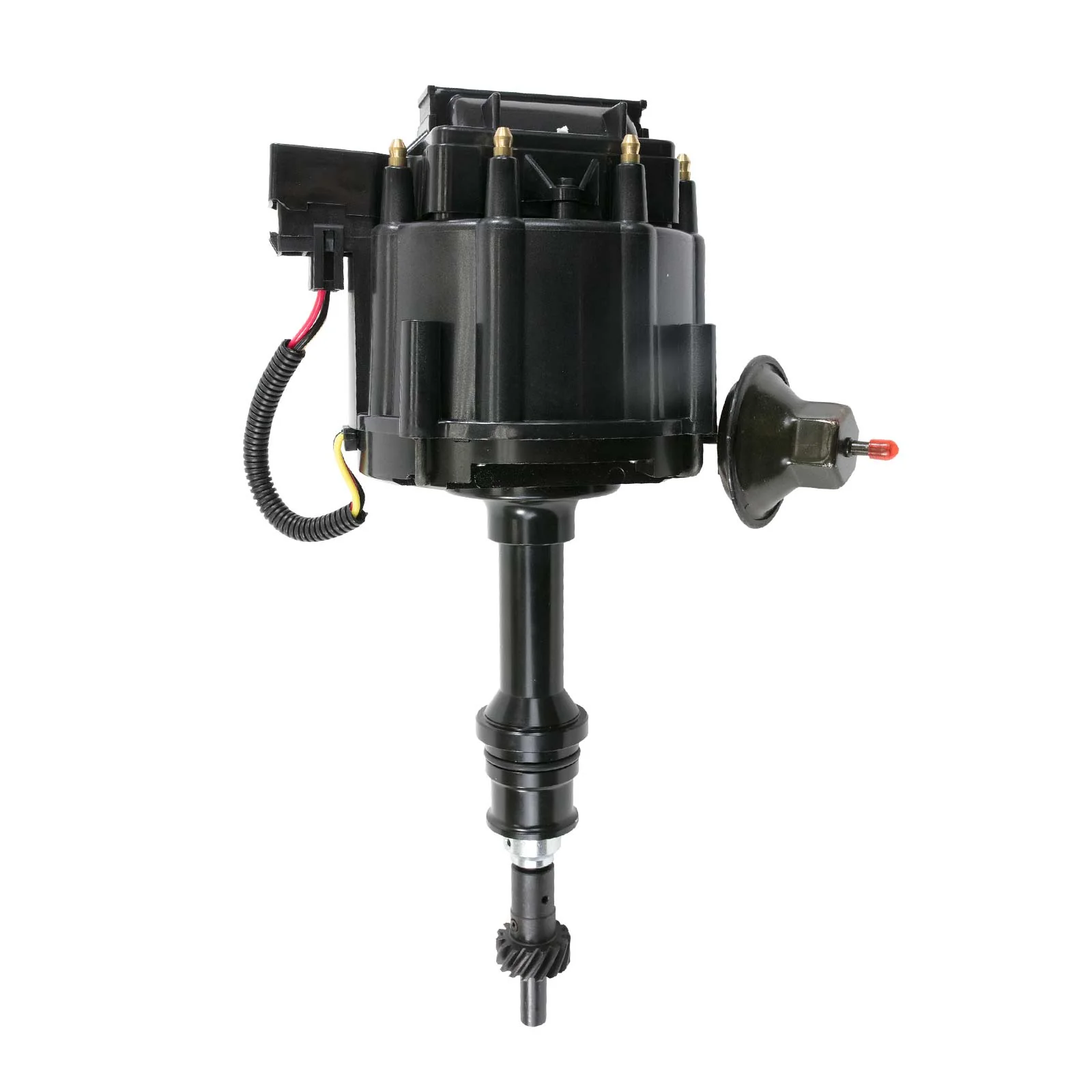

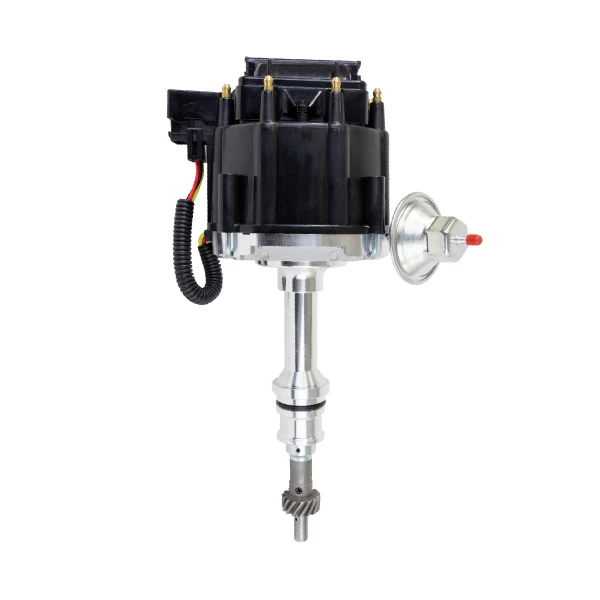

Ford SB 289/302 V8 HEI Distributor

TSP’s HEI Distributor has everything you need, all under one cap. With a high-quality aluminum housing and hardened steel dual bushing construction, it is built to last. It features fully adjustable mechanical and vacuum advances, meaning precision is a breeze. It has a high-output module, high-spark 65,000 volt coil, solid brass terminals, and an easy one-wire hookup.

This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.

Compatible with:
FORD SMALL BLOCK WINDSOR V8
• 3.6 L / 221 in3
• 4.3 L / 260 in3
• 4.7 L / 289 in3
• 4.9 L / 302 in3 generally referred to as 5.0 L

NOTE: Will not fit 351W.
Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.

Specifications:
Trigger Type: Magnetic
Advance Type: Mechanical and Vacuum

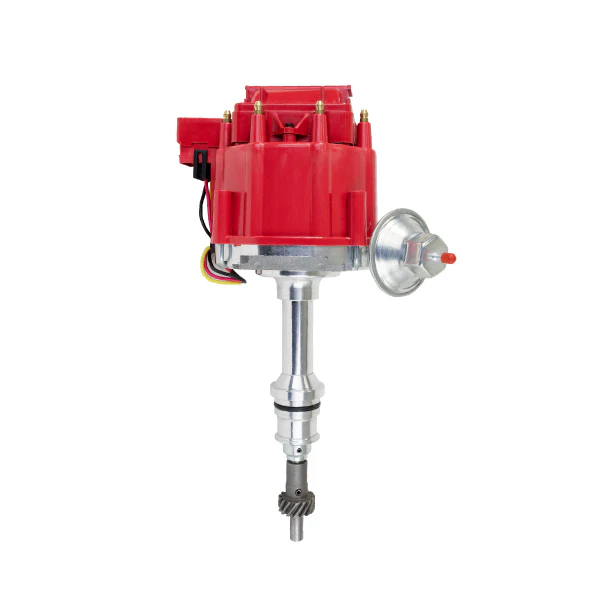

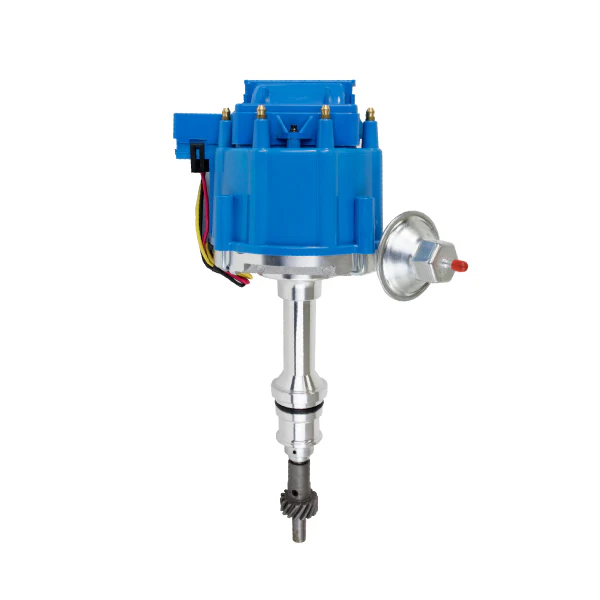

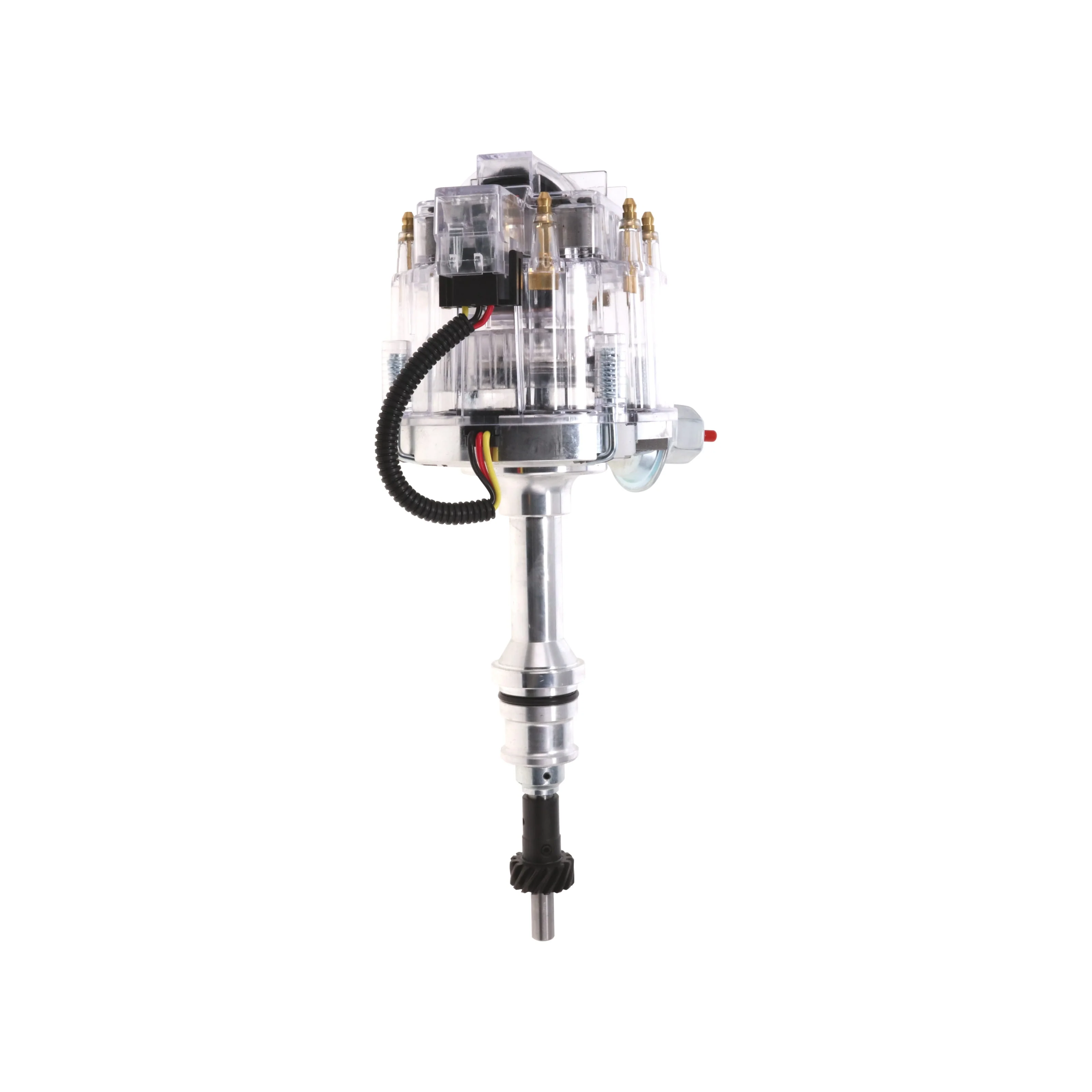

Color: Available in Black, Blue, Red, Clear
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: Yes
Coil Type: Internal
Coil Output: 65000 V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
Vacuum Advance Adjustment Tool: Included
Installation Instructions: Included
