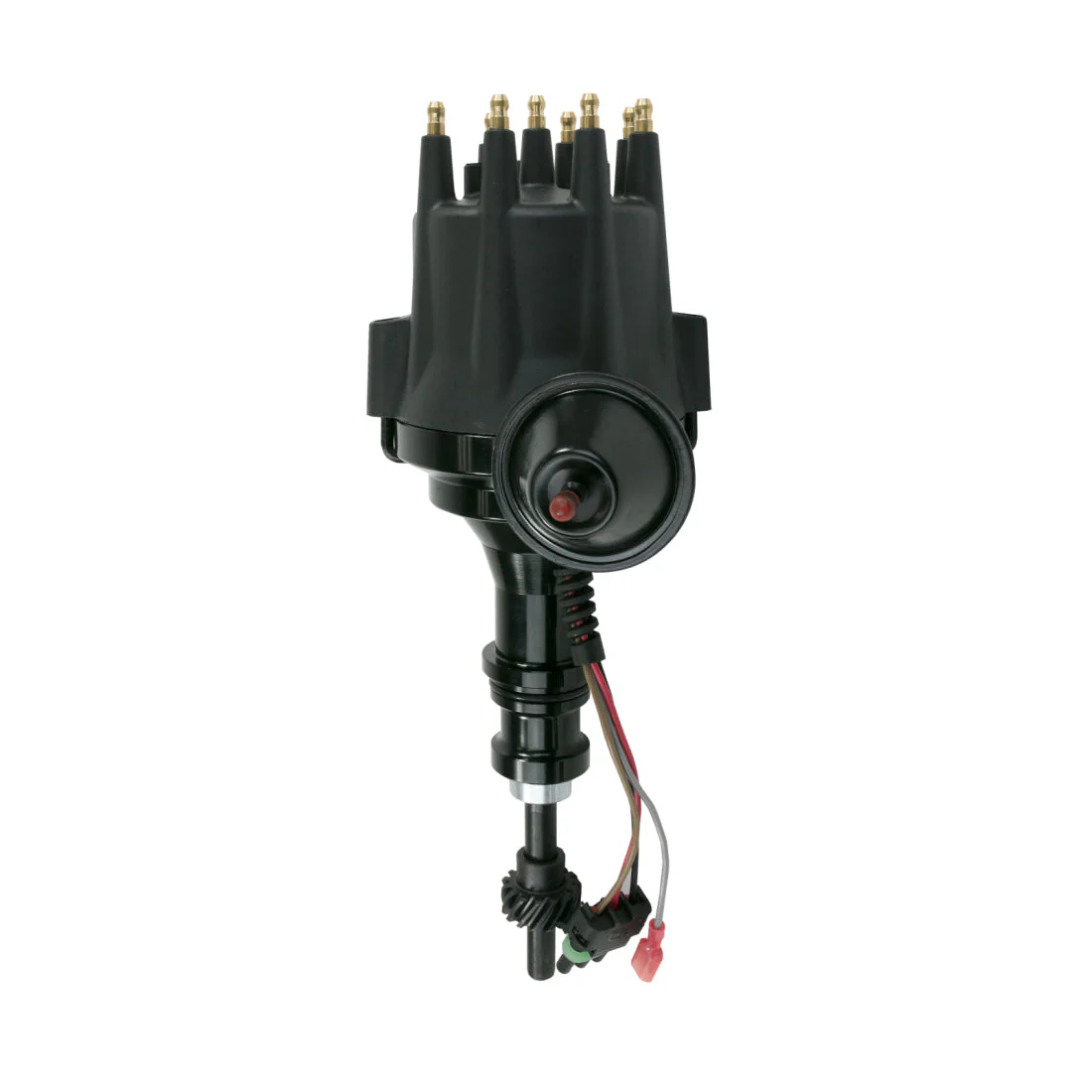

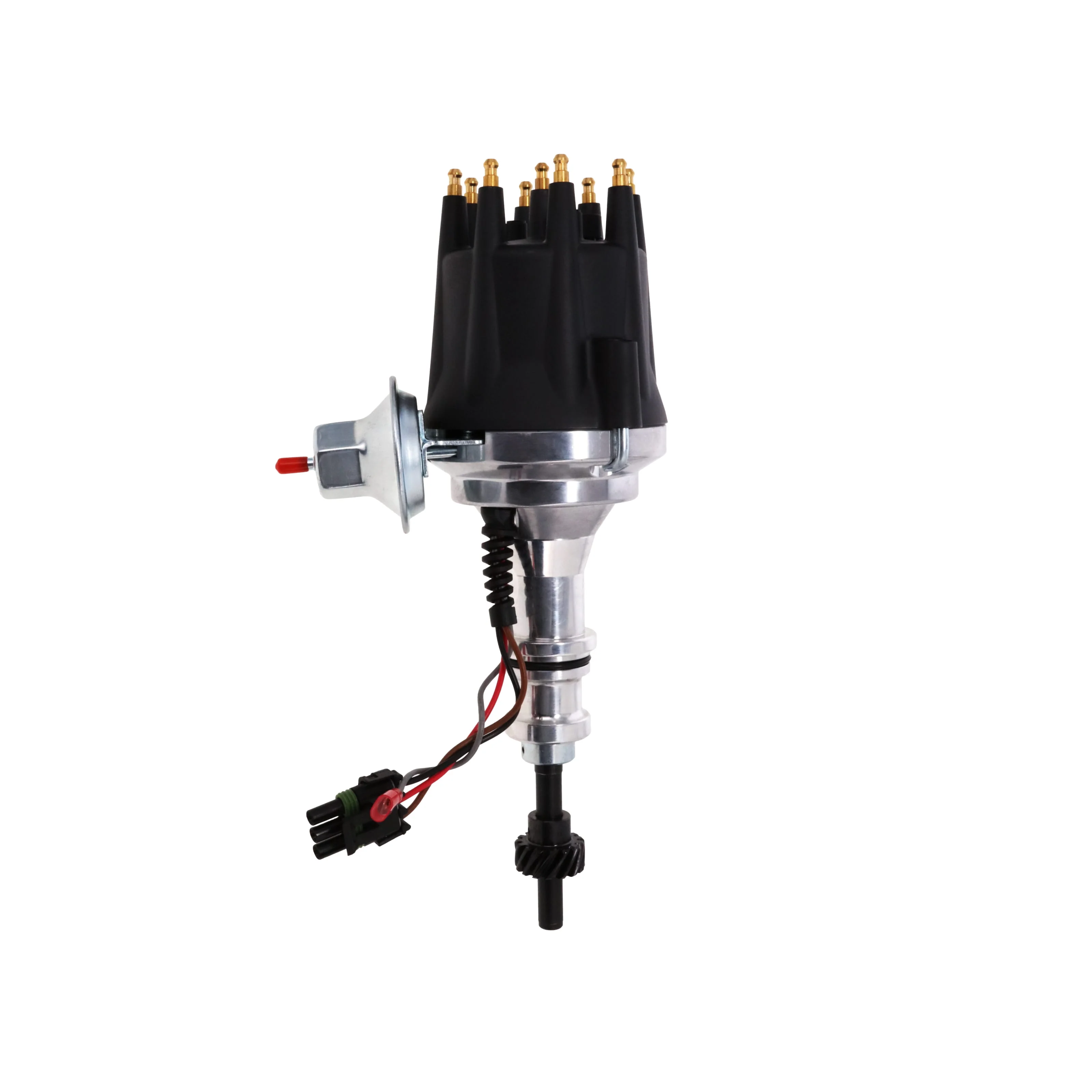

Ford SB 289/302 V8 Pro Series Ready to Run Distributor

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.

Fully Adjustable Mechanical Advance
An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

High-Output Circuit Board Module
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8 (CARBURETED APPLICATIONS)
• 4.7L / 289 in³
• 4.9L / 302 in³

NOTES:
Fits Ford small block Windsor V8 engines (289 and 302).

Designed for carbureted ignition systems only.

Not compatible with EFI-equipped engines requiring EFI-specific distributors.

Not compatible with Ford 351 Windsor (351W) engines.

Requires 12-volt electrical system with alternator.

Internal ignition module eliminates the need for an external ignition box.

Distributor gear compatibility should be verified with camshaft material prior to installation.

Specifications:
Trigger Style: Circuit Board Module with Magnetic Pick-up
Advance Type: Mechanical and Vacuum
Cap Style: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Recommended Coil Output: 35,000+ Volts
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8

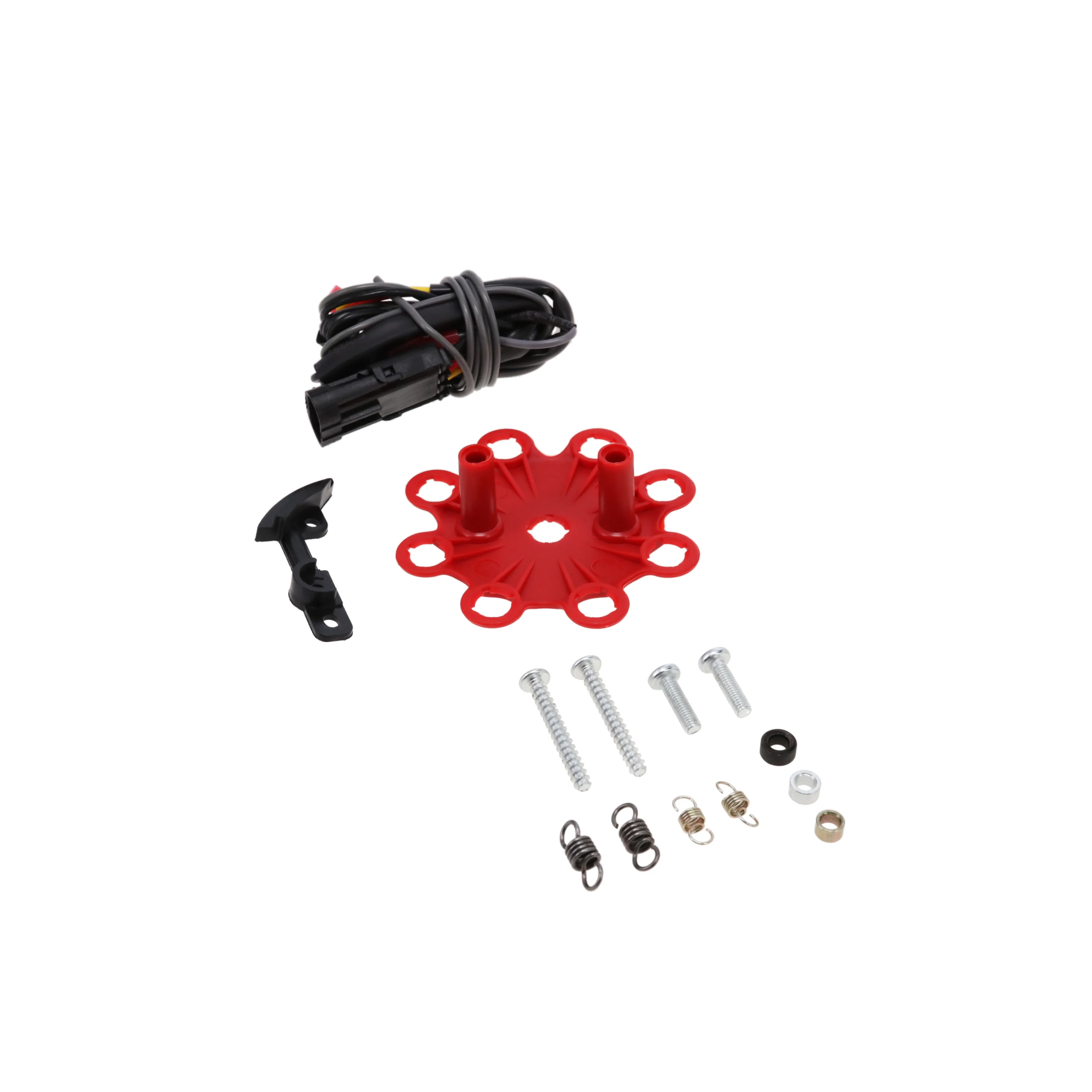

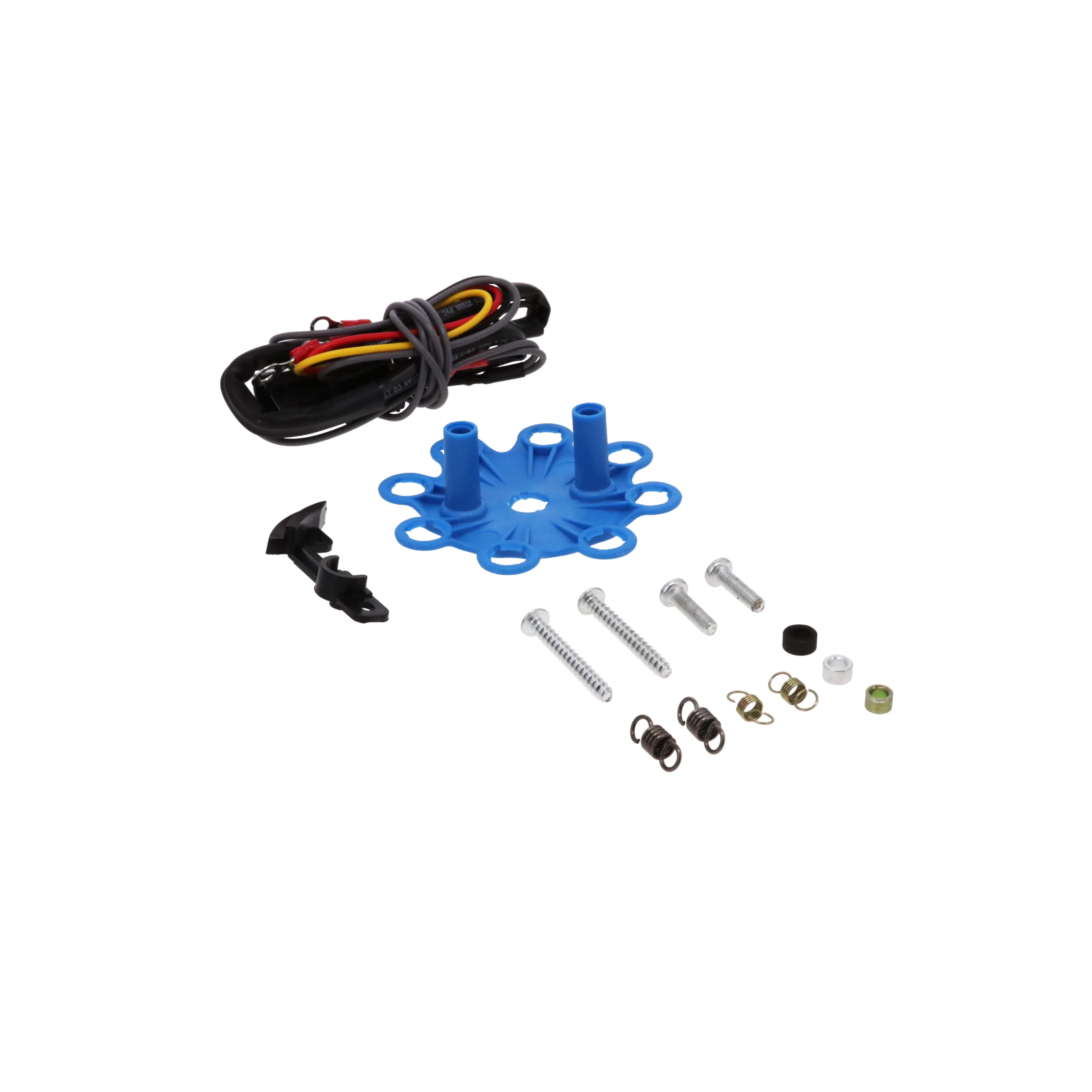

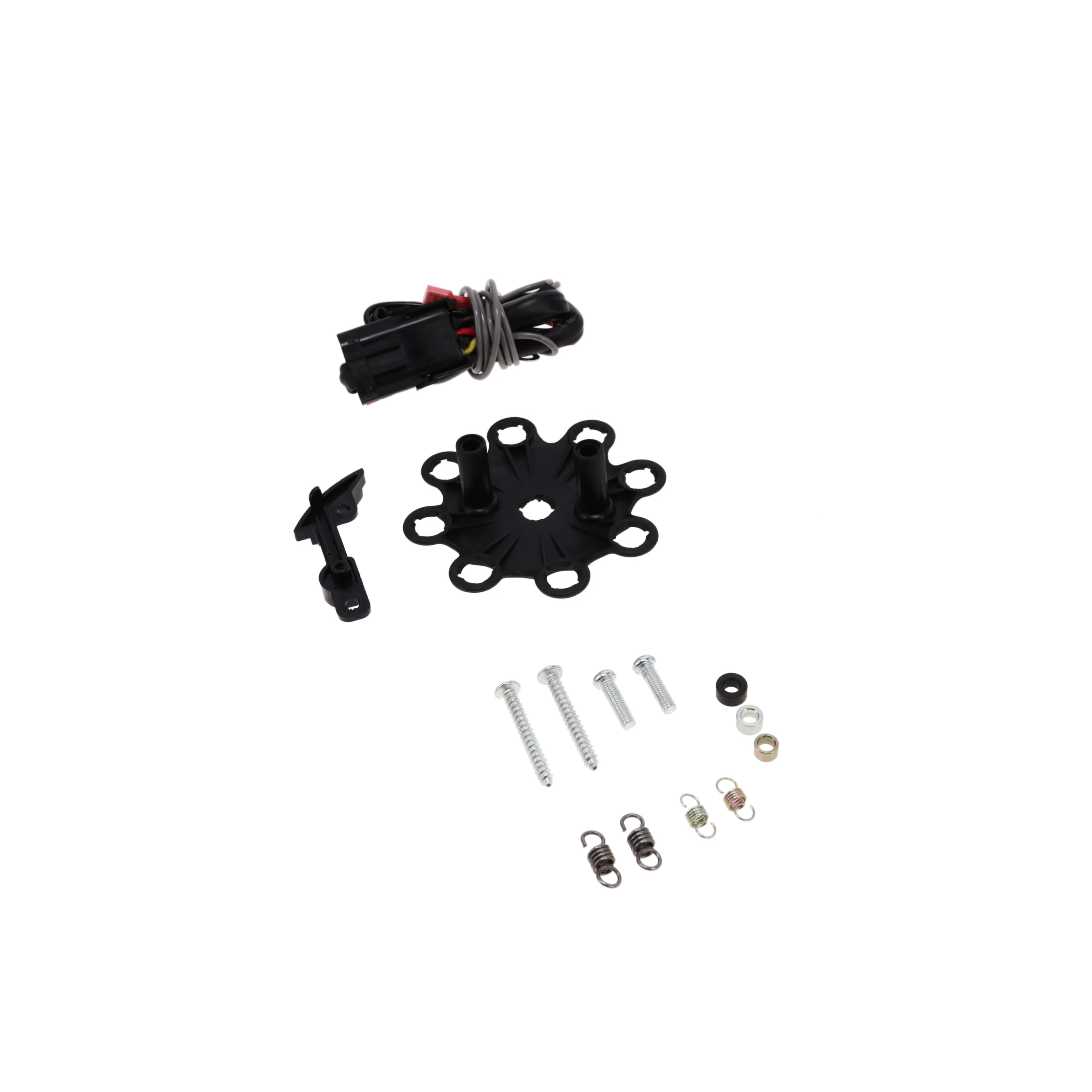

Included: 3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws Vacuum Advance Block-off Plate (Black) Power Extension Cable Tachometer Output Extension Cable
