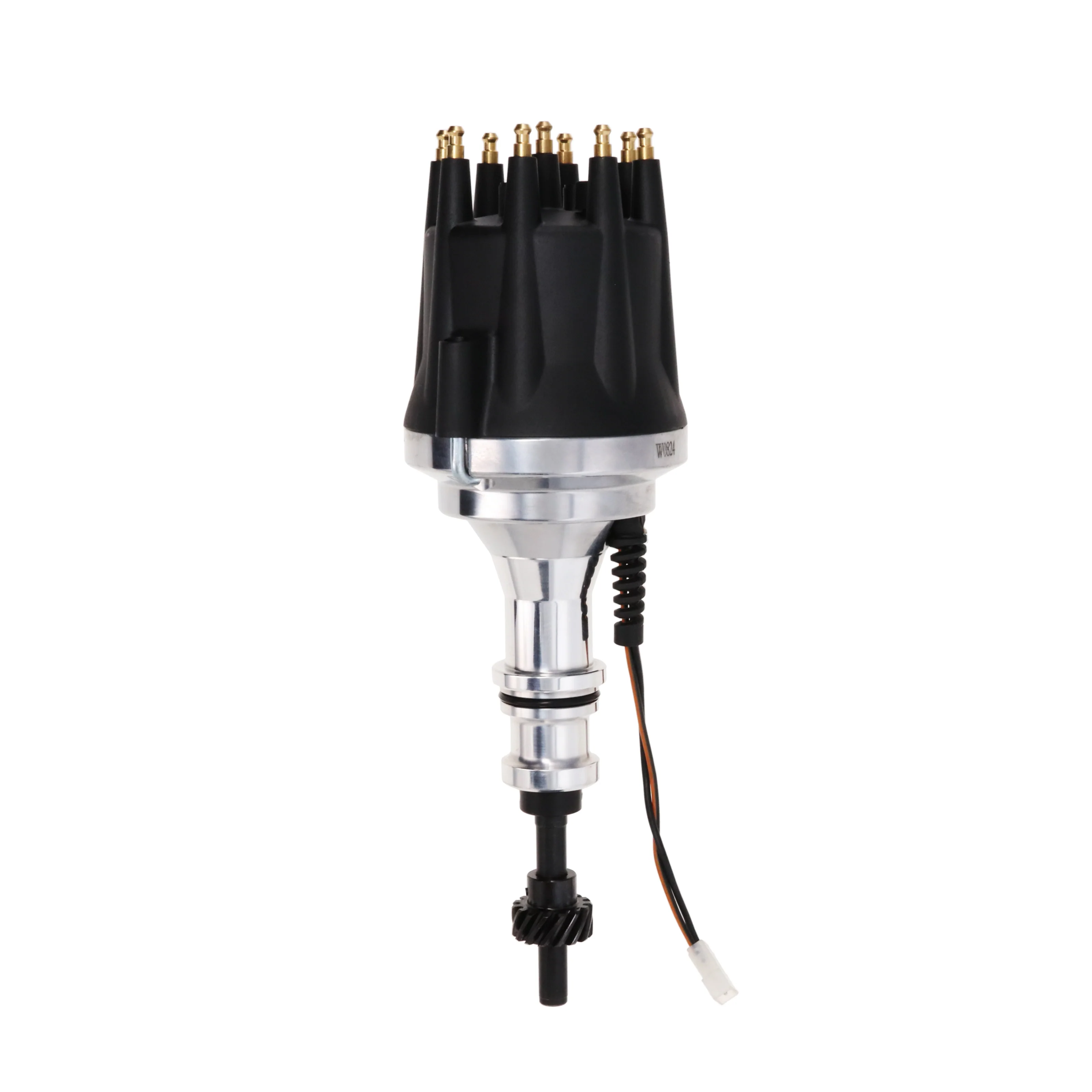

Ford Small Block 289/302 V8 Pro Series Pro Billet Distributor

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals, a slip collar, and a color-matched wire retainer.

This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

Compatible with:
FORD SMALL BLOCK WINDSOR V8
• 3.6 L / 221 in3
• 4.3 L / 260 in3
• 4.7 L / 289 in3
• 4.9 L / 302 in3 generally referred to as 5.0 L

NOTE: Will not fit 351W

Specifications:
Trigger Type: Magnetic
Advance Type: Mechanical
Cap Color: Available in Black, Blue, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Coil Output: 35,000+ V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8

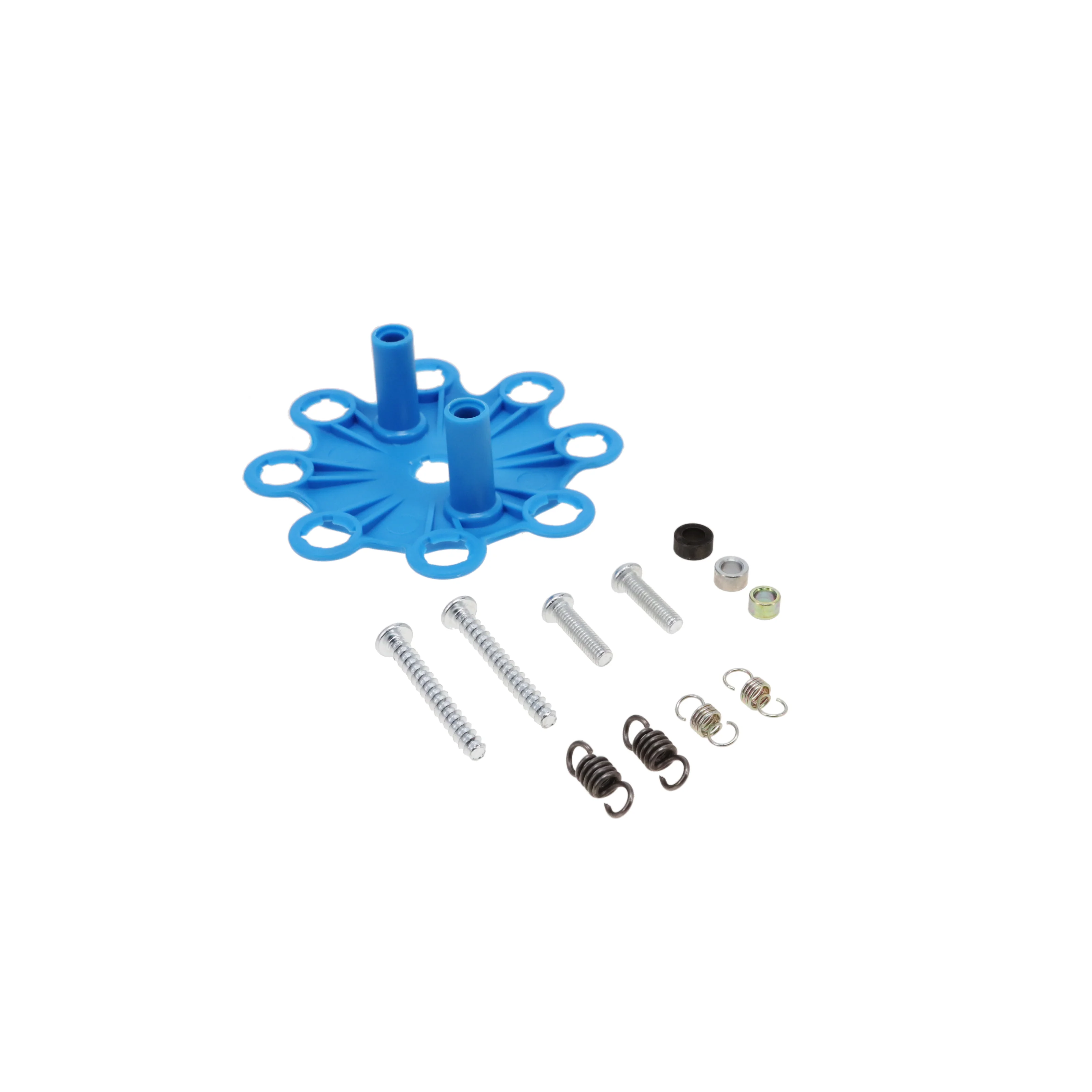

3 Bushings And 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
