Pontiac V8 Pro Series Ready to Run Distributor

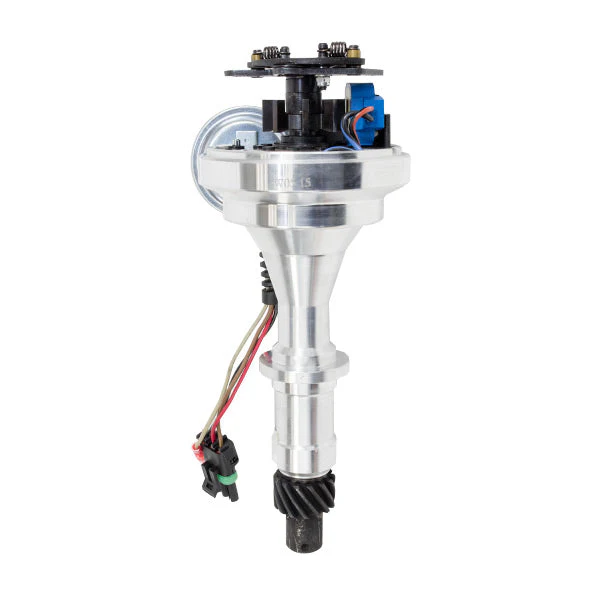

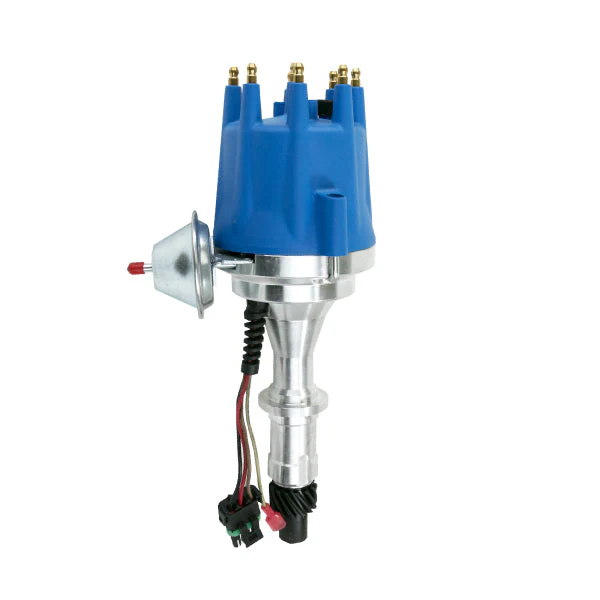

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

This distributor is designed for a 12-volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor.

COMPATIBLE WITH
PONTIAC V8 (326–455)
• 5.3L / 326 in³
• 5.7L / 350 in³
• 6.4L / 389 in³
• 6.6L / 400 in³
• 6.9L / 421 in³
• 7.0L / 428 in³
• 7.5L / 455 in³

NOTES:

Fits Pontiac V8 engines (326–455).

May also fit select Pontiac 301 V8 applications (1977–1979); verify compatibility prior to installation.

Designed for carbureted ignition systems only.

Not compatible with EFI distributor systems or non-Pontiac engine platforms.

Requires 12-volt electrical system with alternator.

Distributor gear compatibility should be verified with camshaft material prior to installation.

Specifications:
Trigger Type: Circuit Board Module with Magnetic Pick-Up
Distributor Rotation: Counter-Clockwise

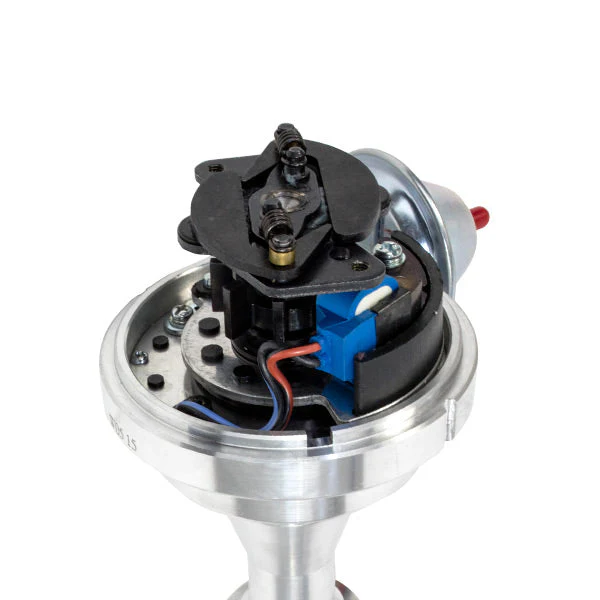

Advance Type: Mechanical and Vacuum
Cap Color: Available in Black, Blue, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Type: No
Coil Output: External
Required Coil Output: 35,000+ V
Required Electrical Setup: 12 With Alternator V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8

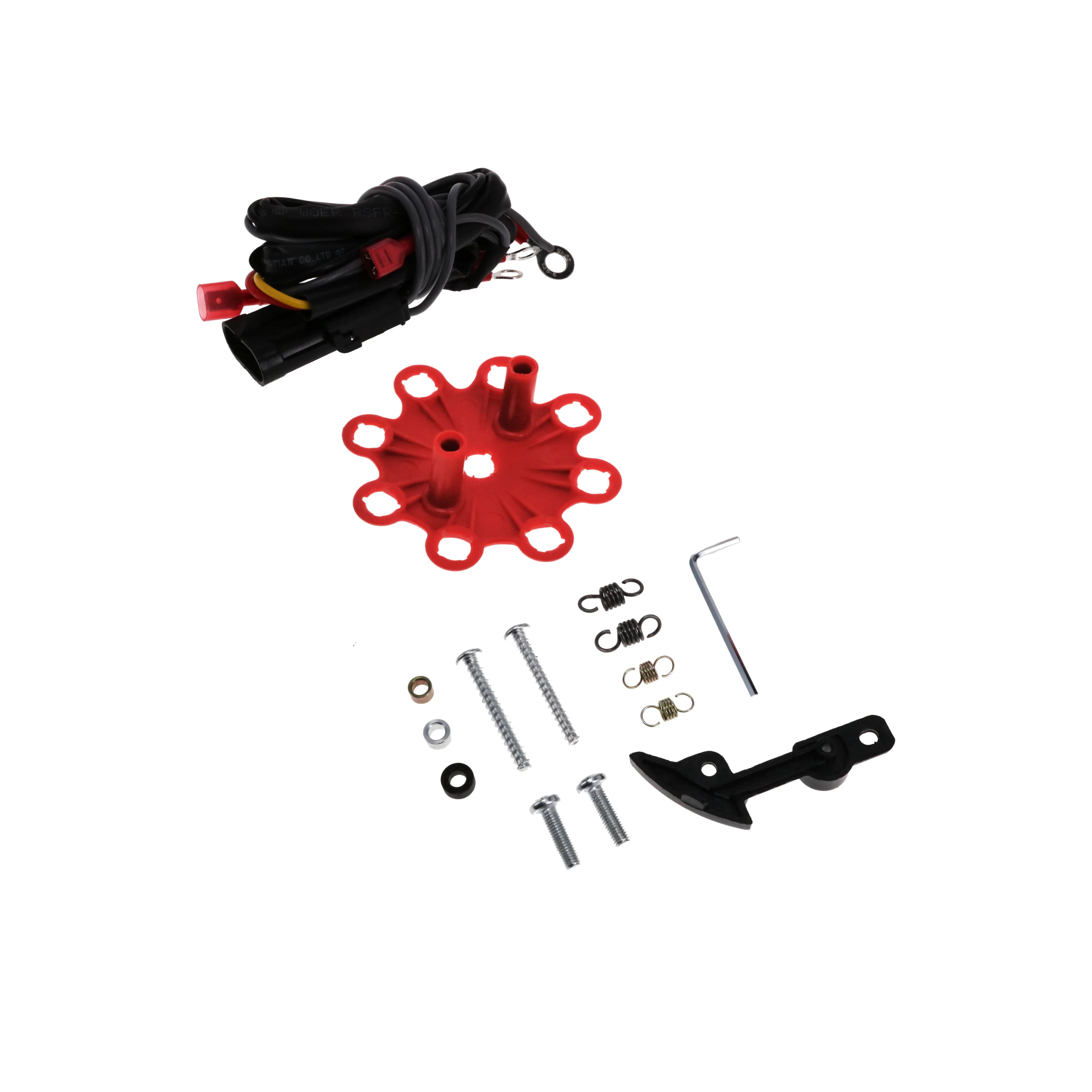

3 Bushings And 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
Vacuum Advance Block-Off Plate (Black): Included
Power Extension Cable: Included
Tachometer Output Extension Cable: Included
