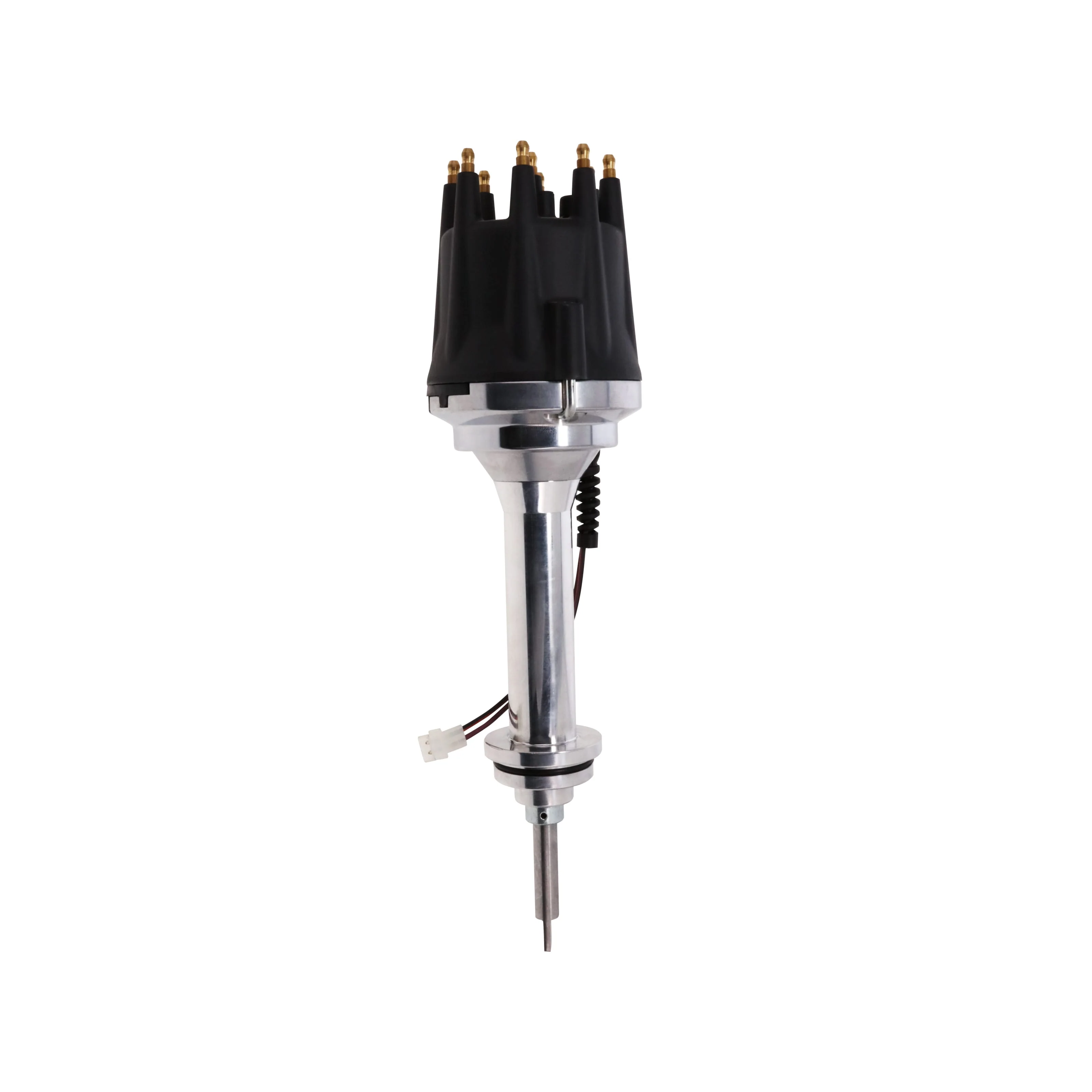

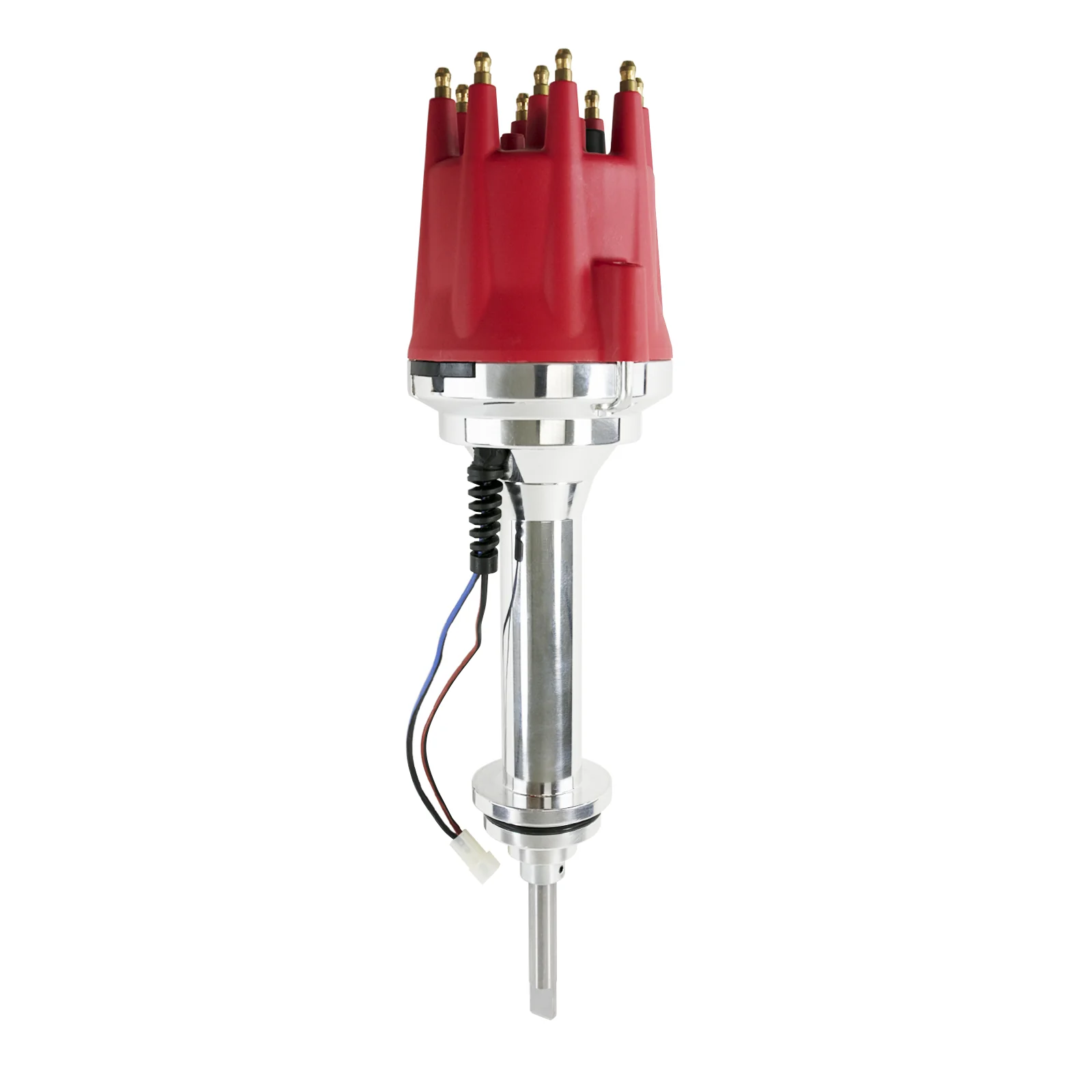

Chrysler BB 413-440 V8 Pro Series Pro Billet Distributor

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.

This distributor is designed for a 12 volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

Compatible with:
CHRYSLER BIG BLOCK "RB" V8
• 6.8 L / 413 in3
• 7.0 L / 426 in3 commonly referred to as "426 Wedge"
• 7.2 L / 440 in3

CHRYSLER HEMI V8 GEN. II
• 426 in3

NOTE: Due to cap and housing diameter, may not fit with some fabricated valve covers

Specifications:
Trigger Type: Magnetic
Advance Type: Mechanical
Cap Color: Available in Black or Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Coil Output: 35,000+ V
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
3 Bushings And 4 Springs For Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer With Screws: Included
